100W Selectable LED Post Top Light — Type V
White
$351.00
Sale price
$351.00
Regular price
Skip to product information
SKU
PST16/100S/T5/8C3/WH-Z10
100W Selectable LED Post Top Light — Type V
$351.00
Sale price
$351.00
Regular price
Retail Price
Contractor Price
(Log in to view contractor pricing)
Qty
Downloads

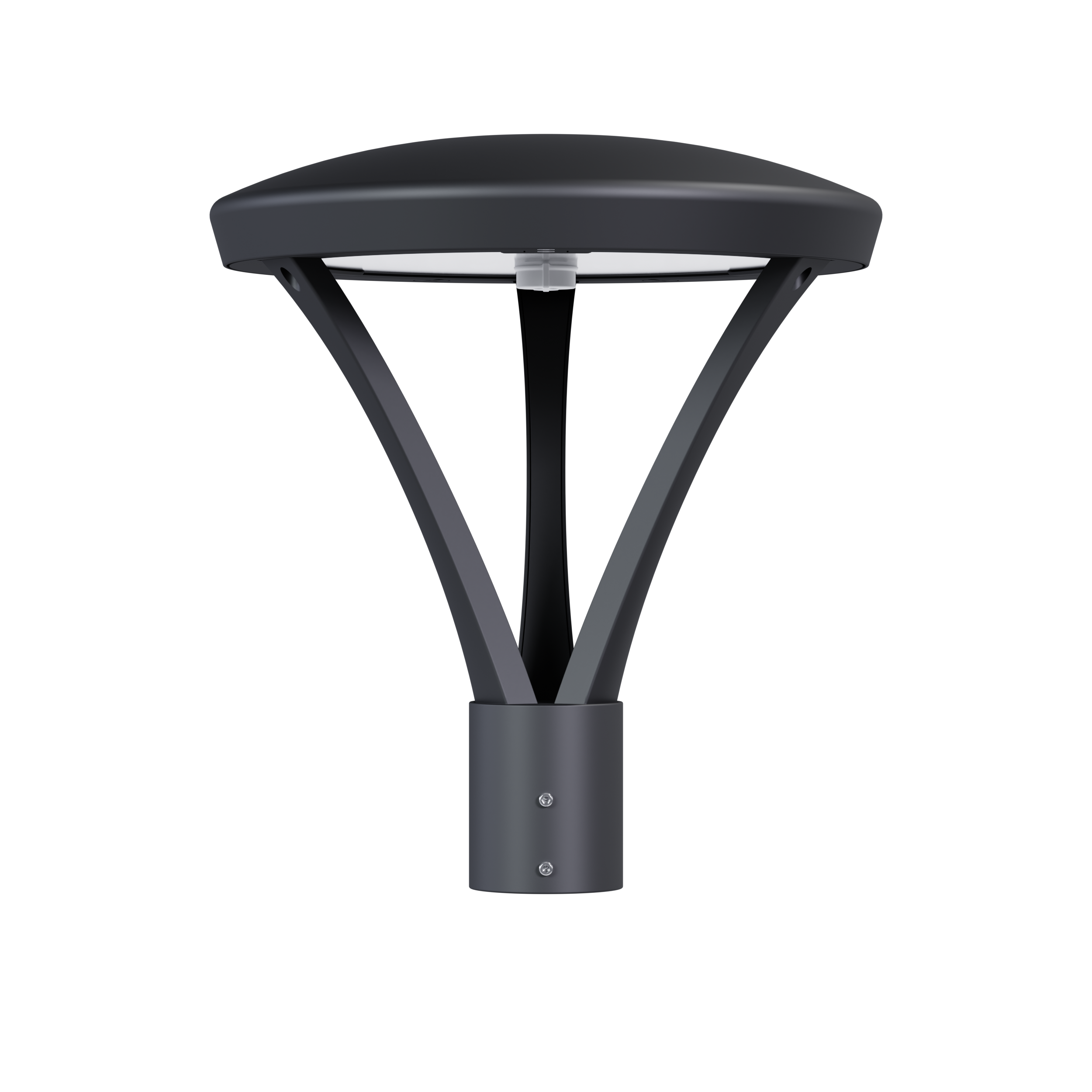

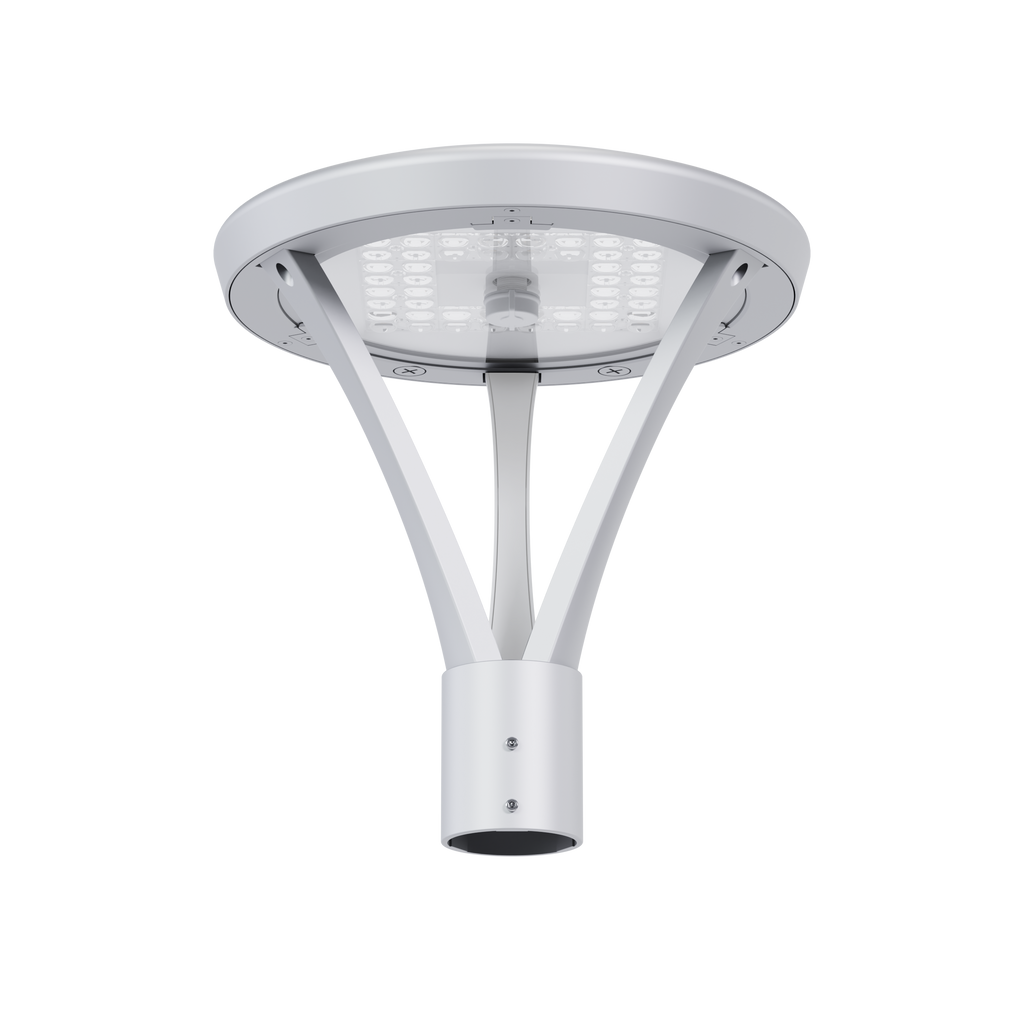

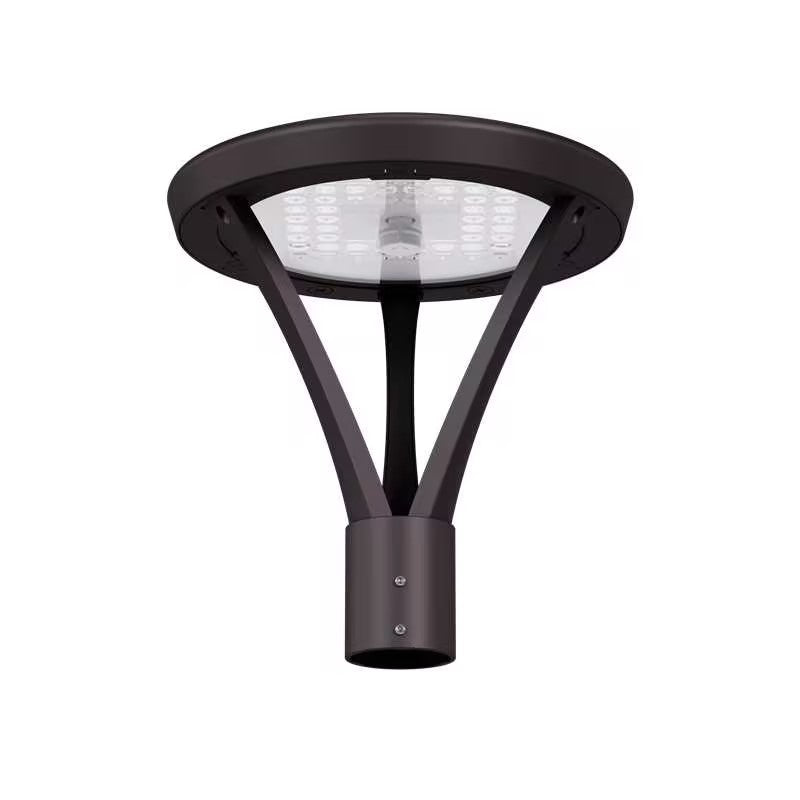

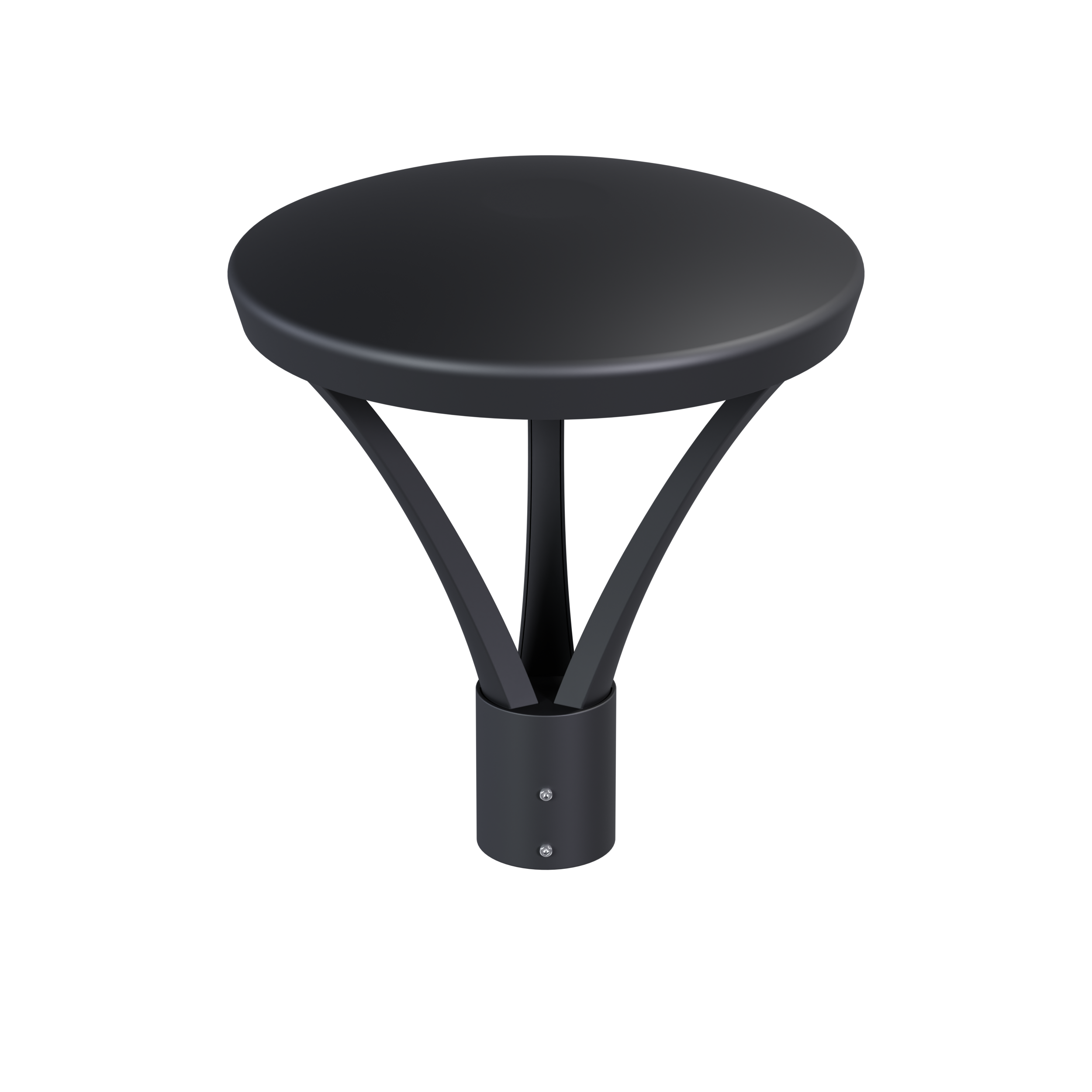

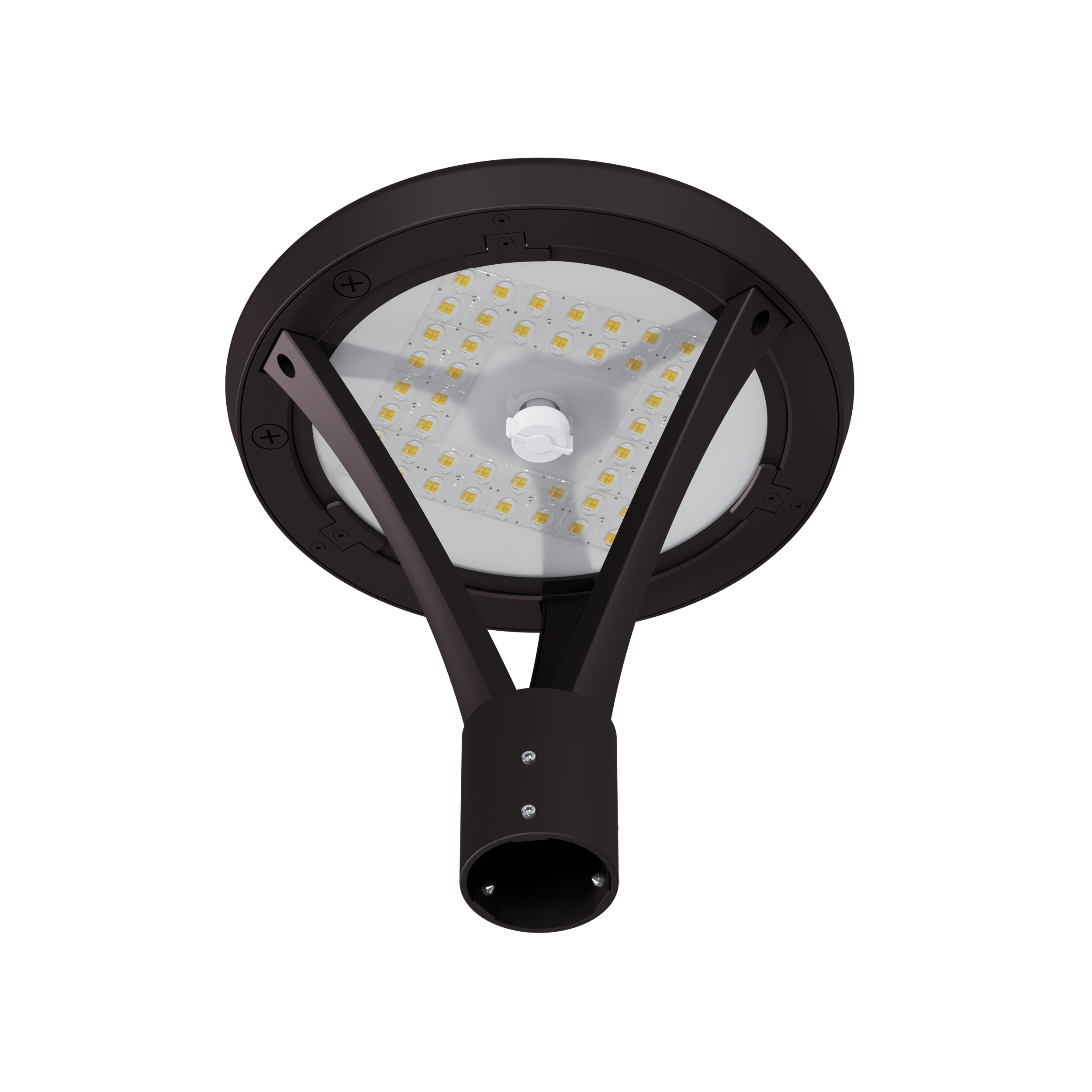

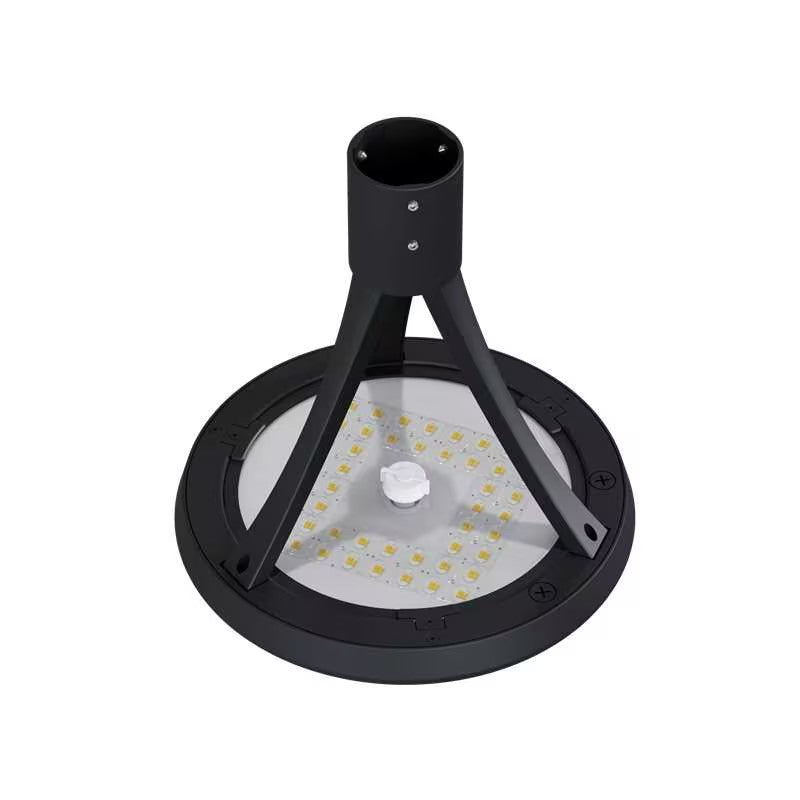

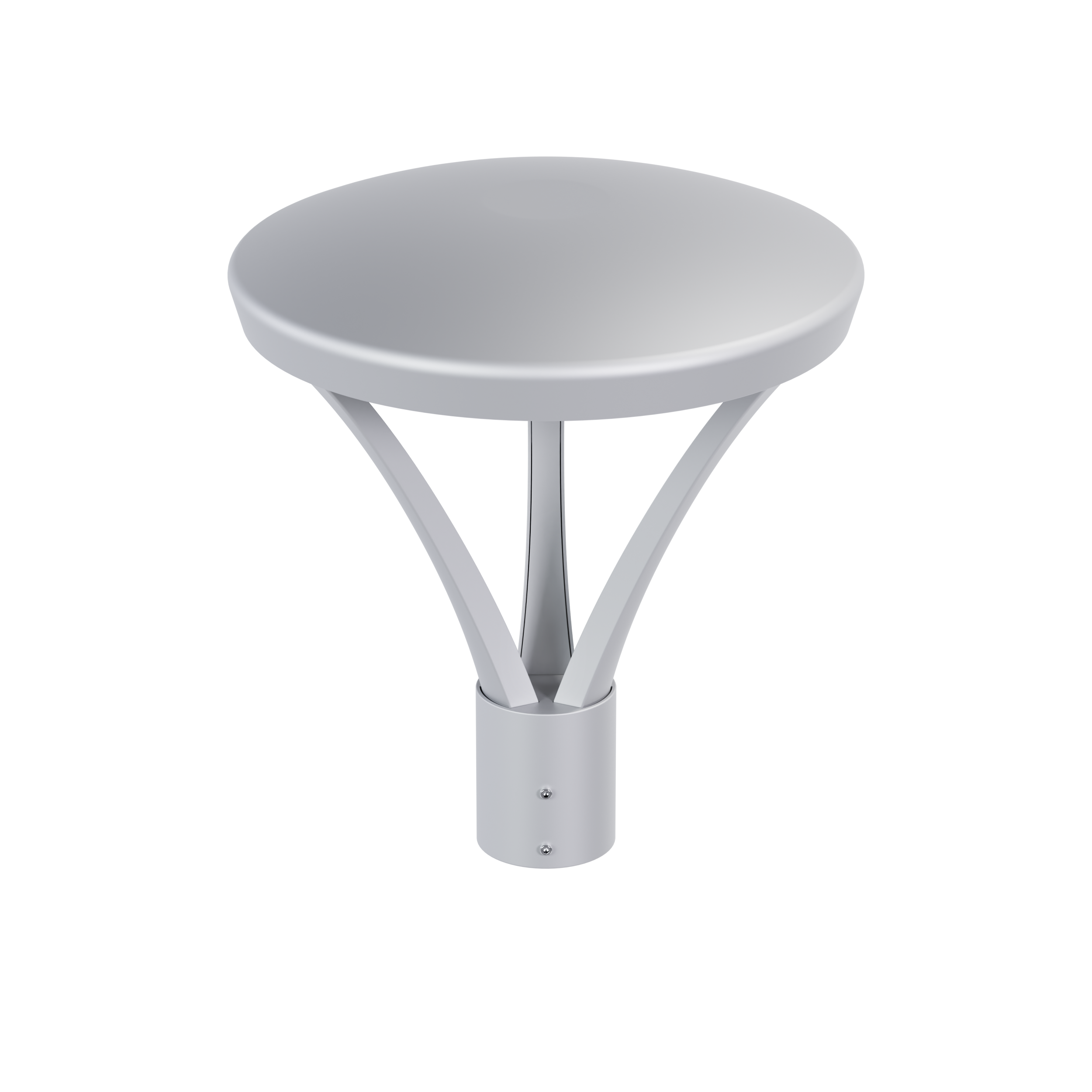

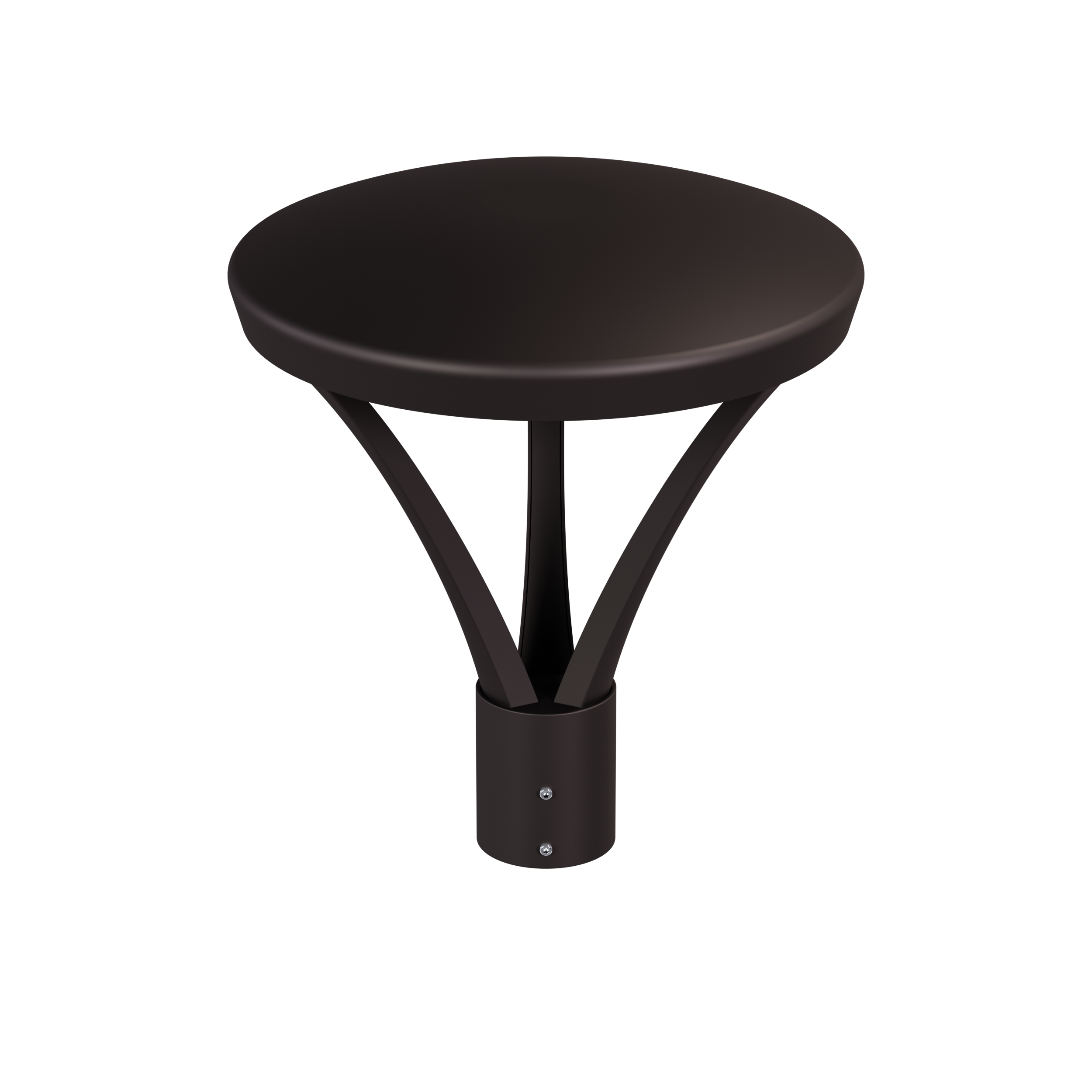

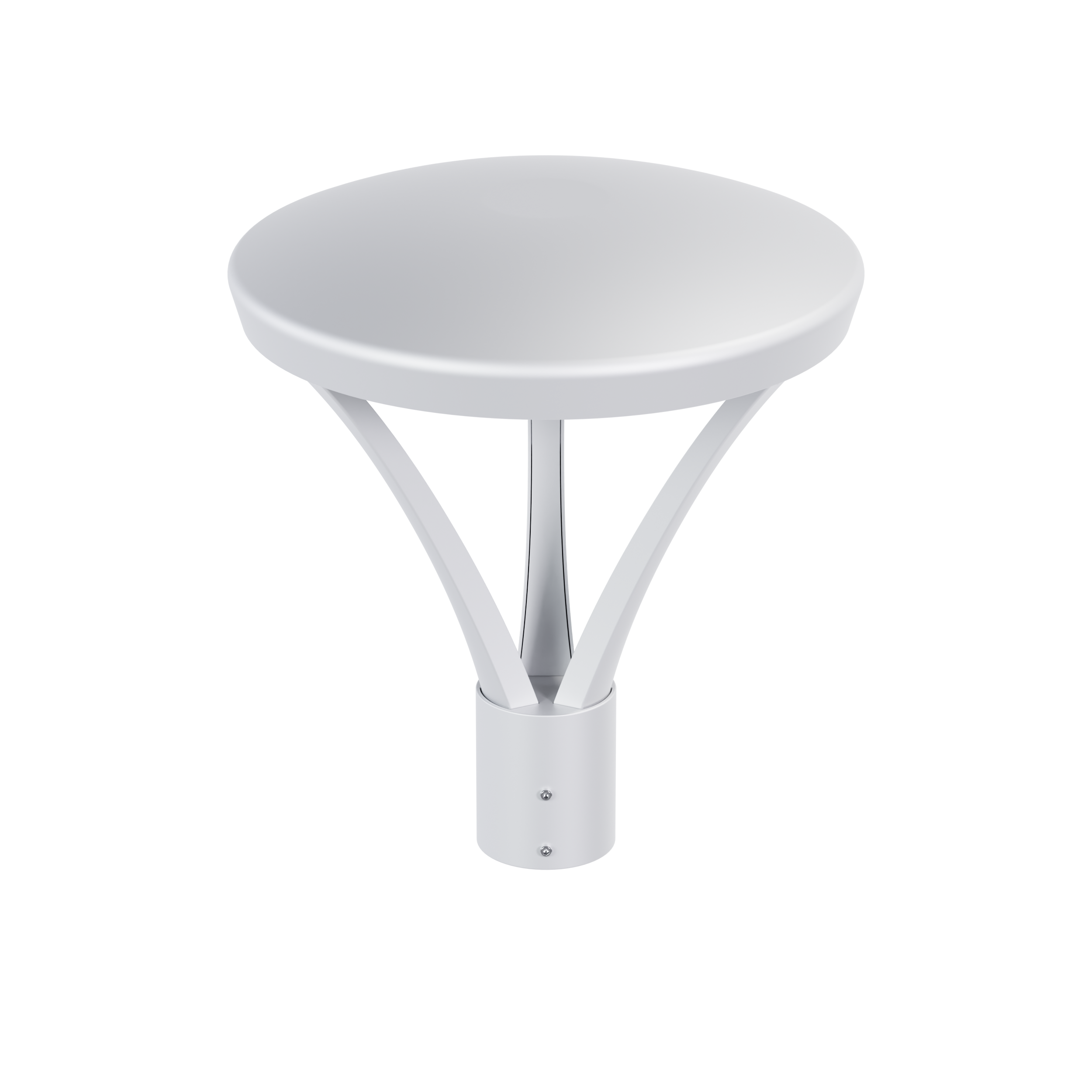

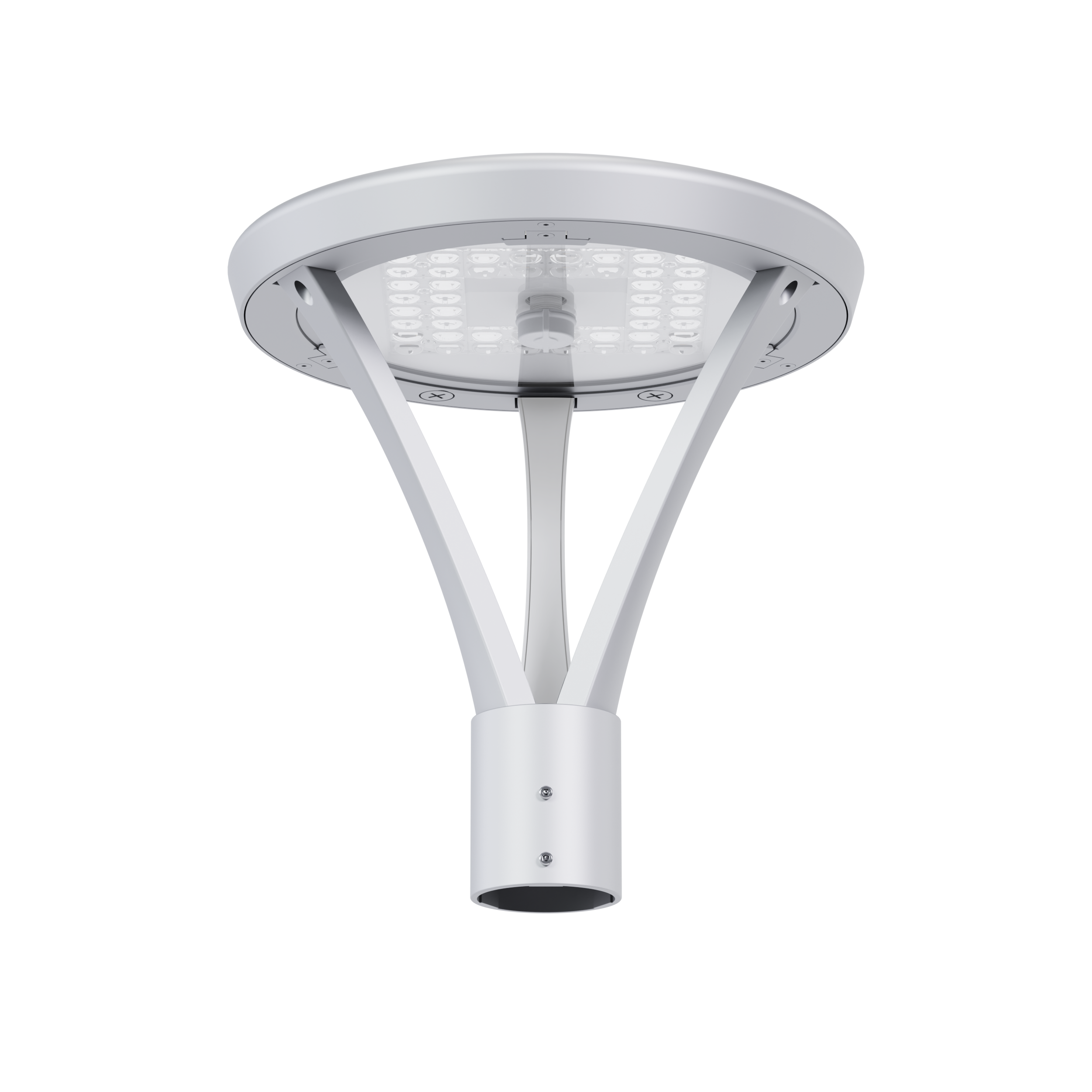

NaturaLED® has designed a sleek, contemporary post top
fixture with three vertical arm that creates a clean look.
Easy installation to retrofit on standard 2-3/8" tenons, 3”
Pole.
The preinstalled Z10 Receptacle allows
easy plug-and-play control upgrades during installation or a later time.
APPLICATIONS:
Corporate Campus, Education, Healthcare, Parking Structure, Parks, Hospitalities,
Walkways, Commercial office buildings, Landscape lighting may come into use
fixture with three vertical arm that creates a clean look.
Easy installation to retrofit on standard 2-3/8" tenons, 3”
Pole.
The preinstalled Z10 Receptacle allows
easy plug-and-play control upgrades during installation or a later time.
APPLICATIONS:
Corporate Campus, Education, Healthcare, Parking Structure, Parks, Hospitalities,
Walkways, Commercial office buildings, Landscape lighting may come into use
Fits 2-3/8”Tenon / Fits 3” Pole
Selectable Wattage
60W / 80W / 100W
120-277V
Input voltage
DLC v5.1 Premium
DLC listed
Specifications
Series
PST16
Wattage
60, 80, 100 (Selectable)
Max Wattage
100
CCT
3000K, 4000K, 5000K (Selectable)
Lumens
7200, 9600, 12000
Max Lumens
12000
CRI
80
Voltage
120-277V
Light Distribution
Type V
Lens Type
Glass
Recommended Spacing
20' to 40'
Dimmable
Dimming leads AVAILABLE for use in the field
Dimming Type
0-10V
IP Rating
IP65
Operating Temp
-40°C to 50°C (-40°F to 122°F)
Surge Protection
20kV
Power Factor
>0.9 at full load
THD
<20% at full load
L70 Hours
50000
DLC
DLC v5.1 Premium
FCC
FCC Part 15, Subpart B, Class A
RoHS
Yes
Title 24
Yes
Fixture Height
17.4
Fixture Width
3.6
Fixture Length
3.6
Fixture Weight
13.5
Warranty
5-Year Limited Warranty
Shipping
Ships in 1-3 Business Days
