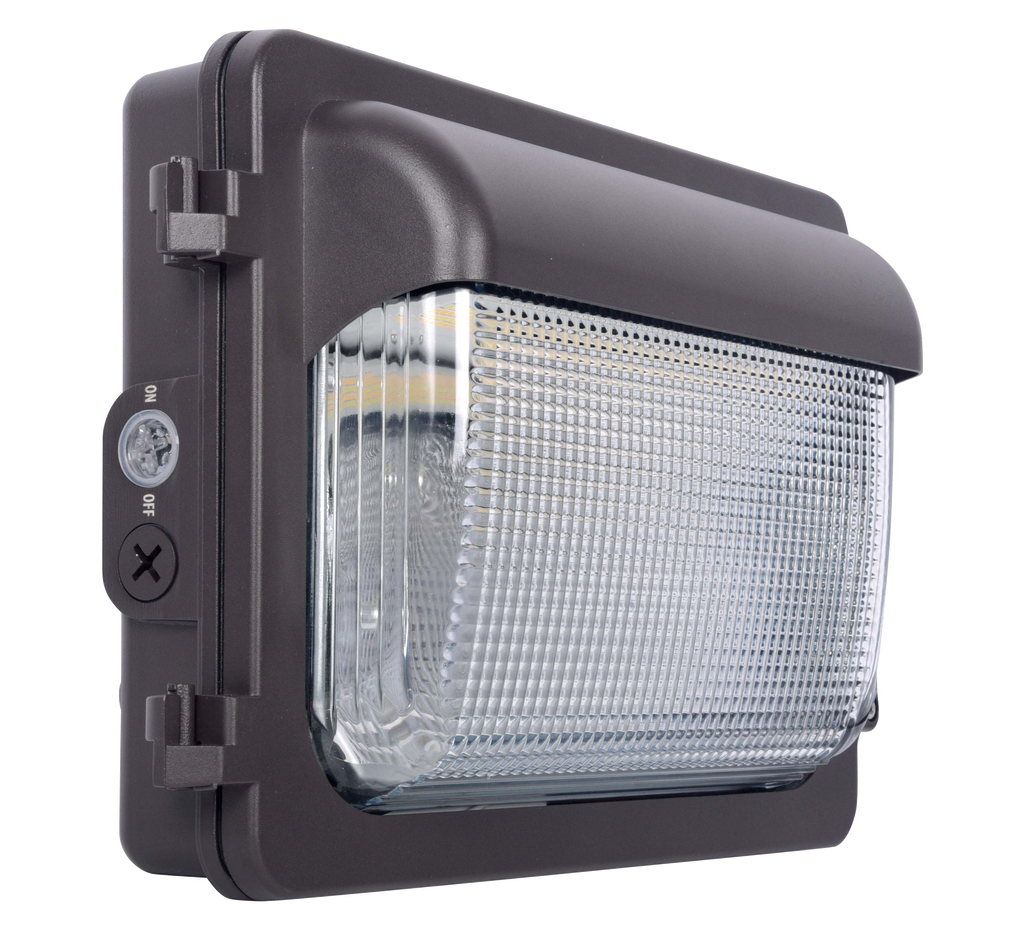

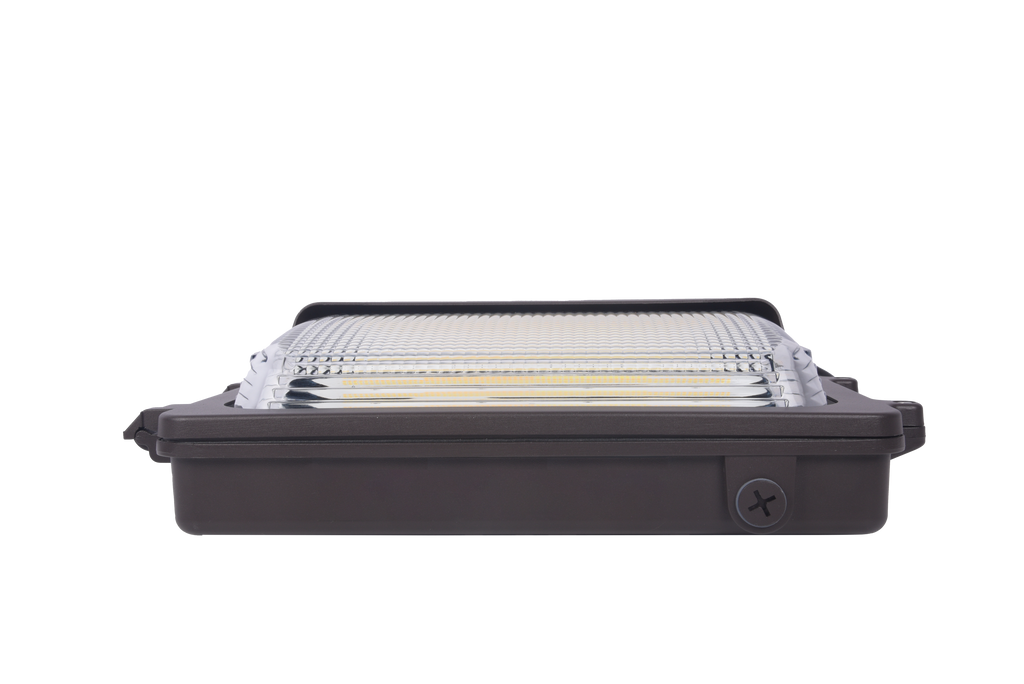

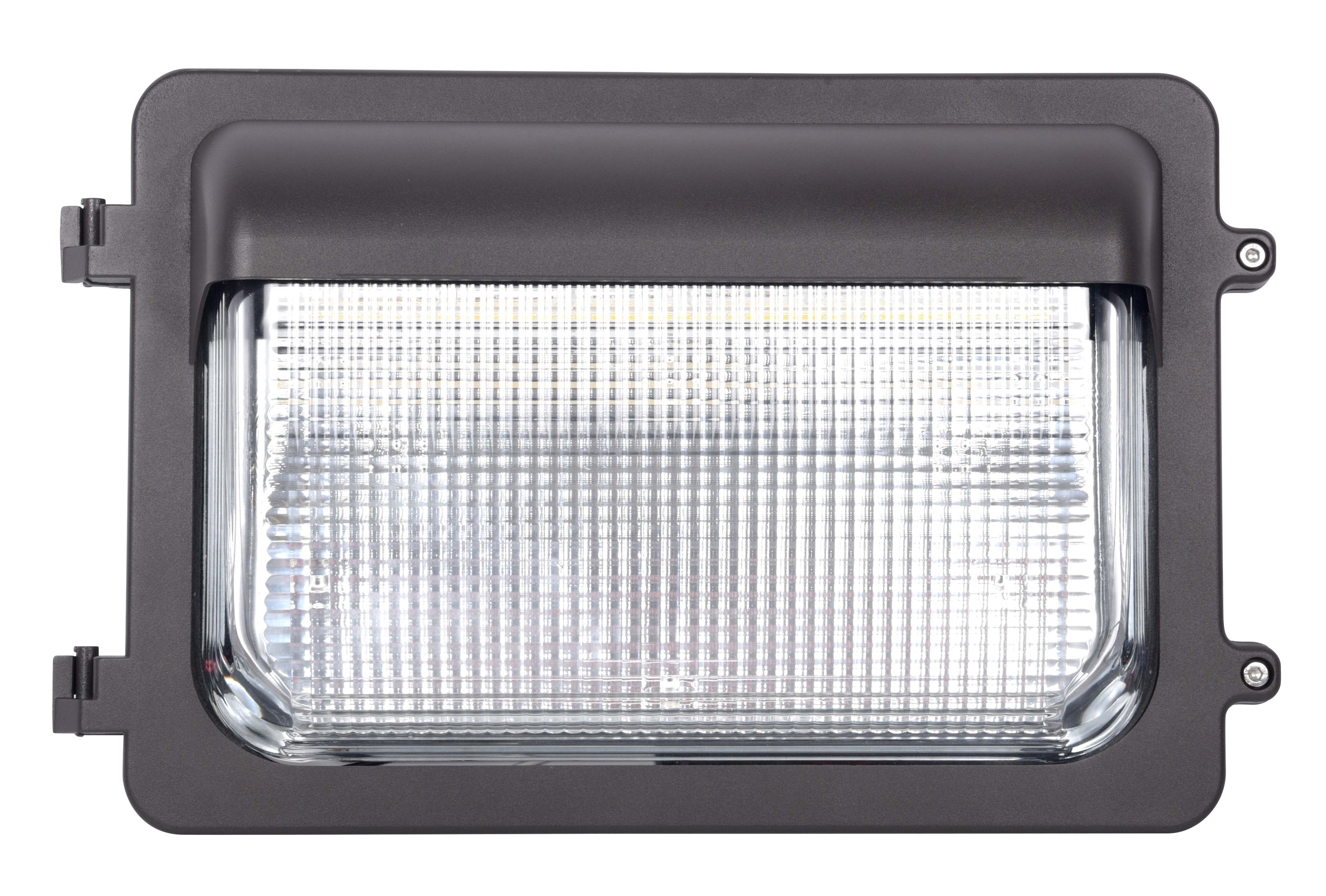

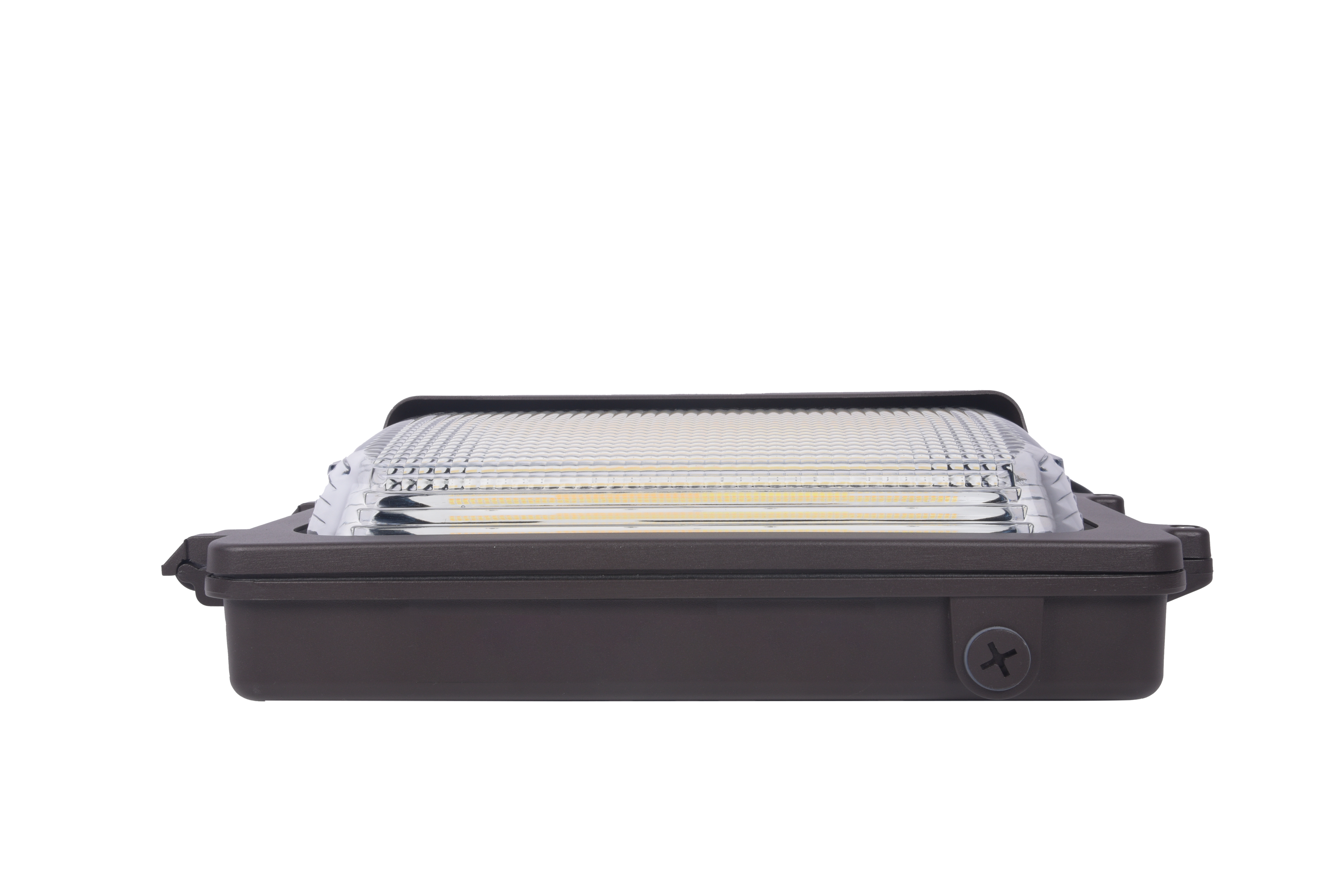

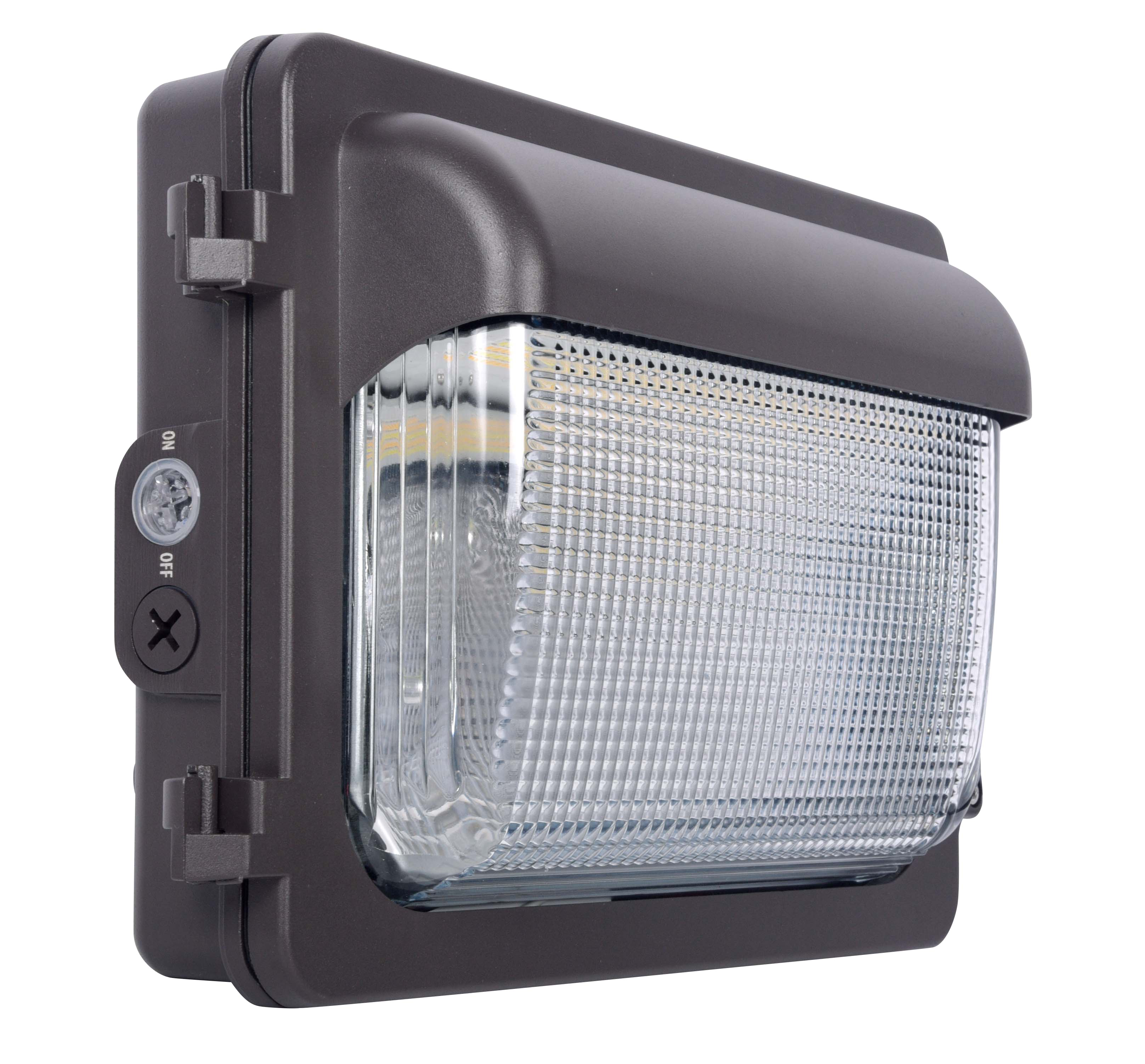

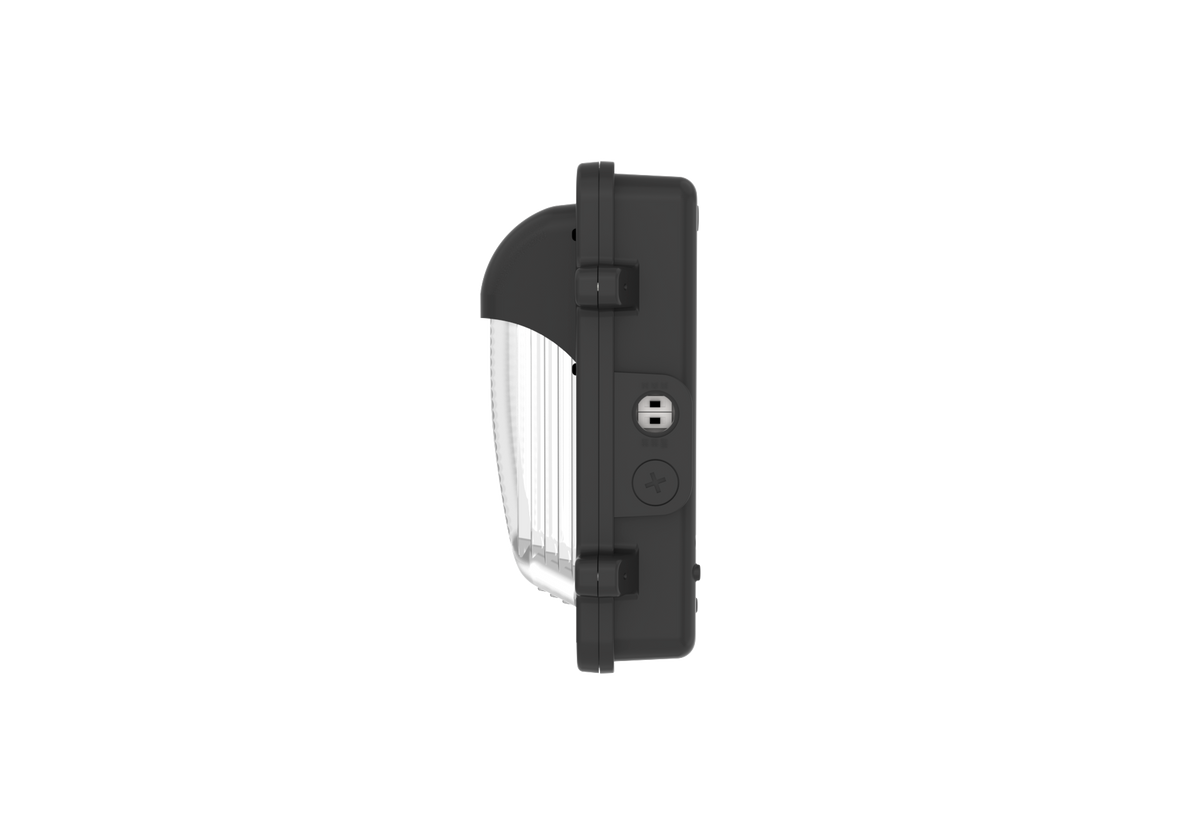

100W Selectable LED Wall Pack — Type IV
Bronze
$159.99
Sale price
$159.99
Regular price
Skip to product information
SKU
FXTWX100SW/8CCT3/BZ-PHO
100W Selectable LED Wall Pack — Type IV
$159.99
Sale price
$159.99
Regular price
Retail Price
Contractor Price
(Log in to view contractor pricing)
Qty
Downloads
Efficient thermal management with a durable cast-aluminum housing.
DLC Premium qualified for high energy efficiency.
Sleek, compact design for improved aesthetics.
Selectable wattage and color temperature (CCT) for added flexibility.
DLC Premium qualified for high energy efficiency.
Sleek, compact design for improved aesthetics.
Selectable wattage and color temperature (CCT) for added flexibility.
Wall Mount
Selectable Wattage
60W / 80W / 100W
120-277V
Input voltage
DLC v5.1 Premium
DLC listed
cETLus
Safety listed
Specifications
Series
FXTWX
Wattage
60, 80, 100 (Selectable)
Max Wattage
100
CCT
3000K, 4000K, 5000K (Selectable)
Lumens
8600, 10000, 12200
Max Lumens
12286
CRI
80
Voltage
120-277V
Beam Angle
115
Light Distribution
Type IV
Lens Type
Glass
Mount
Wall Mount
Mounting Height
8' to 20'
Dimmable
Dimming leads AVAILABLE for use in the field
Sensor
Integrated Photocell
IP Rating
IP65
Operating Temp
-40°C to 50°C (-40°F to 122°F)
Surge Protection
4kV
Power Factor
>0.9 at full load
THD
<20% at full load
L70 Hours
50000
Safety Cert
cETLus
DLC
DLC v5.1 Premium
FCC
FCC Part 15, Subpart B, Class B
RoHS
Yes
Fixture Height
15.55
Fixture Width
9.76
Fixture Length
4.21
Fixture Weight
9.48
Warranty
5-Year Limited Warranty
Shipping
Ships in 3-5 Business Days
