101W LED Linear High Bay
$69.99
Sale price
$69.99
Regular price
Skip to product information
Final Sale
Same or Next Day Shipping
SKU
HML1100U40AS
101W LED Linear High Bay
- Lumens
- 14,200 lm
- CCT
- 4000K
- Voltage
- 120-277V
- Sensor
- Sensor-Ready
$69.99
Sale price
$69.99
Regular price
Qty
Downloads

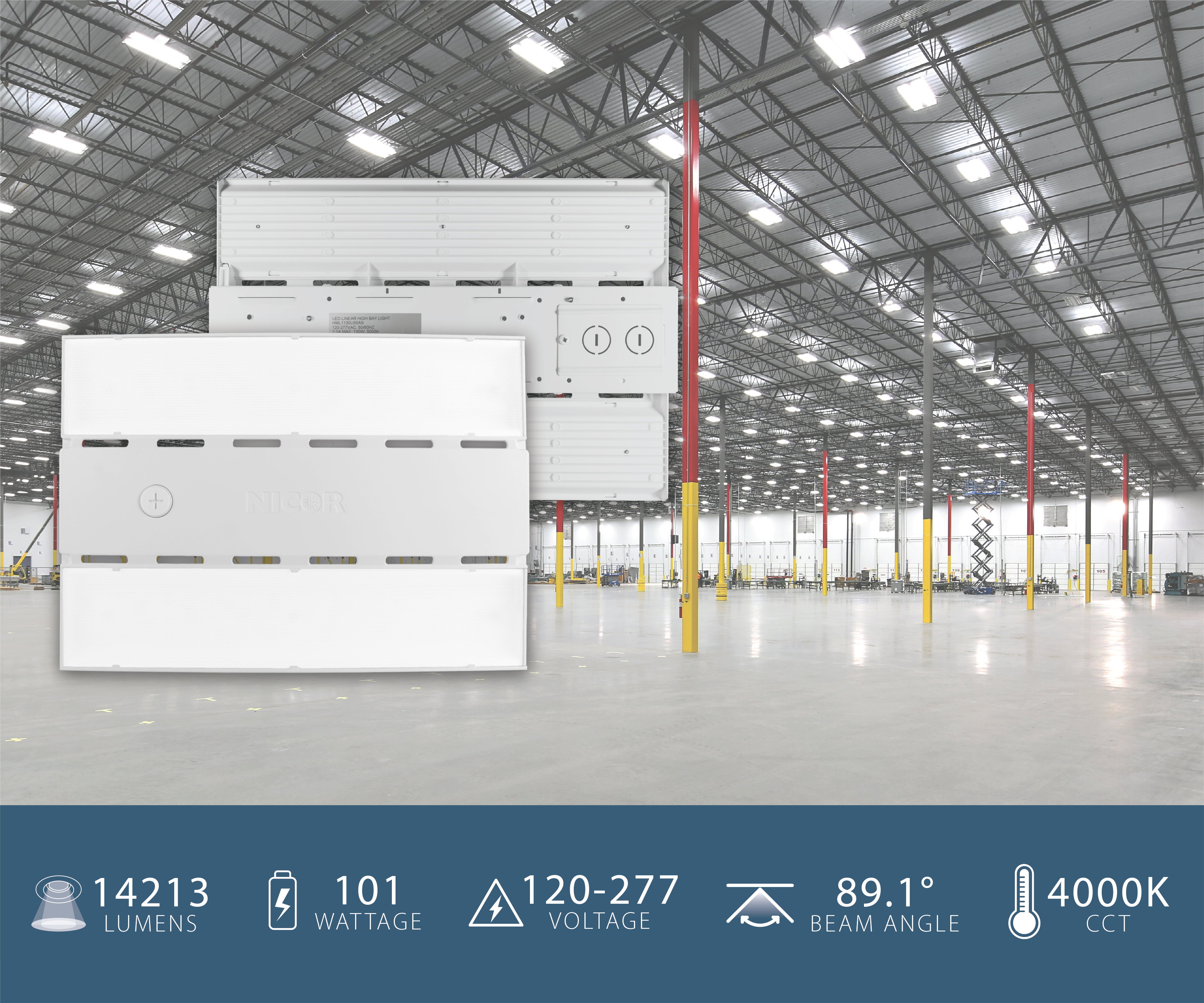

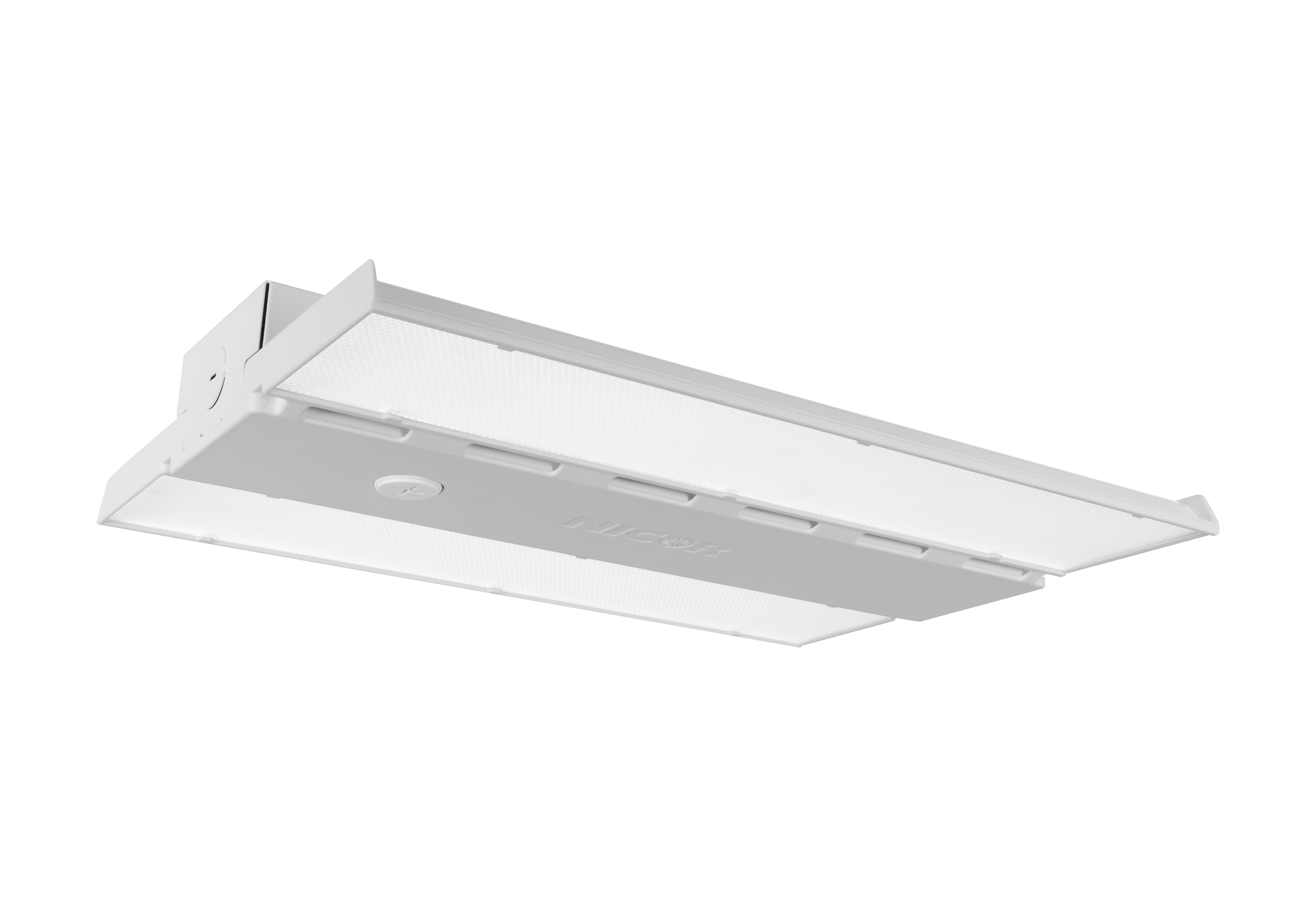

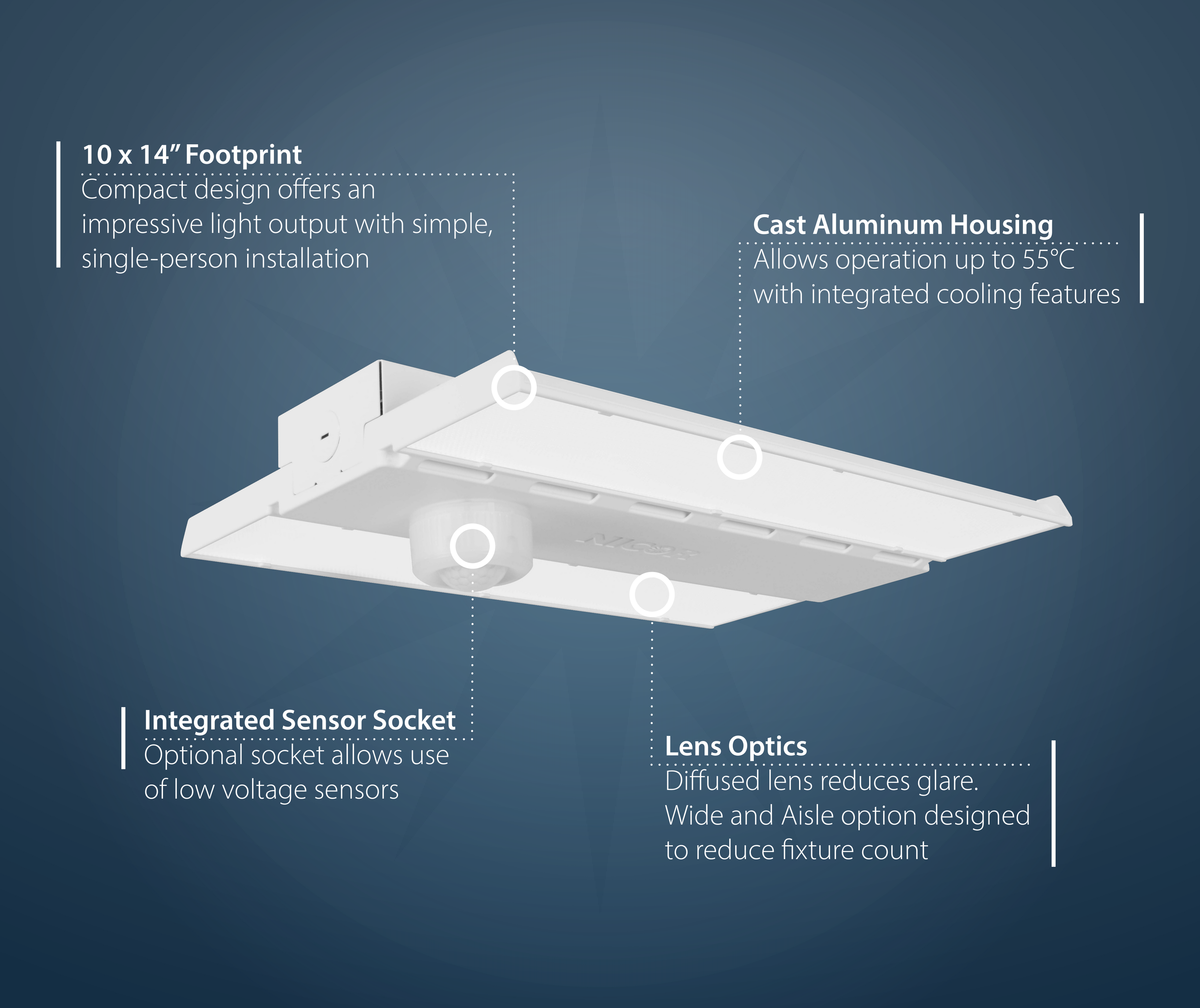

The NICOR Lighting 101W LED Linear High Bay from the HML1 Series is engineered for suspended mounting in commercial or industrial spaces requiring high-output illumination. Delivering 14,200 lumens at 4000K color temperature, it operates on 120-277V input with 0-10V dimming. Its cULus and DLC v5.1 Premium listings, fully cast aluminum body, polycarbonate lens, and damp location rating support use in demanding environments.

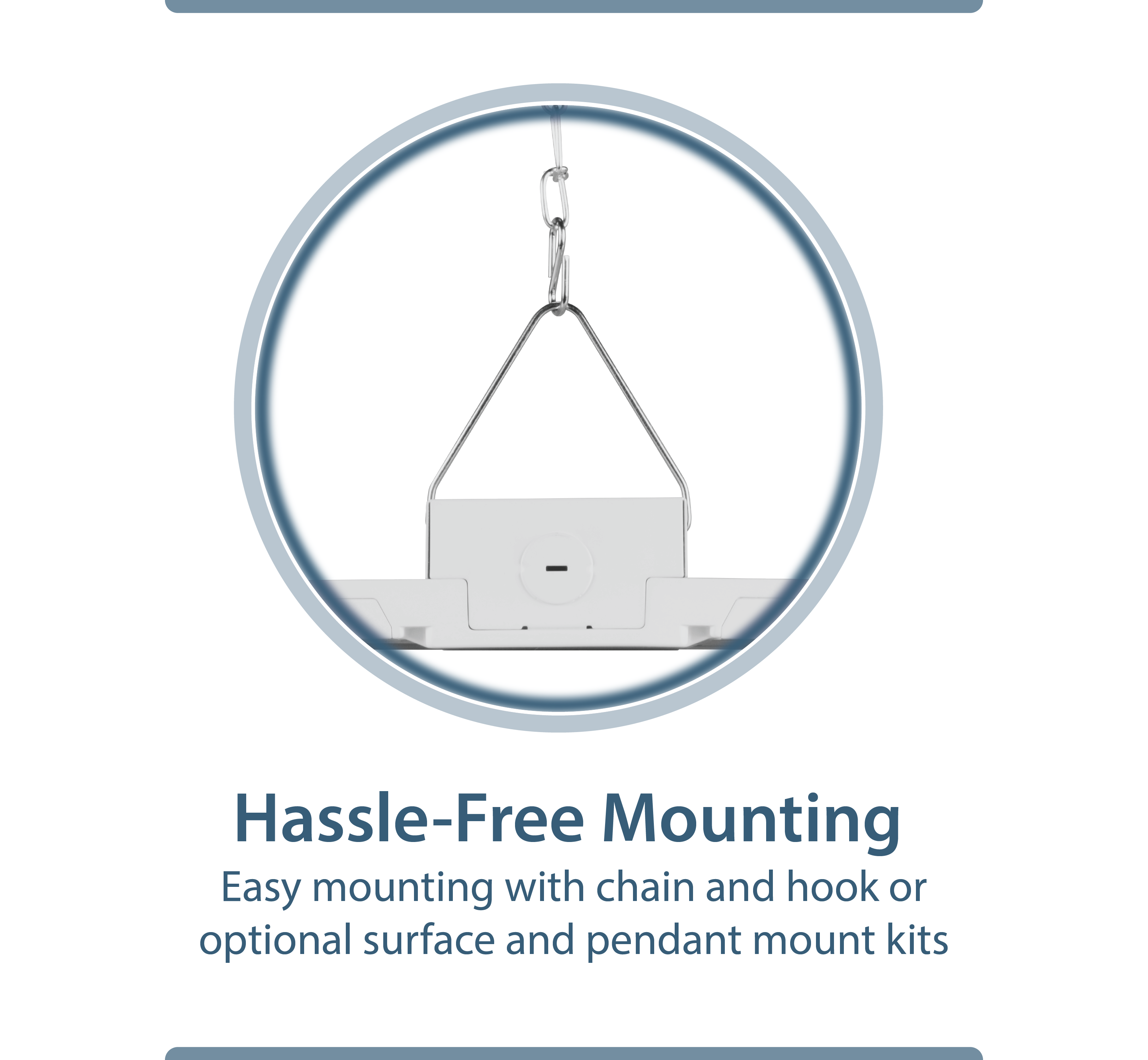

1x High-Bay
2x V-Hooks
2x Chains with "S" Hook
2x V-Hooks
2x Chains with "S" Hook
Fixed Lumens
14200 lm
Fixed CCT
4000K
120-277V
Input voltage
Sensor-Ready
Sensor
Certifications
Compatible Accessories
Specifications
Series
HML1
Wattage
101 (Fixed)
Max Wattage
101
CCT
4000K (Fixed)
Lumens
14200 (Fixed)
Max Lumens
14200
CRI
80
Voltage
120-277V
Beam Angle
90° x 90°
Light Distribution
Medium
Finish
White
Housing
Aluminum
Lens Type
Polycarbonate
Mount
Suspended Mounting
Dimmable
Dimming leads AVAILABLE for use in the field
Dimming Type
0-10V
Sensor
Sensor-Ready
Sensor Details
3.5MM Port for Plug-and-Play Controls
Environmental Rating
Damp Location
IK Rating
IK08
Operating Temp
-20°C to 55°C (-4°F to 131°F)
L70 Hours
60000
Safety Cert
cULus
DLC
DLC v5.1 Premium
FCC
FCC Part 15, Subpart B, Class A
RoHS
Yes
Fixture Height
1.97
Fixture Width
10.36
Fixture Length
14.8
Fixture Weight
2.82
Warranty
5-Year Limited Warranty
Shipping
Same or Next Day Shipping
