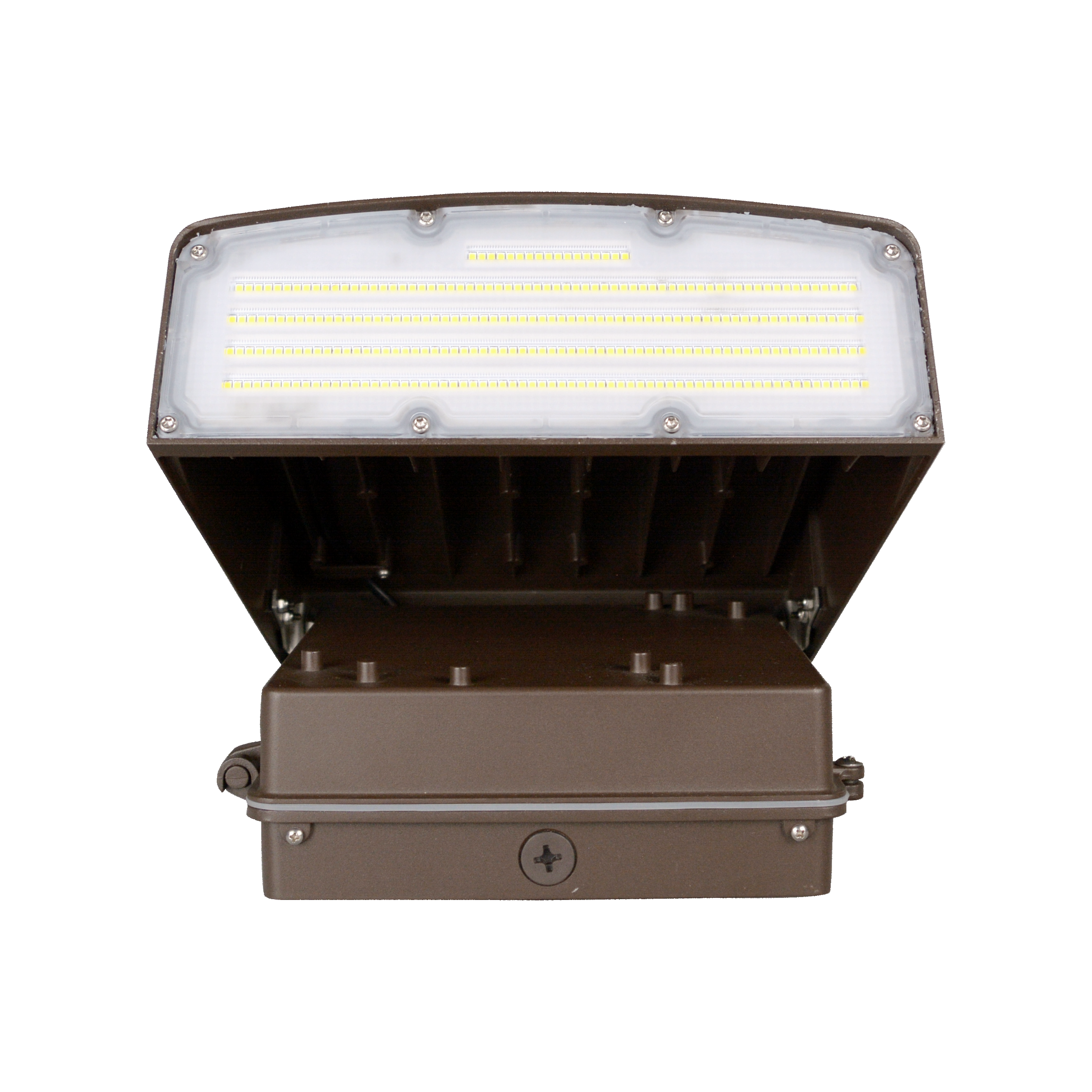

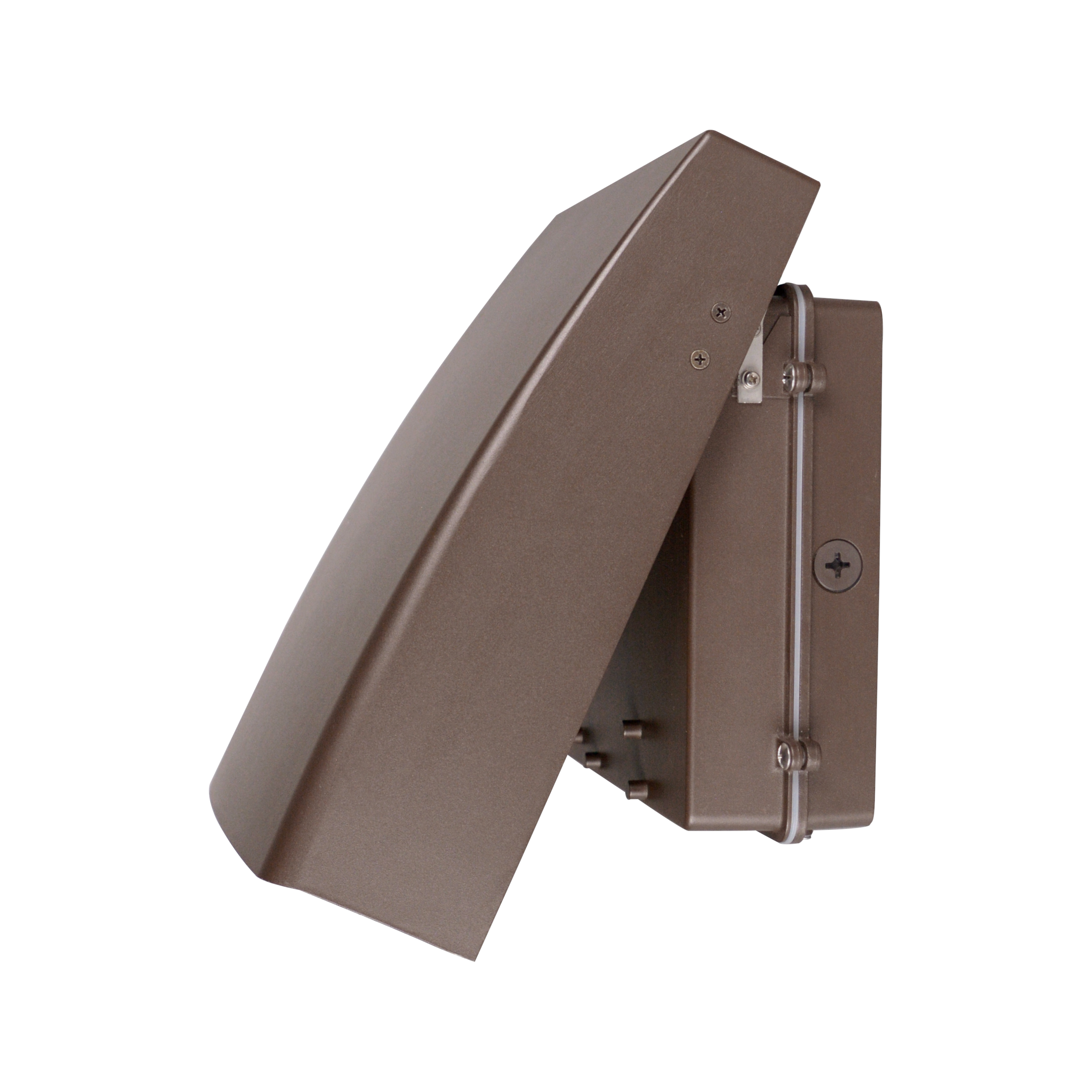

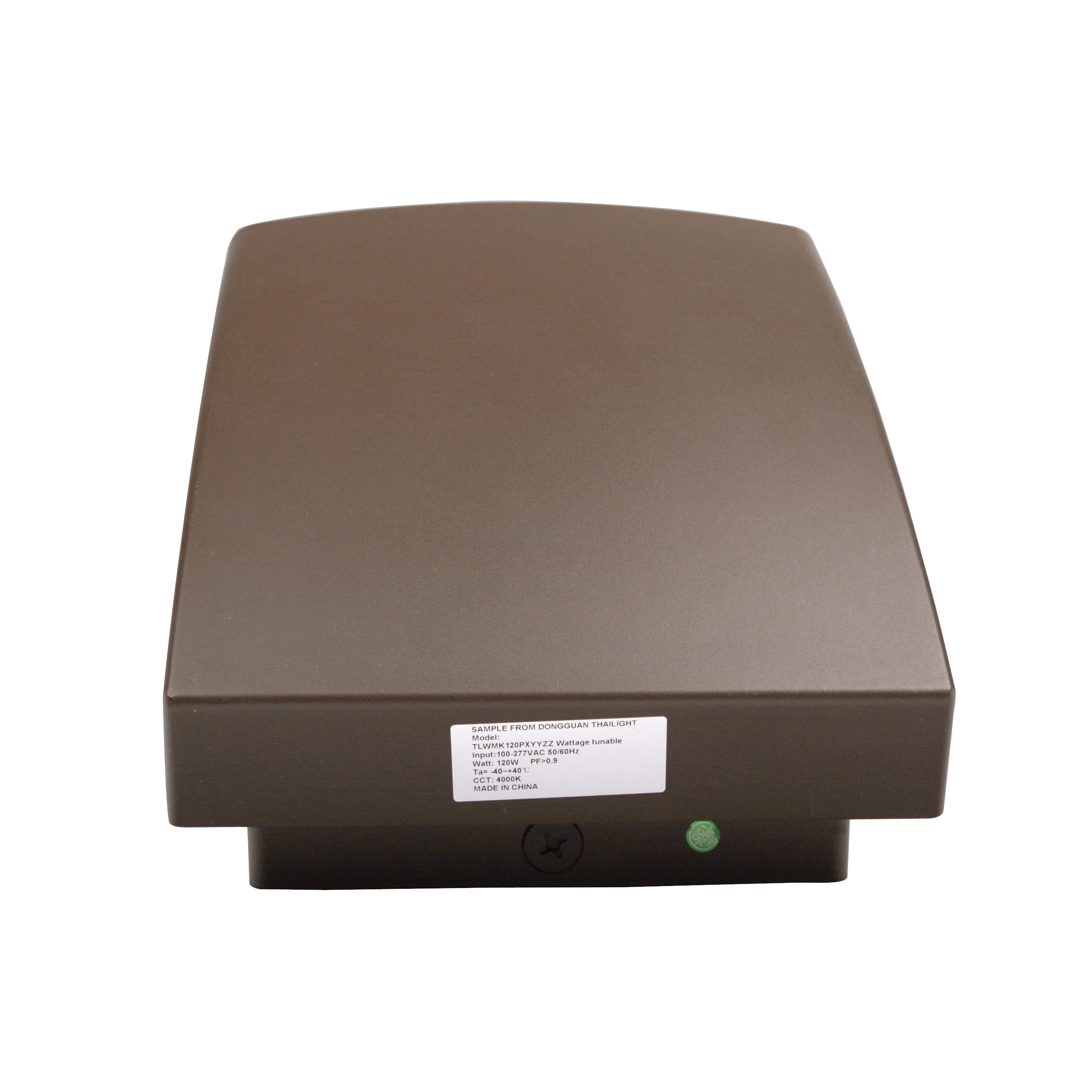

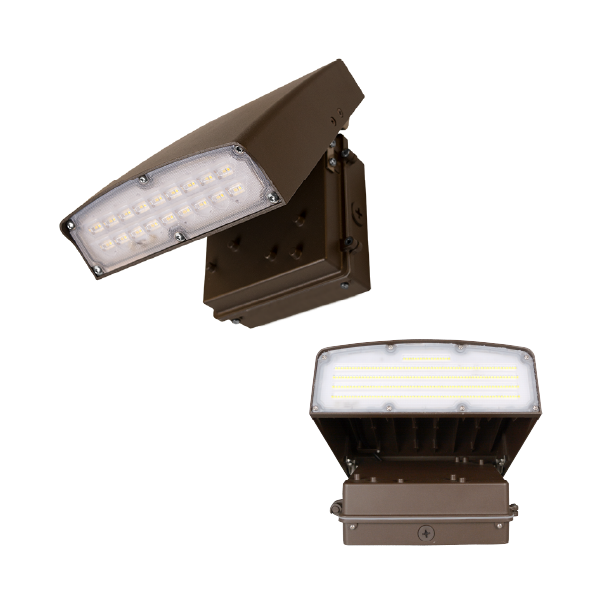

124W Selectable LED Wall Mount Fixture
$249.99
Sale price
$249.99
Regular price
Skip to product information
Same or Next Day Shipping
SKU
OSA3120MVSBZ
124W Selectable LED Wall Mount Fixture
- Lumens
- 16,105 lm
- CCT
- 3000K–5700 Selectable
- Voltage
- 120-277V
$249.99
Sale price
$249.99
Regular price
Qty
Downloads
Die-cast aluminum housing
(4) 1/2” knockouts for conduit feeder or sensors
Toolless separable hinged backplate for easy installation and maintenance
Adjustable range of 0° to 90°
UV- and fire-resistant lens
(4) 1/2” knockouts for conduit feeder or sensors
Toolless separable hinged backplate for easy installation and maintenance
Adjustable range of 0° to 90°
UV- and fire-resistant lens
3x Wire Nuts
Fixed Lumens
16105 lm
Selectable CCT
3000K / 4000K / 5000K / 5700
120-277V
Input voltage
Certifications
Specifications
Series
OSA3
Wattage
124 (Fixed)
Max Wattage
124
CCT
3000K, 4000K, 5000K, 5700 (Selectable)
Lumens
16105 (Fixed)
Max Lumens
16105
CRI
70
Voltage
120-277V
Beam Angle
106°
Finish
Bronze
Housing
Die-Cast Aluminum
Lens Type
PMMA
Mount
Wall Mount
Dimmable
Dimming leads AVAILABLE for use in the field
Dimming Type
0-10V
Environmental Rating
Wet Location
IP Rating
IP65
Operating Temp
-40°C to 40°C(-40°F to 104°F)
Power Factor
>0.9 at full load
THD
<20% at full load
L70 Hours
54000
Safety Cert
cULus
DLC
DLC v5.1 Premium
FCC
FCC Part 15, Subpart B, Class B
Fixture Height
5.5
Fixture Width
11.0
Fixture Length
13.0
Fixture Weight
21.85
Warranty
5-Year Limited Warranty
