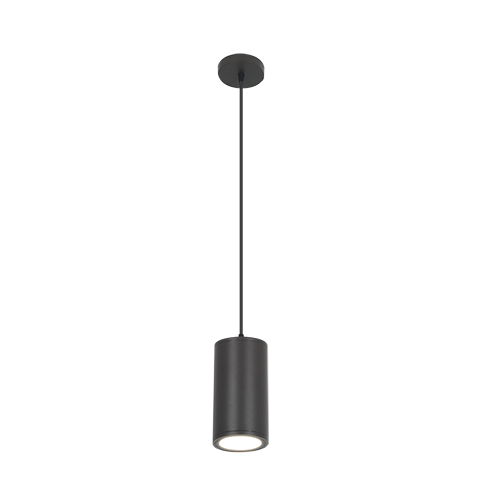

19W Selectable 4" LED Cylinder Light
$94.99
Sale price
$94.99
Regular price
Retail Price
Contractor Price
(Log in to view contractor pricing)
Qty
Downloads
Photometric Files (IES) 2 files
Engineered for electrical contractors seeking quality and flexibility, the GradeONE Cylinder Light delivers high-performance illumination and durability for demanding commercial projects. Featuring a robust 4-inch bronze aluminum housing suitable for wet locations (cULus listed), this cylinder light offers selectable lumen output from 978 to a max of 2000 lumens and five color temperature options ranging from 2700K to 5000K, allowing tailored lighting solutions for any project. Enjoy superior color accuracy with a CRI over 90 and adaptable beam angles with interchangeable 25°, 40°, and 60° reflectors. This fixture operates reliably on 120-277V, with fixed wattage up to 19W and built-in 4kV surge protection for enhanced longevity. Experience smooth dimming with 0–10V capability and benefit from an exceptional 140,000-hour L70 lifespan. Backed by a 5-Year Limited Warranty, the GradeONE Cylinder Light merges sleek architectural design, energy efficiency (ENERGY STAR certified), and rugged performance to support professional installations where quality and versatility matter most.
120-277V
Input voltage
cULus
Safety listed
Specifications
Series
CY4A
Voltage
120-277V
Finish
Bronze
Housing
Aluminum
Dimmable
Dimming leads AVAILABLE for use in the field
Dimming Type
0-10V
Environmental Rating
Wet Location
Operating Temp
-40°C to 45°C (-40°F to 113°F)
Surge Protection
4kV
Power Factor
>0.9 at full load
THD
<24% at full load
L70 Hours
140000
Safety Cert
cULus
Energy Star
Yes
FCC
FCC Part 15, Subpart B, Class B
Fixture Height
8.27
Fixture Diameter
4.0
Fixture Weight
2.39
Warranty
5-Year Limited Warranty
Shipping
Ships in 1-3 Business Days
