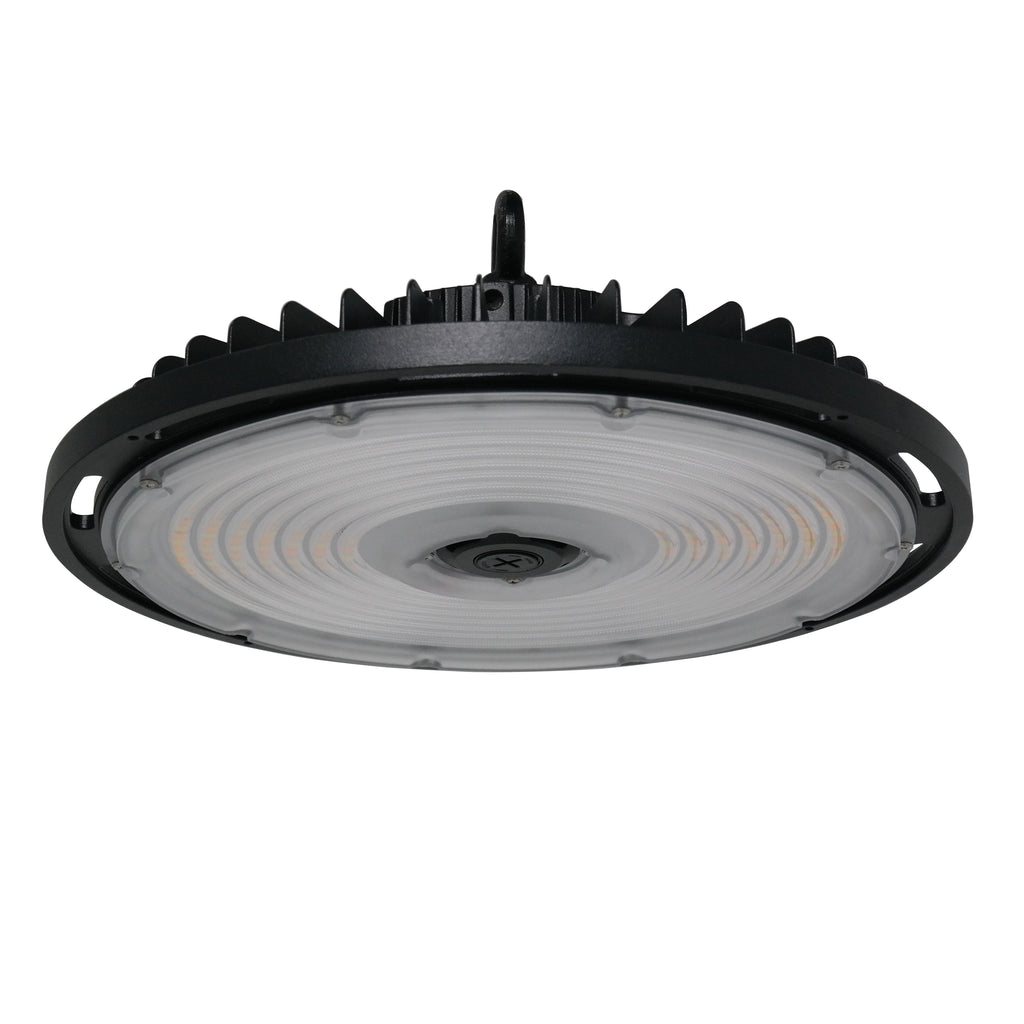

  • The GradeONE 236W Selectable LED Round High Bay — Type V features a black finned heat sink, a circular frosted lens, and a central hook for ceiling mounting, shown against a white background.
  • GradeONE 236W Selectable LED Round High Bay — Type V, image 9
  • GradeONE 236W Selectable LED Round High Bay — Type V, image 10
  • GradeONE 236W Selectable LED Round High Bay — Type V, image 11
  • GradeONE 236W Selectable LED Round High Bay — Type V, image 12
236W Selectable LED Round High Bay — Type V
Hot Deal
SKU
HBRA35LT5ULSCTWH

236W Selectable LED Round High Bay — Type V

236W Power Selectable / 120-277V / 40K-50K / White / Up to 35,000 Lumens
$84.99
$84.99
Retail Price
Contractor Price
Ships in 3-5 Business Days
Finish

Qty

Downloads

Spec Sheet Install Guide IES File
Sensor ready, built in receptacle

IP65 waterproof rating

IK09 impact resistant lens

160 lumens per watt
Suspension from eyebolt (included) is standard.

Ceiling-mounted installation using optional yoke mounting bracket, provides up to 180° of adjustability.

Two ways to mount luminaire to electrical conduit:

Attach conduit (1/2” NPS) to optional yoke mounting bracket.

Optional pendant snap hook (for use with 3/4” NPS).
Suspension from eyebolt (included) is standard
Selectable Wattage

Selectable Wattage

146W / 196W / 236W

120-277V

120-277V

Input voltage

DLC v6.0 Premium

DLC v6.0 Premium

DLC listed

cULus

cULus

Safety listed

Certifications

  • cULus Listed
  • DLC Listed Premium
  • FCC
  • Wet Location
  • IP65
  • IK09
  • 120V–277V
  • CCT and wattage selectable
  • 80+ CRI
  • 5 year warranty

Specifications

Series
HBRA
Wattage
146, 196, 236 (Selectable)
Max Wattage
236
CCT
4000K, 5000K (Selectable)
Lumens
24000, 30000, 35000 (Selectable)
Max Lumens
35000
CRI
80
Voltage
120-277V
Light Distribution
Type V
Lens Type
Polycarbonate
Mount
Suspended Mounting
Dimmable
Dimming leads AVAILABLE for use in the field
Environmental Rating
Wet Location
IP Rating
IP65
IK Rating
IK09
Operating Temp
-40°C to 50°C (-40°F to 122 °F)
Surge Protection
6kV
Power Factor
>0.9 at full load
THD
<20% at full load
L70 Hours
146000
Safety Cert
cULus
DLC
DLC v6.0 Premium
FCC
FCC Part 15, Subpart B, Class A
Fixture Height
14.0
Fixture Width
5.6
Fixture Length
14.0
Fixture Diameter
14.0
Fixture Weight
7.0
Warranty
5-Year Limited Warranty
Shipping
Ships in 3-5 Business Days
