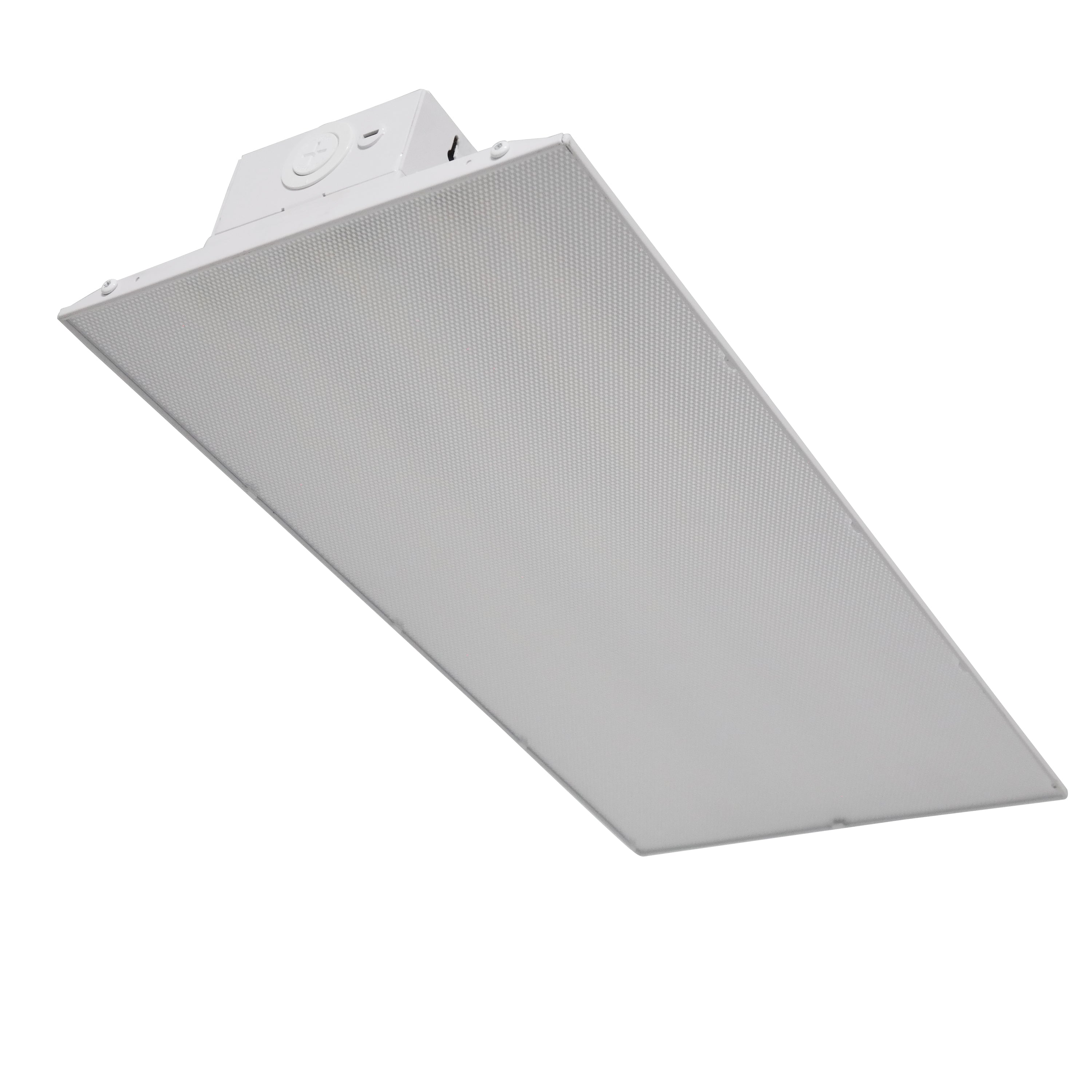

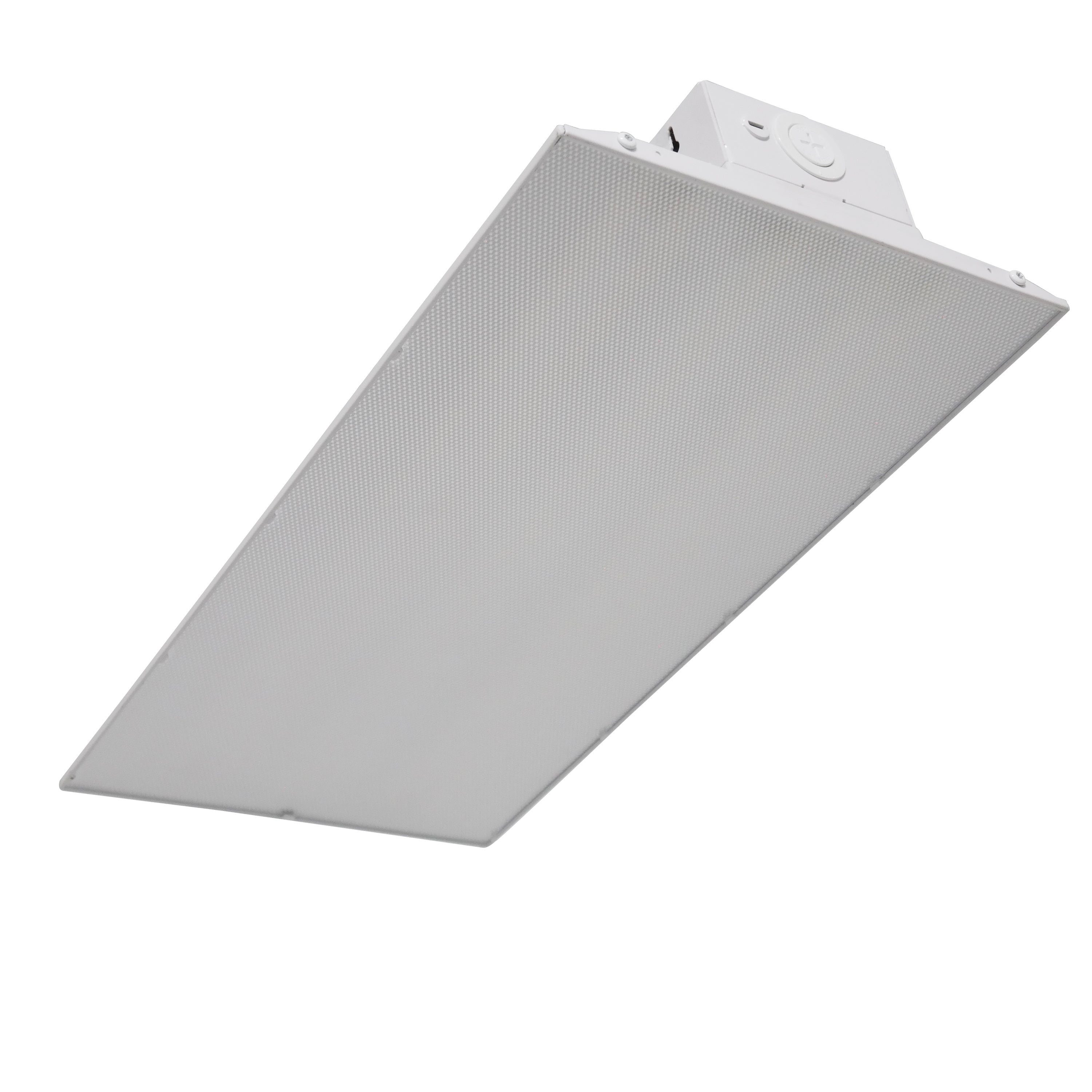

  • GradeONE 240W Selectable LED Linear High Bay — Medium, featuring a white frame and textured diffuser, viewed from below at an angle against a plain white background.
  • Here is the rewritten sentence using the provided product data: The GradeONE 240W Selectable LED Linear High Bay — Medium features a white metal frame and a textured diffuser, shown from below at an angle.

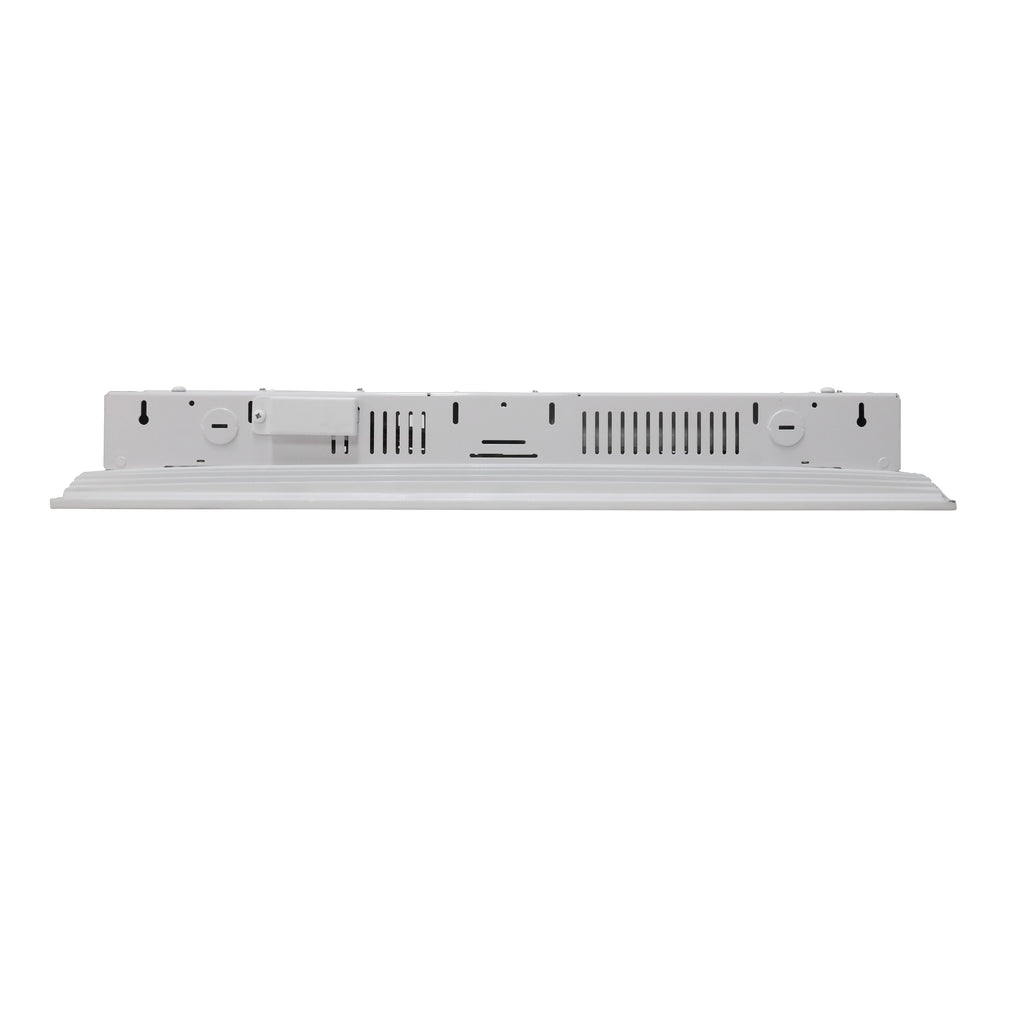

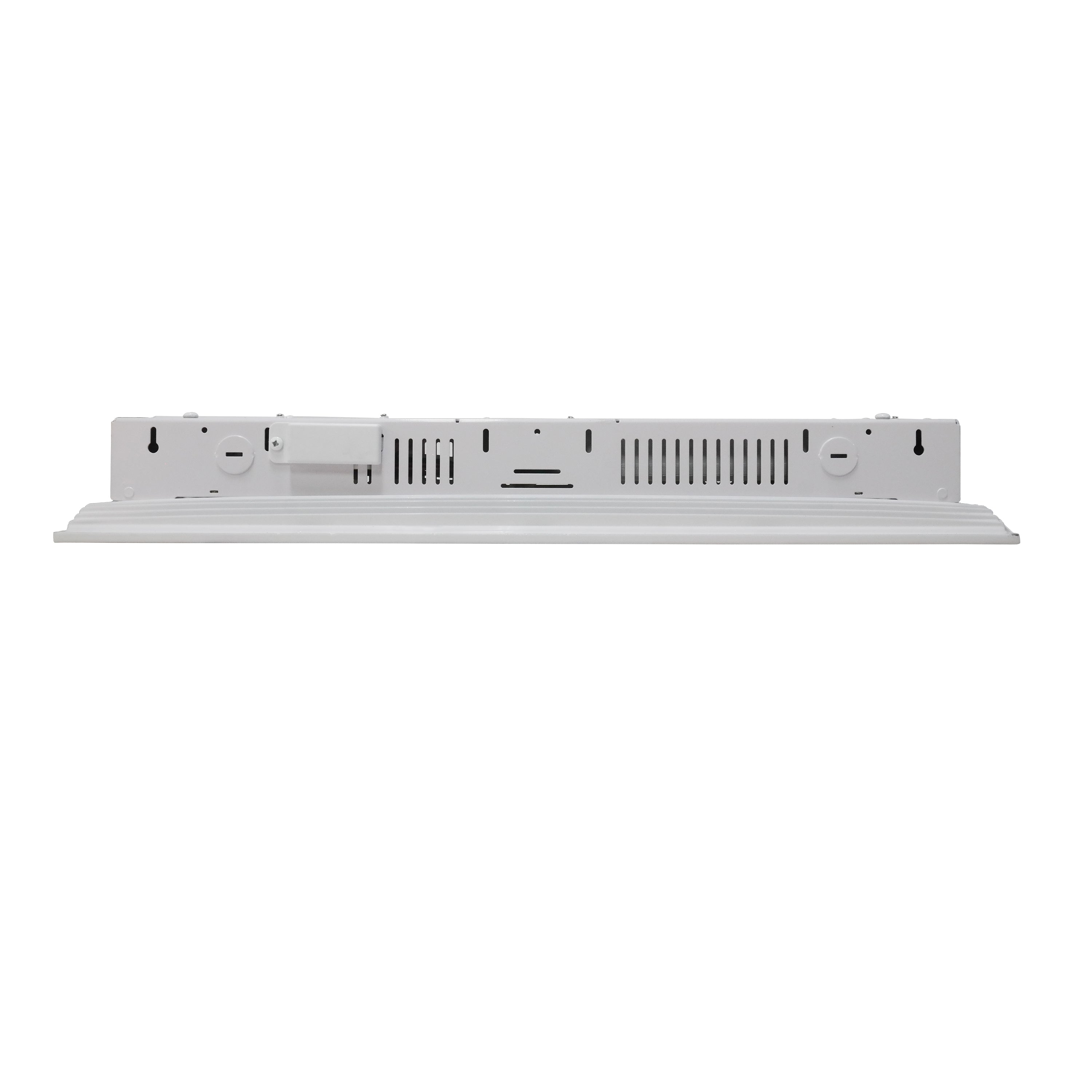

  • Back view of the GradeONE 240W Selectable LED Linear High Bay — Medium, showing its white rectangular panel with vents, screw holes, and a protruding section on the left side against a white background.

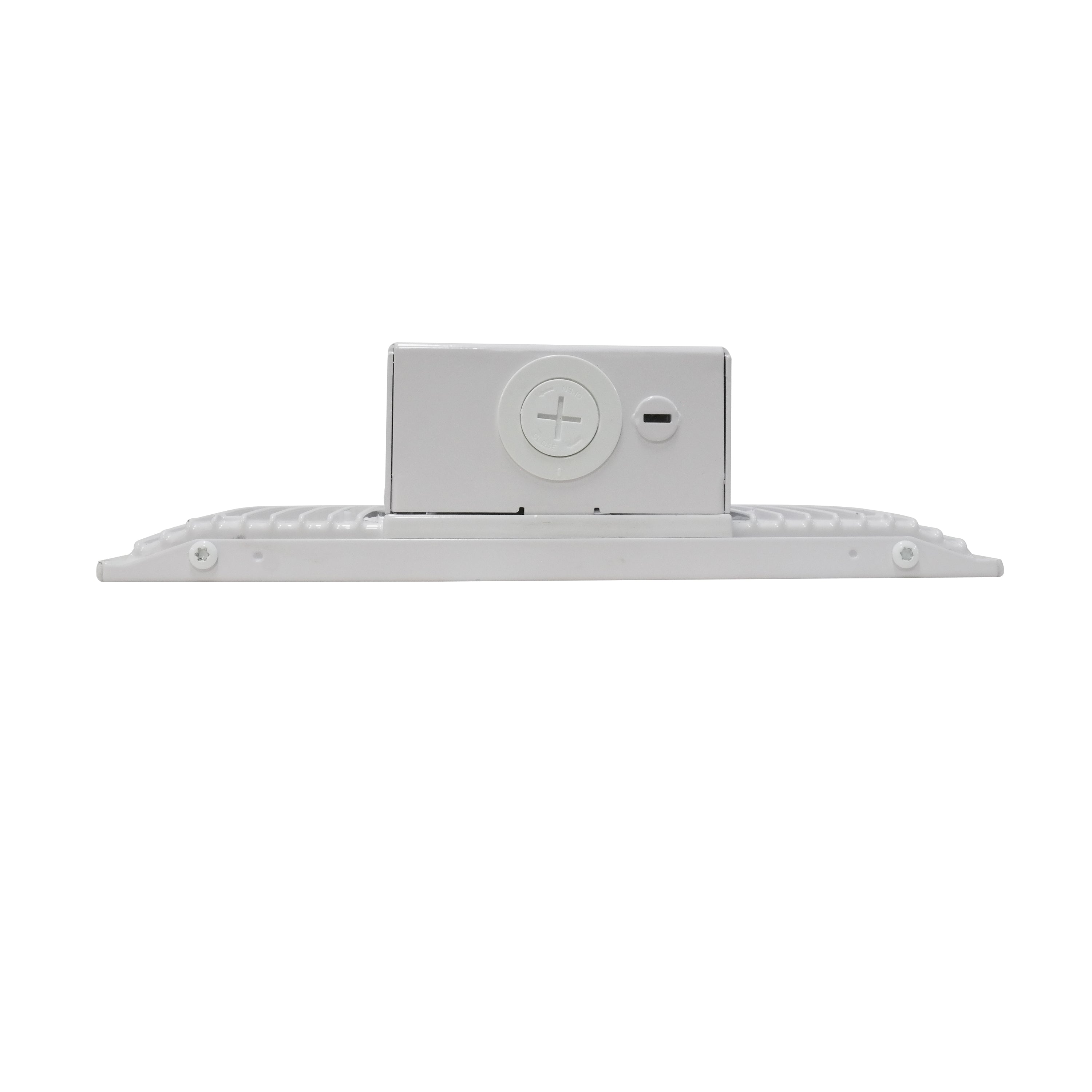

  • GradeONE 240W Selectable LED Linear High Bay — Medium, a white rectangular electronic device with a central circular dial displaying plus and minus symbols, shown from the side against a white background.

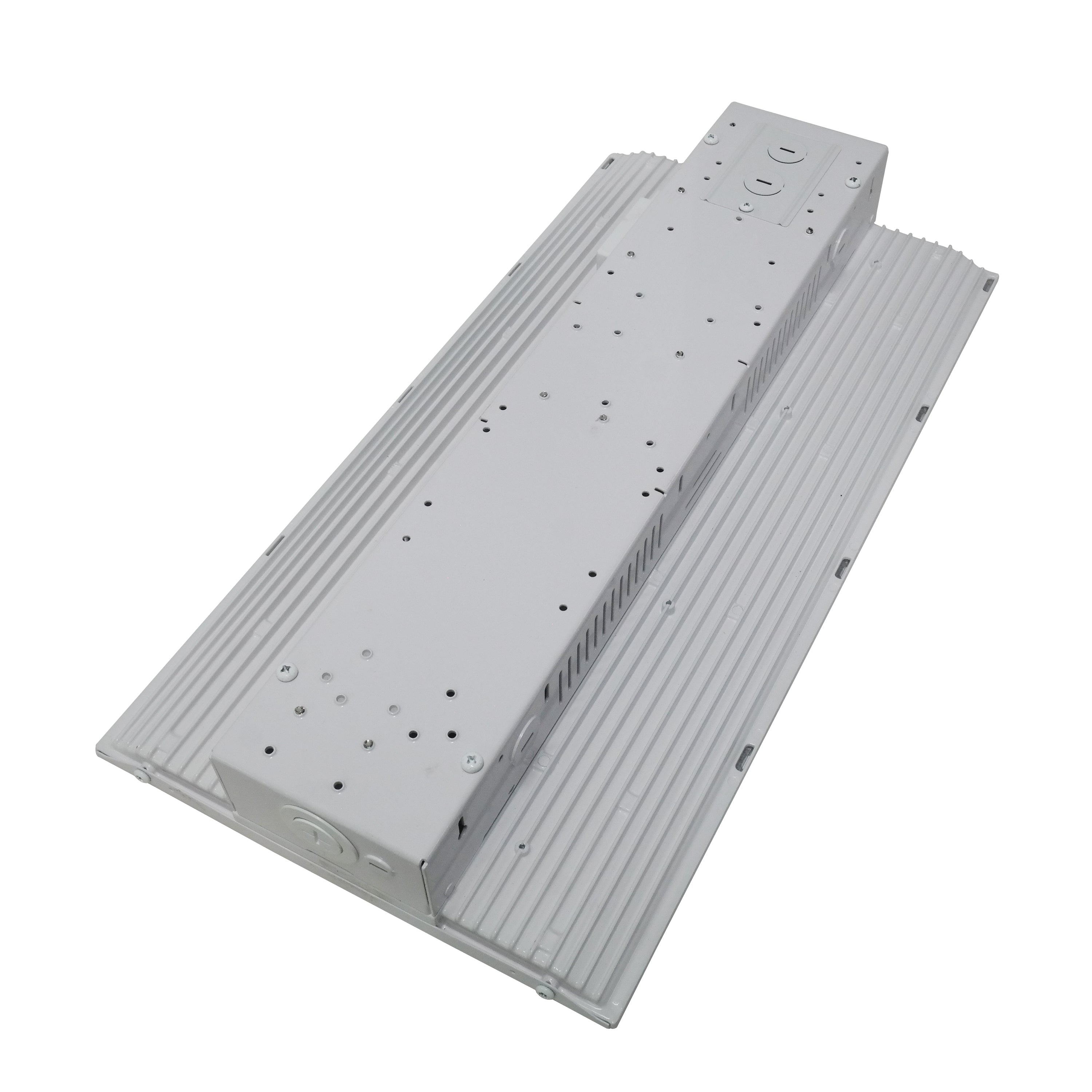

  • GradeONE 130W Selectable LED Linear High Bay — Medium, 347-480V, features a rectangular white industrial design with a ribbed surface and multiple small circular holes, shown from a high angle against a white background.
240W Selectable LED Linear High Bay — Medium
SKU
HBLA36LMDULSCTWHE10

240W Selectable LED Linear High Bay — Medium

Max 240W Power Selectable / 120-277V/ 40K-50K / Black / Max 36,000 Lumens/ Emergency Driver 10W
$259.99
$259.99
Retail Price
Contractor Price
Ships in 7-10 Business Days

Qty

Downloads

IES File
Adjustable lumen output and color temperature (CCT)
Four selectable lumen packages: 12,000, 40,000, 50,000, and 60,000 lumens
Emergency driver option available
Sensor-ready for enhanced control and energy savings (sensor and remote sold separately)
Chain-mount kits (includes v-hooks , 1-meter long chain) are standard - come with the fixture
• Optional surface mounting kit provides attachment to solid surfaces*.
• Optional pendant mounting kit provides pendant attachment to 1/2” rigid
conduit*.
• Optional cable mount kit provides luminaire suspension."
Chain-mount kits (includes v-hooks , 1-meter long chain) are standard.
Selectable Wattage

Selectable Wattage

154W / 196W / 242W

347-480V

347-480V

Input voltage

cULus

cULus

Safety listed

Certifications

  • cULus Listed
  • FCC
  • Damp Location
  • 347V–480V
  • 0–10V dimmable
  • CCT and wattage selectable
  • 80+ CRI
  • 5 year warranty

Specifications

Series
HBLA
Wattage
154, 196, 242 (Selectable)
Max Wattage
242
CCT
3000K, 4000K, 5000K (Selectable)
Lumens
24000, 29300, 34700 (Selectable)
Max Lumens
35415
CRI
80
Voltage
347-480V
Light Distribution
Type III
Finish
White
Lens Type
Polycarbonate
Mount
Suspended Mounting
Mounting Height
24' to 36'
Dimmable
Dimming leads AVAILABLE for use in the field
Dimming Type
0-10V
Environmental Rating
Damp Location
Operating Temp
-40°C to 50°C (-40°F to 122 °F)
Surge Protection
6kV
Power Factor
>0.9 at full load
THD
<20% at full load
L70 Hours
135000
Safety Cert
cULus
FCC
FCC Part 15, Subpart B, Class A
Fixture Height
19.7
Fixture Width
2.6
Fixture Length
10.25
Fixture Weight
6.5
Warranty
5-Year Limited Warranty
Shipping
Ships in 7-10 Business Days
