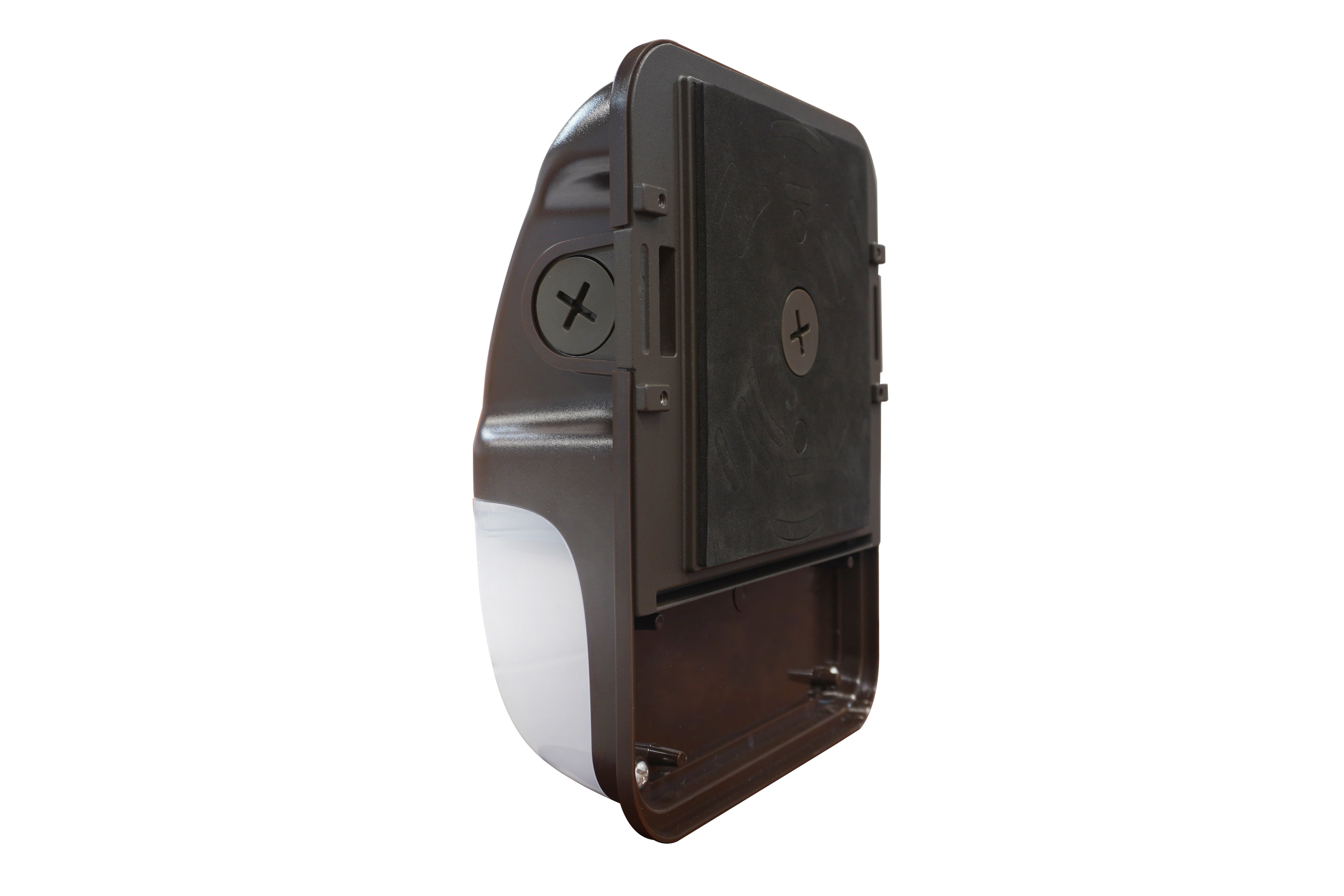

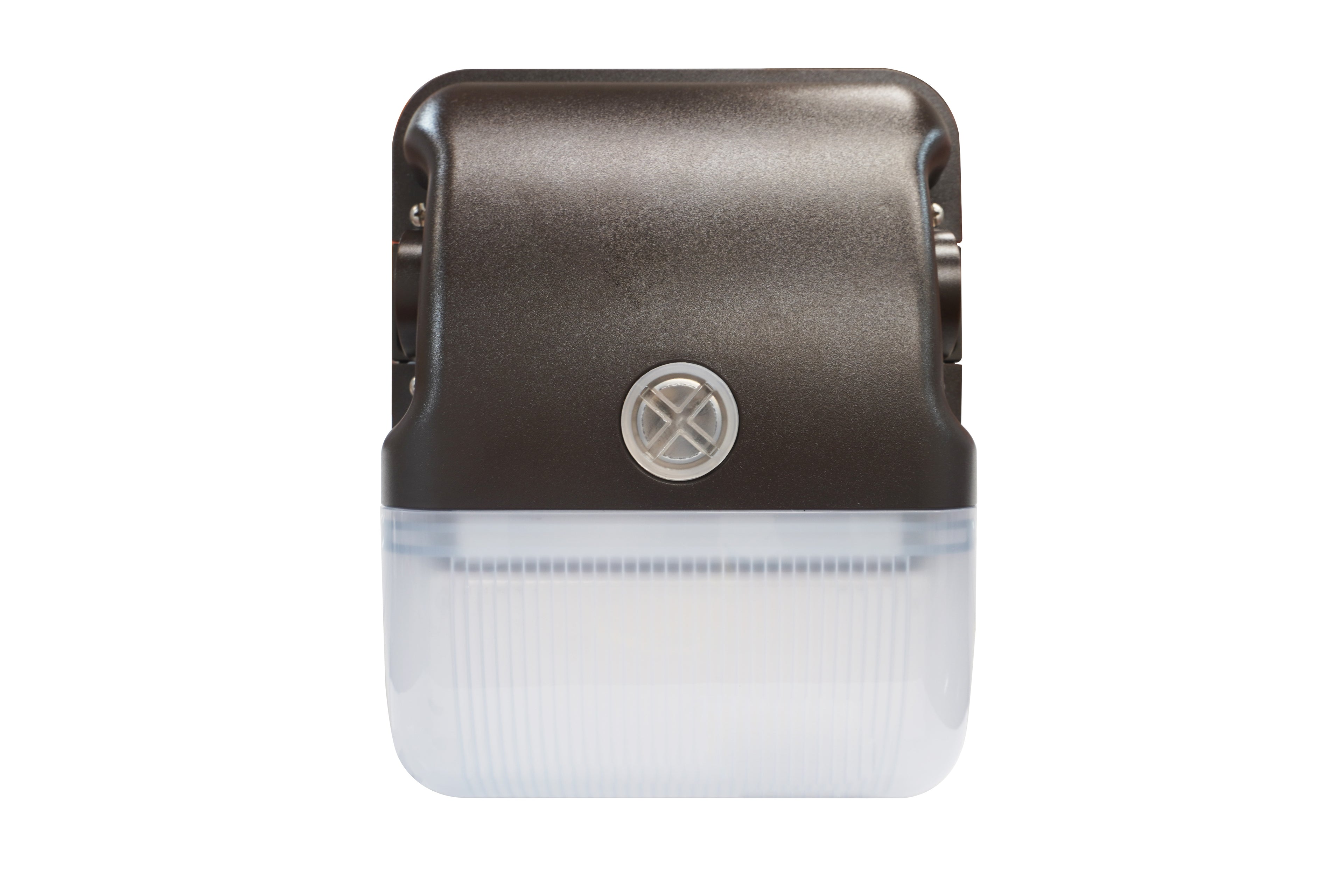

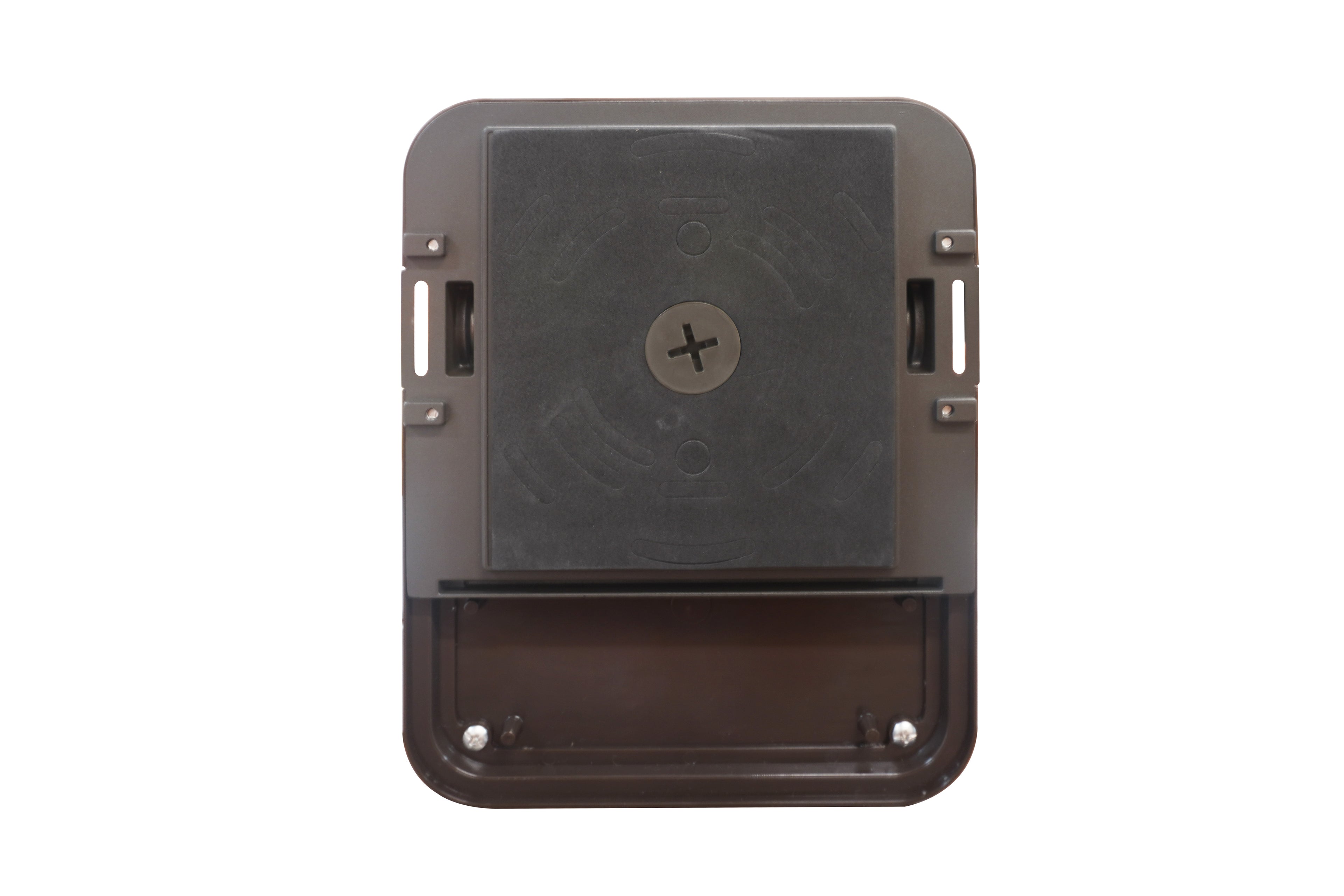

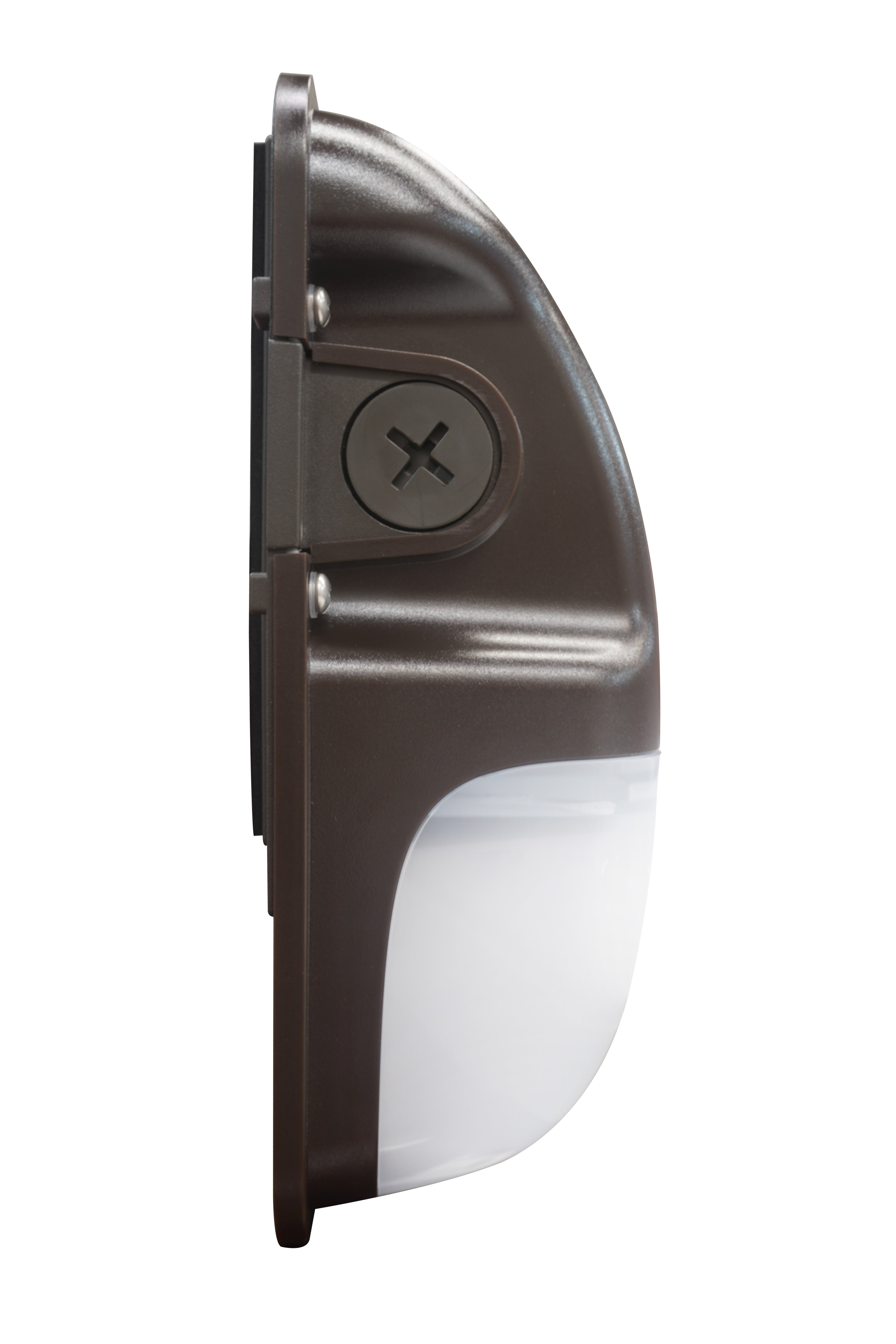

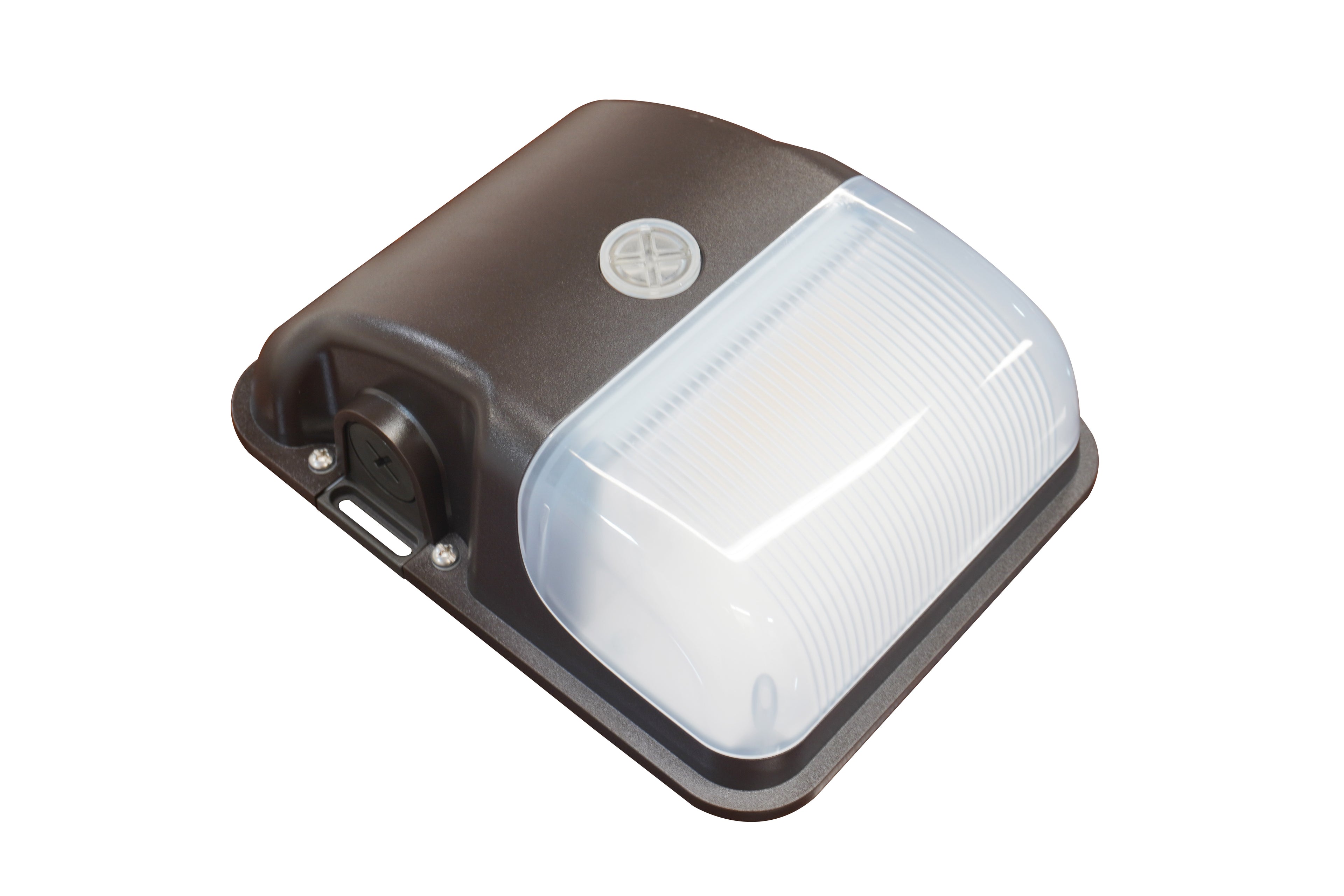

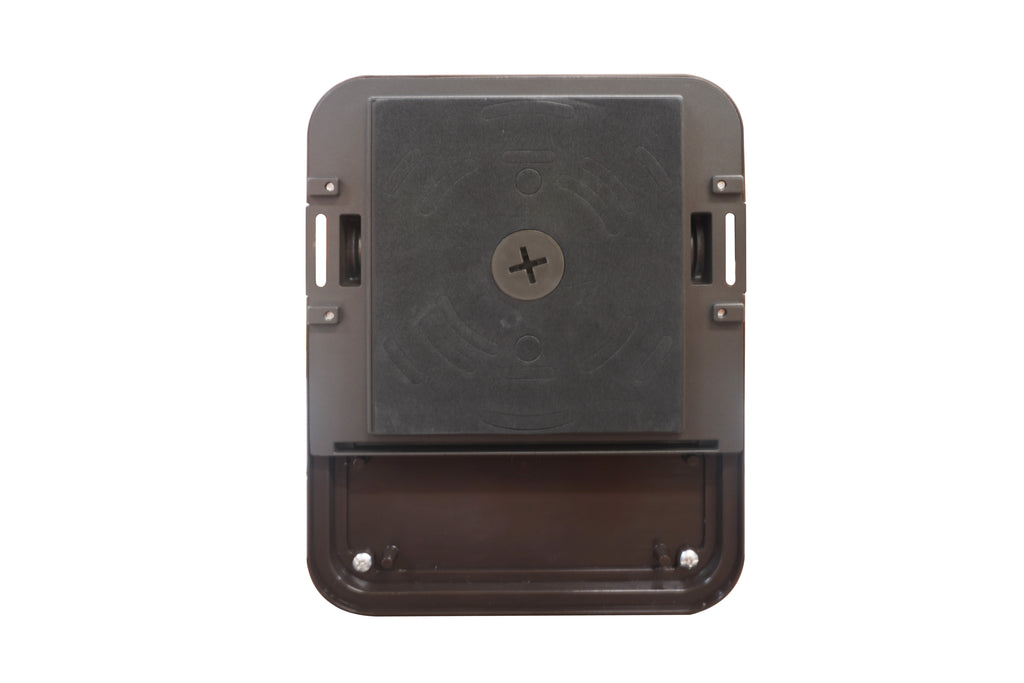

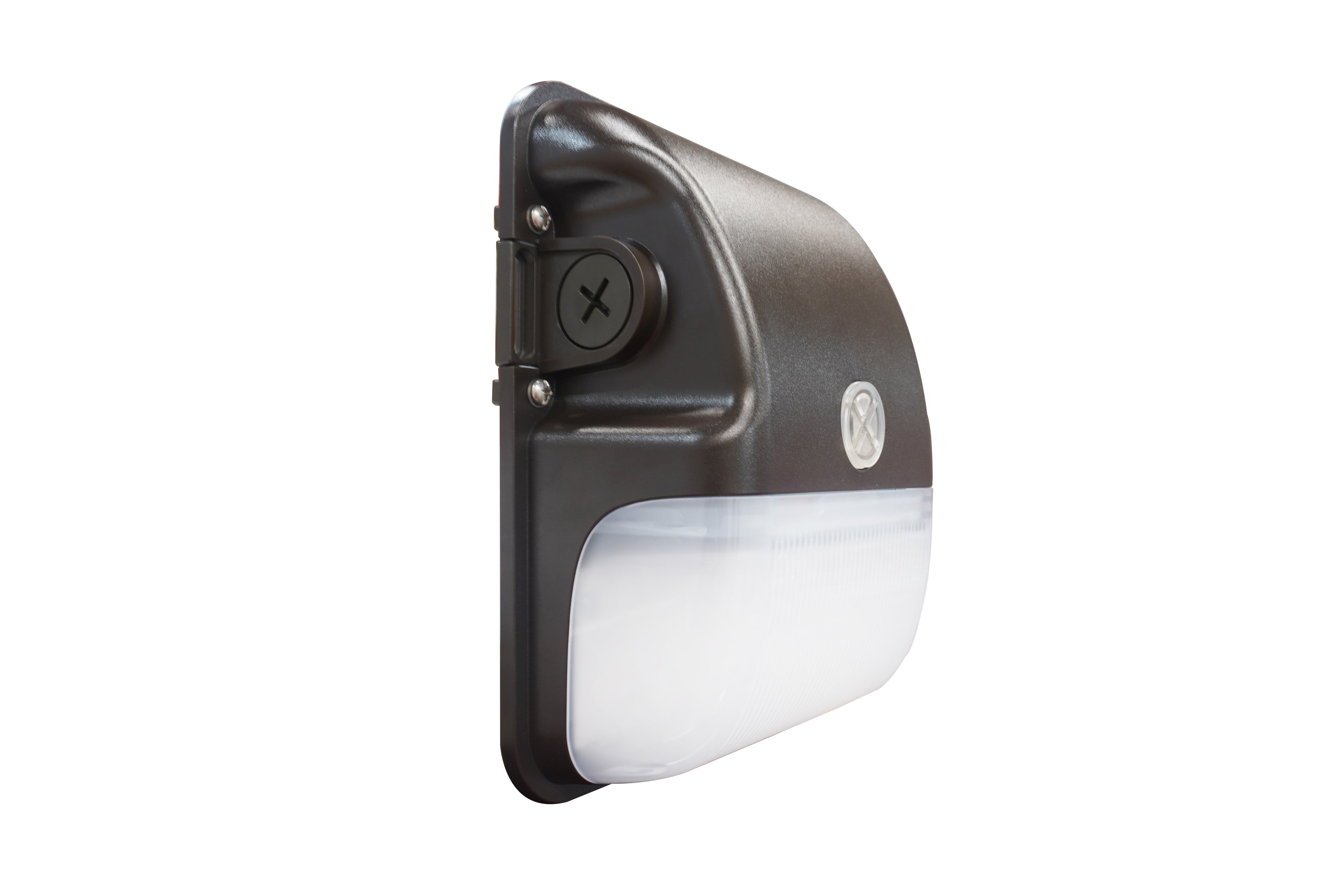

24W Selectable LED Mini Wall Pack — 30K/40K/50K — 3,300 Lumens — Photocell — Dimmable
- Lumens
- 3,300 lm
- CCT
- 3000K–5000K Selectable
- Voltage
- 120-277V
- Sensor
- Integrated Button Photocell
$54.99
Sale price
$54.99
Regular price
Qty
Downloads
Upgrade exterior lighting projects with the GradeONE 24W Mini LED Wall Pack, designed specifically for electrical contractors seeking efficiency and flexibility. This wall pack provides a high lumen output of 3,400, ensuring bright, uniform illumination ideal for entryways and building perimeters. The selectable CCT allows easy adjustment between 3000K, 4000K, and 5000K color temperatures, adapting easily to various application needs. Its integrated photocell, which can be disabled if required, offers smart automated control for energy savings.
Built for long-lasting performance, this LED wall pack features a durable polycarbonate lens and a sleek bronze finish that complements modern exteriors. Rated for wet locations and cULus certified, it assures safe and reliable operation in demanding environments. Operating at 120V/277V with fixed 24-watt power, it delivers robust functionality and includes 4kV surge protection for added safety. Enjoy peace of mind with a 5-year limited warranty—choose GradeONE for your next wall pack lighting project.
Built for long-lasting performance, this LED wall pack features a durable polycarbonate lens and a sleek bronze finish that complements modern exteriors. Rated for wet locations and cULus certified, it assures safe and reliable operation in demanding environments. Operating at 120V/277V with fixed 24-watt power, it delivers robust functionality and includes 4kV surge protection for added safety. Enjoy peace of mind with a 5-year limited warranty—choose GradeONE for your next wall pack lighting project.
Fixed Lumens
3300 lm
Selectable CCT
3000K / 4000K / 5000K
120-277V
Input voltage
Integrated Button Photocell
Sensor
Specifications
Series
WPMA
Wattage
24 (Fixed)
Max Wattage
24
CCT
3000K, 4000K, 5000K (Selectable)
Lumens
3300 (Fixed)
Max Lumens
3300
CRI
80
Voltage
120-277V
Finish
Bronze
Housing
Polycarbonate
Lens Type
Polycarbonate
Mount
Wall Mount
Sensor
Integrated Button Photocell
Sensor Details
The integrated photocell can be disabled with a dip-switch
Environmental Rating
Wet Location
Operating Temp
-40°C to 40°C (-40° F to 104°F)
Surge Protection
4kV
Power Factor
>0.9 at full load
THD
<20% at full load
L70 Hours
50000
Safety Cert
cULus
FCC
FCC Part 15, Subpart B, Class A
Fixture Height
8.42
Fixture Width
2.92
Fixture Length
6.65
Fixture Weight
1.66
Warranty
5-Year Limited Warranty
