25W LED Surface Mount Fixture (LS1), 4000K
$29.99
Sale price
$29.99
Regular price
Skip to product information
Final Sale
SKU
LS1-10S-UNV-40
25W LED Surface Mount Fixture (LS1), 4000K
$29.99
Sale price
$29.99
Regular price
Retail Price
Contractor Price
(Log in to view contractor pricing)
Qty
Downloads

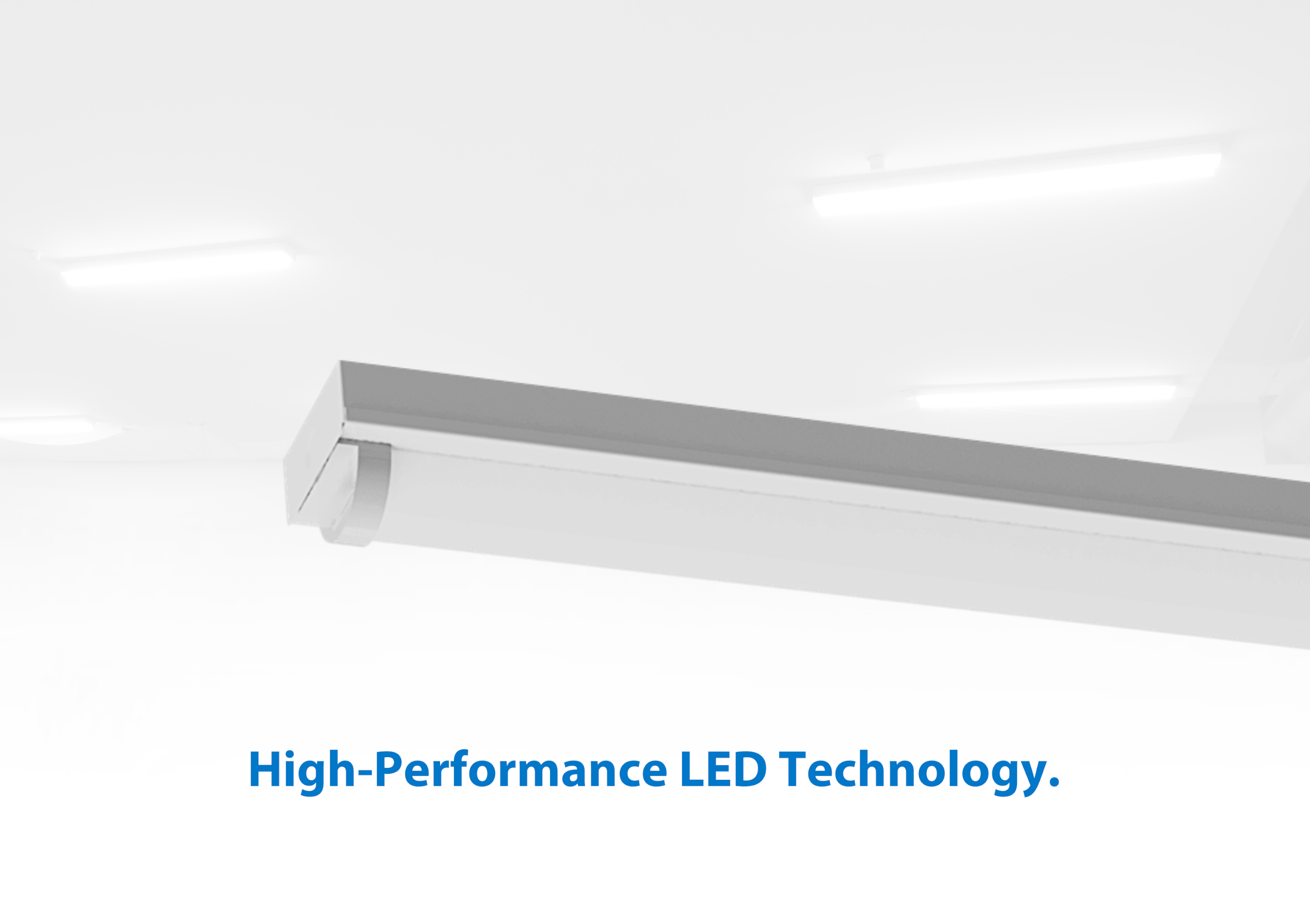

Slim, cost-effective replacement for fluorescent and wraparound fixtures
High-efficacy LED performance (115+ Lm/W) with selectable output options
0-10V dimming with consistent, flicker-free operation

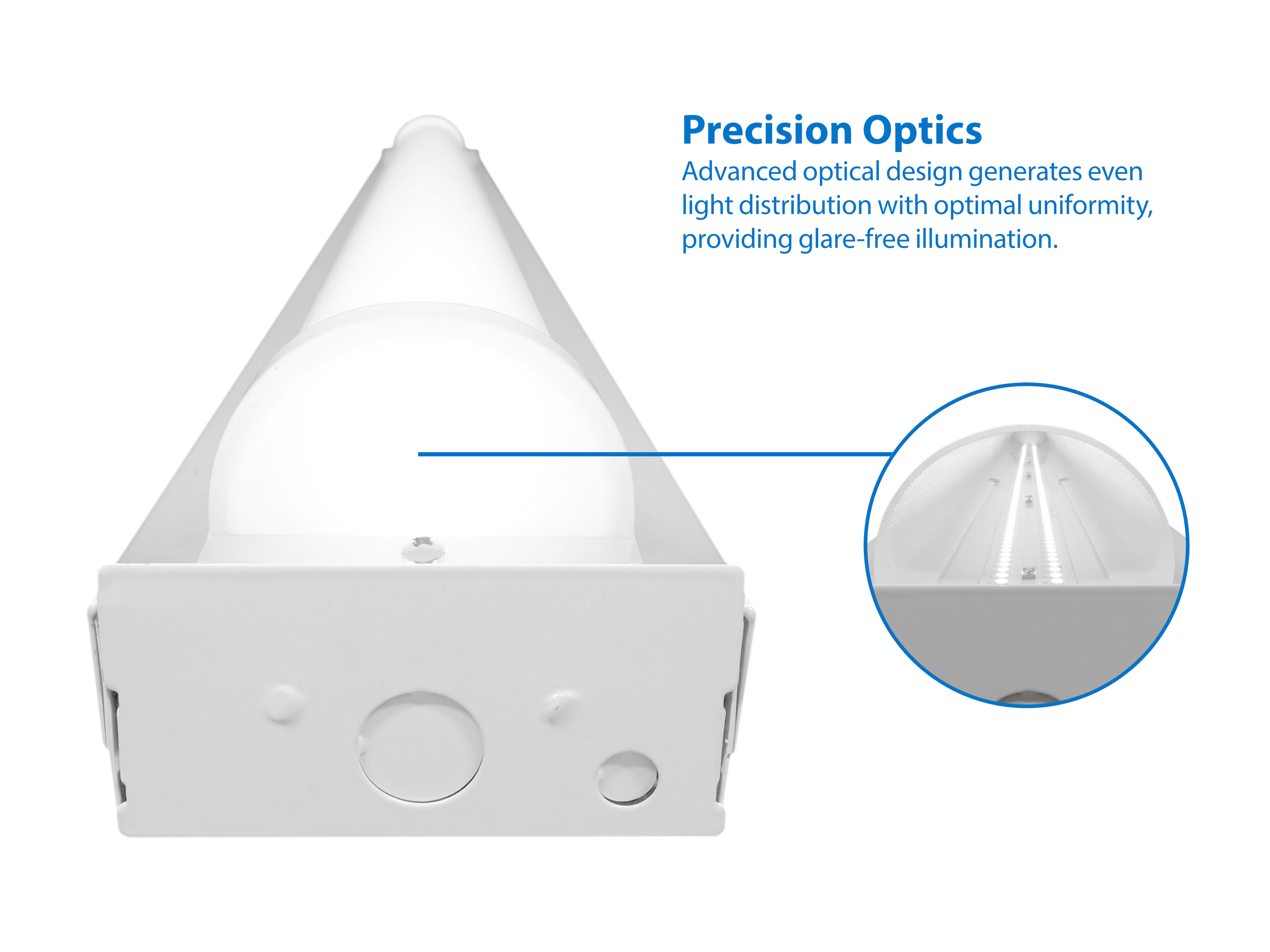

Diffuser design provides smooth, uniform illumination
Compatible with surface mounting and continuous row installations
High-efficacy LED performance (115+ Lm/W) with selectable output options
0-10V dimming with consistent, flicker-free operation
Diffuser design provides smooth, uniform illumination
Compatible with surface mounting and continuous row installations
1x Fixture
2x Screws
3x Wire Nuts
2x Screws
3x Wire Nuts
Fixed Wattage
25W
120-277V
Input voltage
cULus
Safety listed
Specifications
Series
LS1
Wattage
25 (Fixed)
Max Wattage
25
CCT
4000K (Fixed)
Max Lumens
2948
CRI
80
Voltage
120-277V
Beam Angle
114°
Finish
White
Housing
Steel
Lens Type
Frosted Polycarbonate
Mount
Surface Mount
Dimmable
Dimming leads AVAILABLE for use in the field
Dimming Type
0-10V
Environmental Rating
Damp Location
Operating Temp
-18°C to 49°C (0°F to 120°F)
Power Factor
>0.9 at full load
THD
<20% at full load
L70 Hours
54000
Safety Cert
cULus
FCC
FCC Part 15, Subpart B, Class A
RoHS
Yes
Fixture Height
3.75
Fixture Width
4.4
Fixture Length
48.04
Fixture Weight
6.4
Warranty
5-Year Limited Warranty
Shipping
Same or Next Day Shipping
