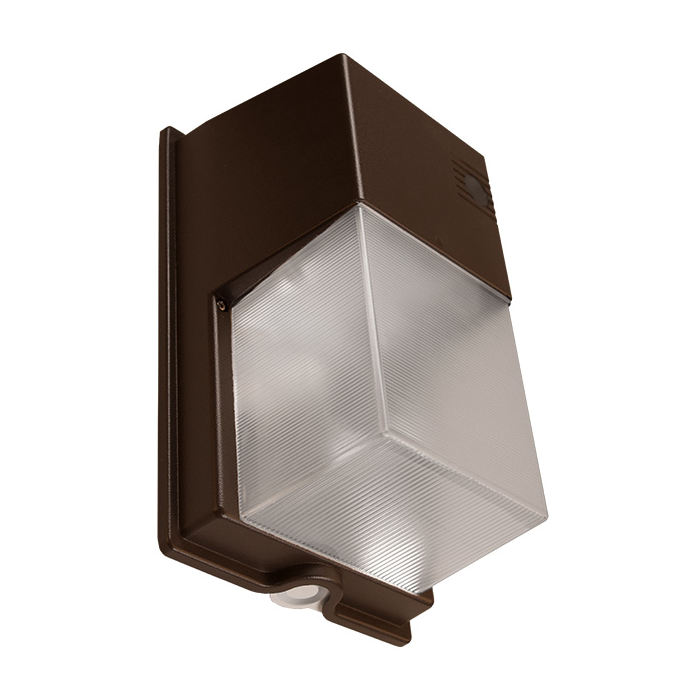

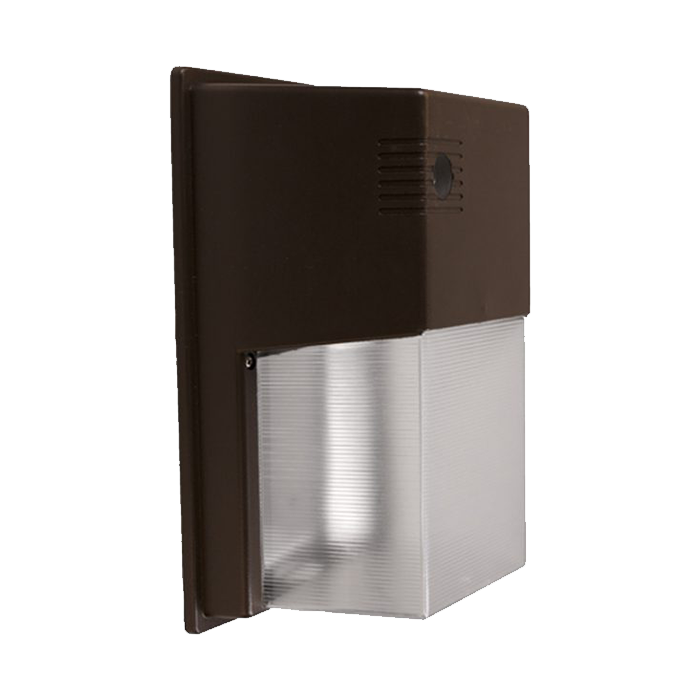

29W LED Cutoff Wall Pack
$99.99
Sale price
$99.99
Regular price
Skip to product information
Same or Next Day Shipping
SKU
OWR3030MV50BZ
29W LED Cutoff Wall Pack
- Lumens
- 3,643 lm
- CCT
- 5000K
- Voltage
- 120-277V
- Sensor
- Integrated Photocell
$99.99
Sale price
$99.99
Regular price
Qty
Downloads
Utilizes advanced LED technology with CCT of 5000K
Input voltage of 120-277VAC
Fine-textured, UV-stabilized bronze finish
Fixture mounts directly to J-Boxes with screws
Single-piece, injection-molded lens
Input voltage of 120-277VAC
Fine-textured, UV-stabilized bronze finish
Fixture mounts directly to J-Boxes with screws
Single-piece, injection-molded lens
3x Wire Nuts
Fixed Lumens
3643 lm
Fixed CCT
5000K
120-277V
Input voltage
Integrated Photocell
Sensor
Certifications
Specifications
Series
OWR3
Wattage
29 (Fixed)
Max Wattage
29
CCT
5000K (Fixed)
Lumens
3643 (Fixed)
Max Lumens
3643
CRI
70
Voltage
120-277V
Beam Angle
69°
Finish
Bronze
Housing
Die-Cast Aluminum
Lens Type
Polycarbonate
Mount
Wall Mount
Dimmable
Dimming leads AVAILABLE for use in the field
Dimming Type
1-10V
Sensor
Integrated Photocell
Environmental Rating
Wet Location
IP Rating
IP65
Operating Temp
-20°C to 40°C(-4°F to 104°F)
Power Factor
>0.9 at full load
THD
<20% at full load
L70 Hours
54000
Safety Cert
cULus
DLC
DLC v5.1 Standard
FCC
FCC Part 15, Subpart B, Class B
Fixture Height
5.13
Fixture Width
6.75
Fixture Length
11.0
Fixture Weight
3.35
Warranty
5-Year Limited Warranty
Shipping
Same or Next Day Shipping
