305W LED Linear High Bay — 277-480V
$159.99
Sale price
$159.99
Regular price
Skip to product information
Final Sale
Same or Next Day Shipping
SKU
HML1300H50AS
305W LED Linear High Bay — 277-480V
- Lumens
- 42,243 lm
- CCT
- 5000K
- Voltage
- 277-480V
- Sensor
- Sensor-Ready
$159.99
Sale price
$159.99
Regular price
Qty
Downloads

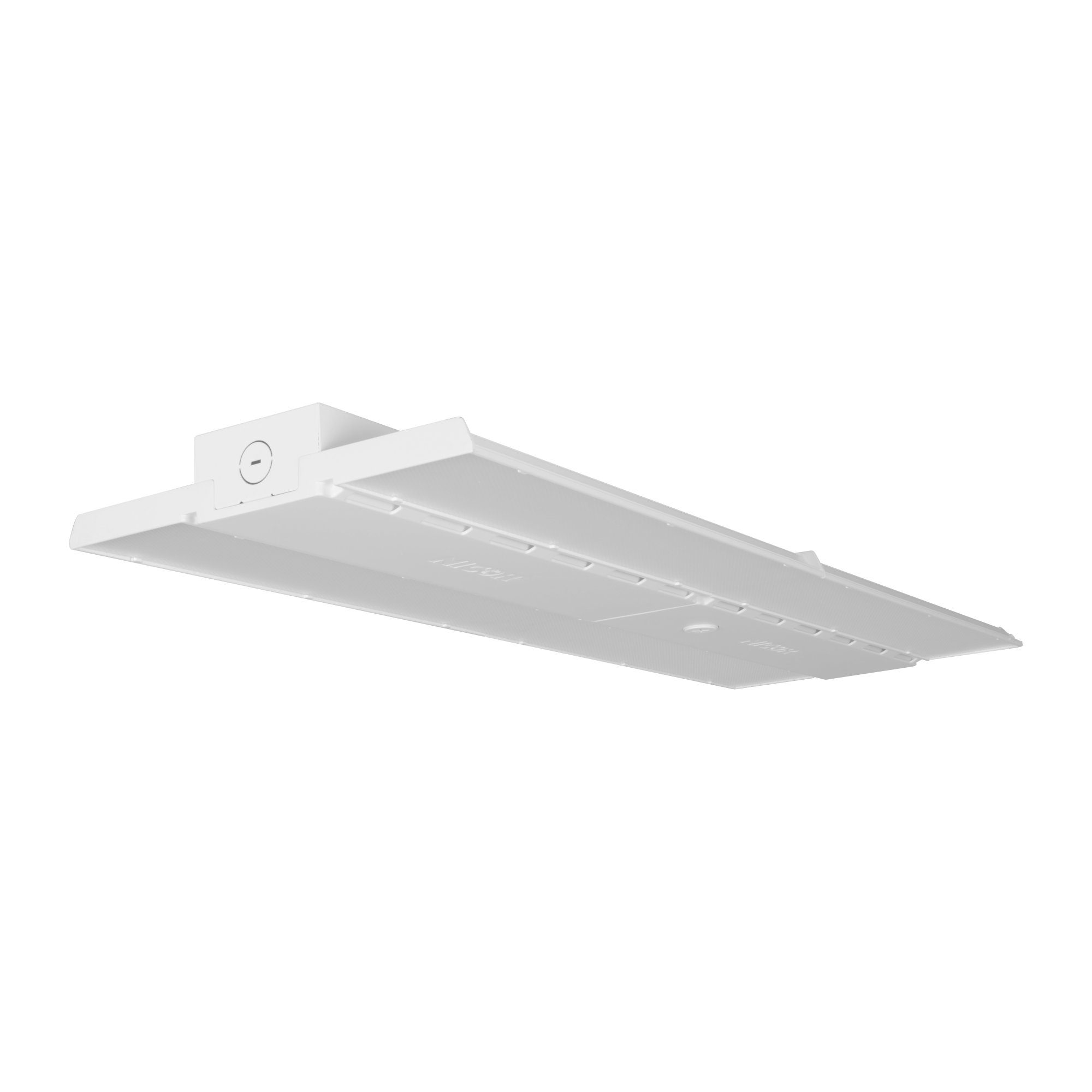

The NICOR Lighting 305W LED Linear High Bay from the HML1 Series delivers 42,243 lumens at 5000K, ideal for large commercial or industrial spaces requiring high-output general illumination. Designed for suspended mounting and compatible with 277-480V input, this fixture features a fully cast aluminum body with integrated cooling and a polycarbonate lens. It offers 0-10V dimming and holds cULus and DLC v5.1 Premium certifications, with a 5-year limited warranty.
1x High-Bay
2x V-Hooks
2x Chains with "S" Hook
2x V-Hooks
2x Chains with "S" Hook
Fixed Lumens
42243 lm
Fixed CCT
5000K
277-480V
Input voltage
Sensor-Ready
Sensor
Certifications

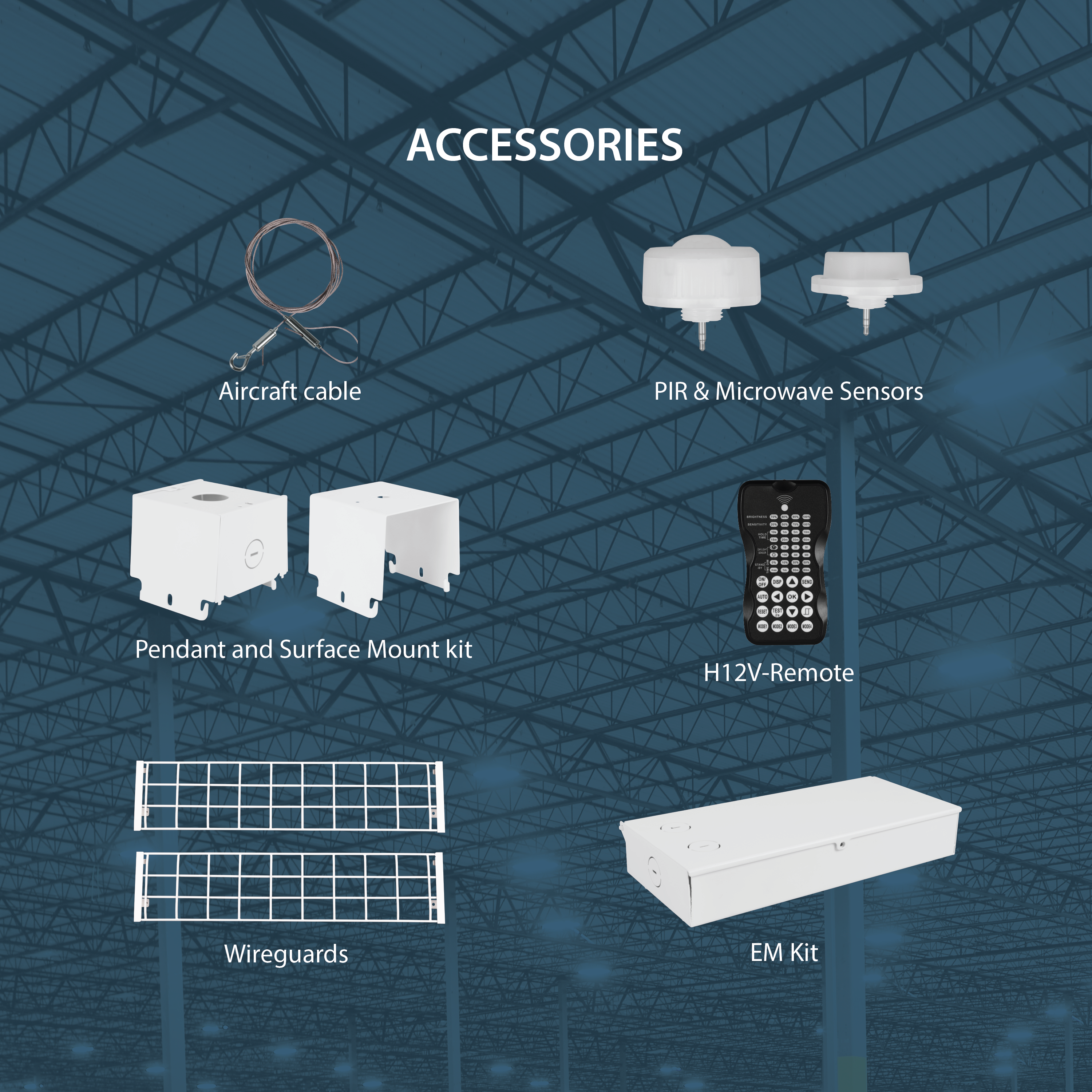

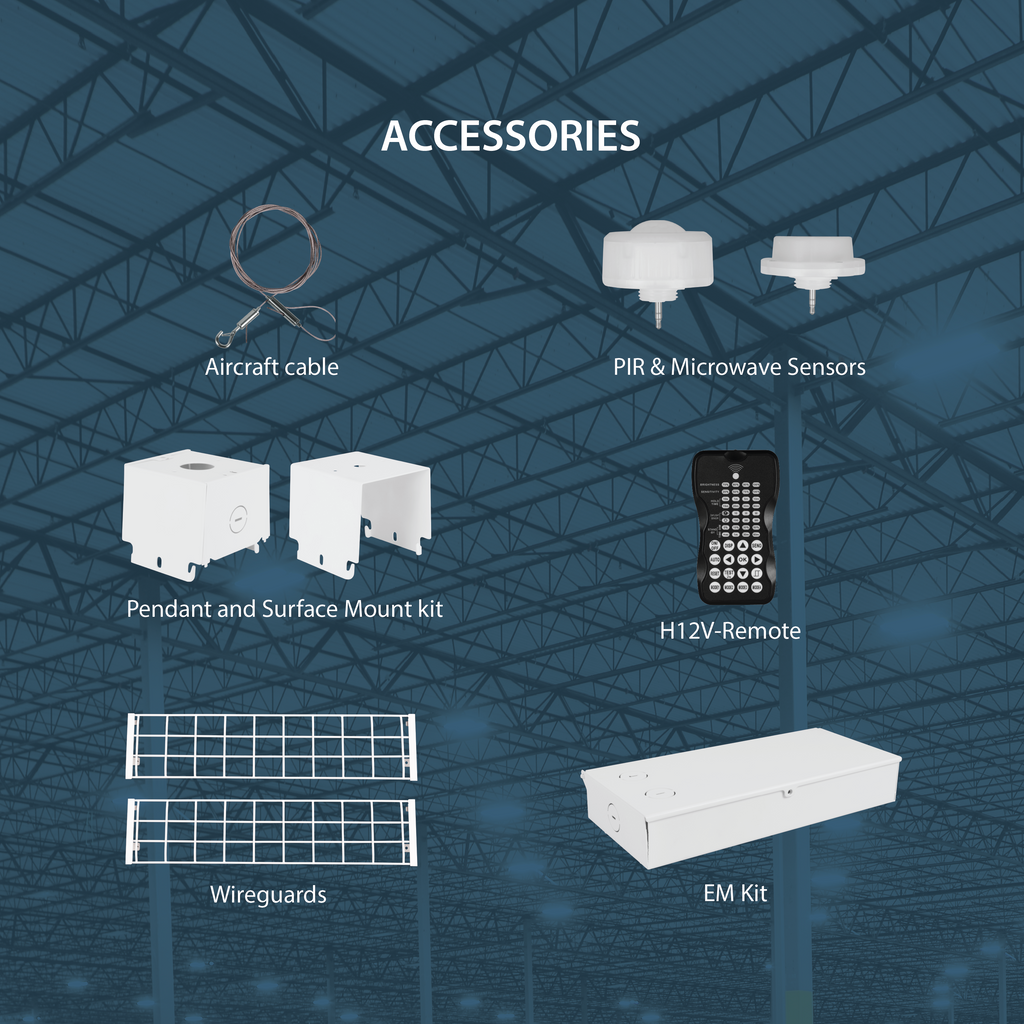

Compatible Accessories
Specifications
Series
HML1
Wattage
305 (Fixed)
Max Wattage
305
CCT
5000K (Fixed)
Lumens
42243 (Fixed)
Max Lumens
42243
CRI
80
Voltage
277-480V
Beam Angle
90° x 90°
Light Distribution
Medium
Finish
White
Housing
Aluminum
Lens Type
Polycarbonate
Mount
Suspended Mounting
Dimmable
Dimming leads AVAILABLE for use in the field
Dimming Type
0-10V
Sensor
Sensor-Ready
Sensor Details
3.5MM Port for Plug-and-Play Controls
Environmental Rating
Damp Location
IK Rating
IK08
Operating Temp
-20°C to 55°C (-4°F to 131°F)
L70 Hours
60000
Safety Cert
cULus
DLC
DLC v5.1 Premium
FCC
FCC Part 15, Subpart B, Class A
RoHS
Yes
Fixture Height
2.09
Fixture Width
10.6
Fixture Length
28.29
Fixture Weight
5.73
Warranty
5-Year Limited Warranty
Shipping
Same or Next Day Shipping
