320W LED Linear High Bay
$139.99
Sale price
$139.99
Regular price
Skip to product information
Final Sale
Same or Next Day Shipping
SKU
HML2320WSU40AS

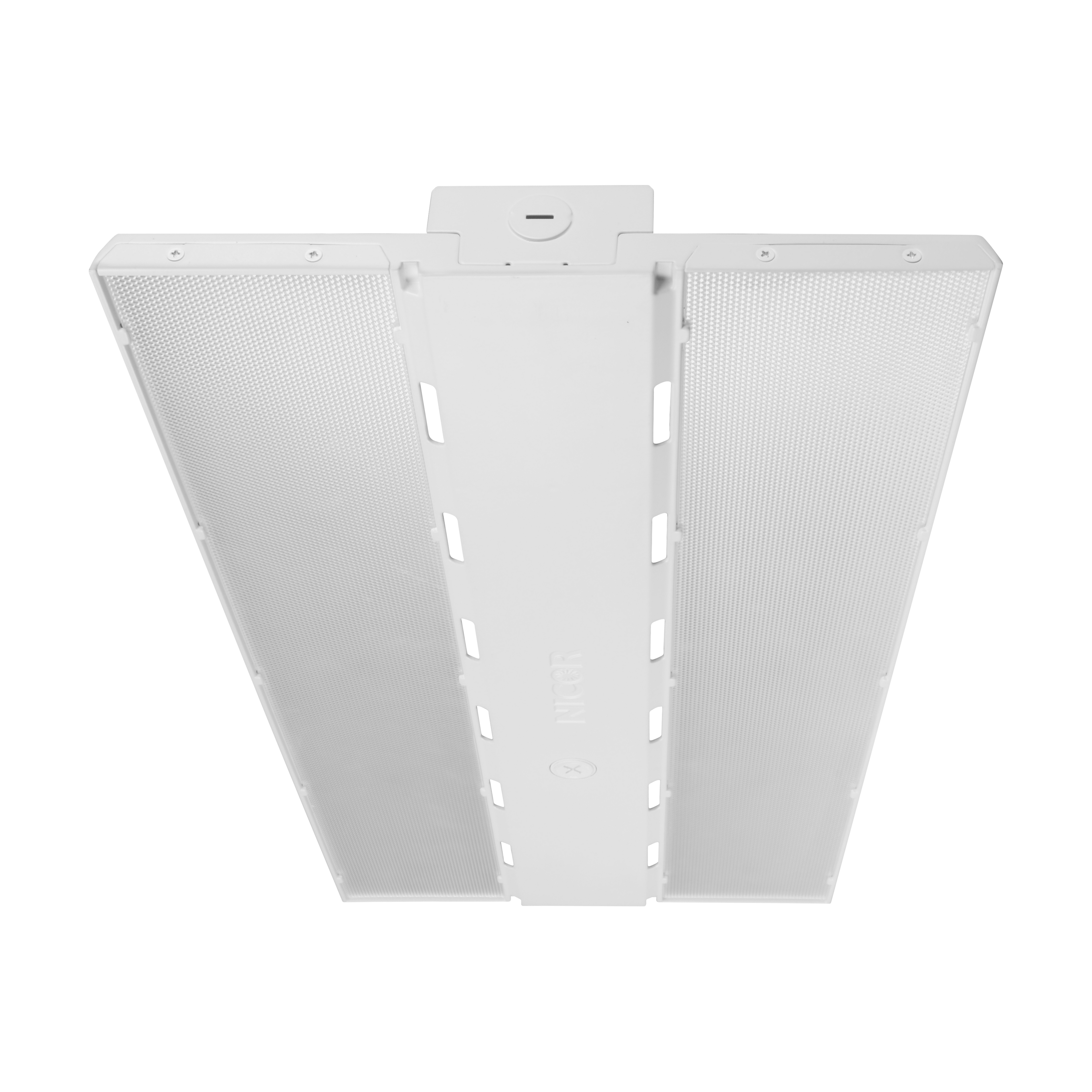

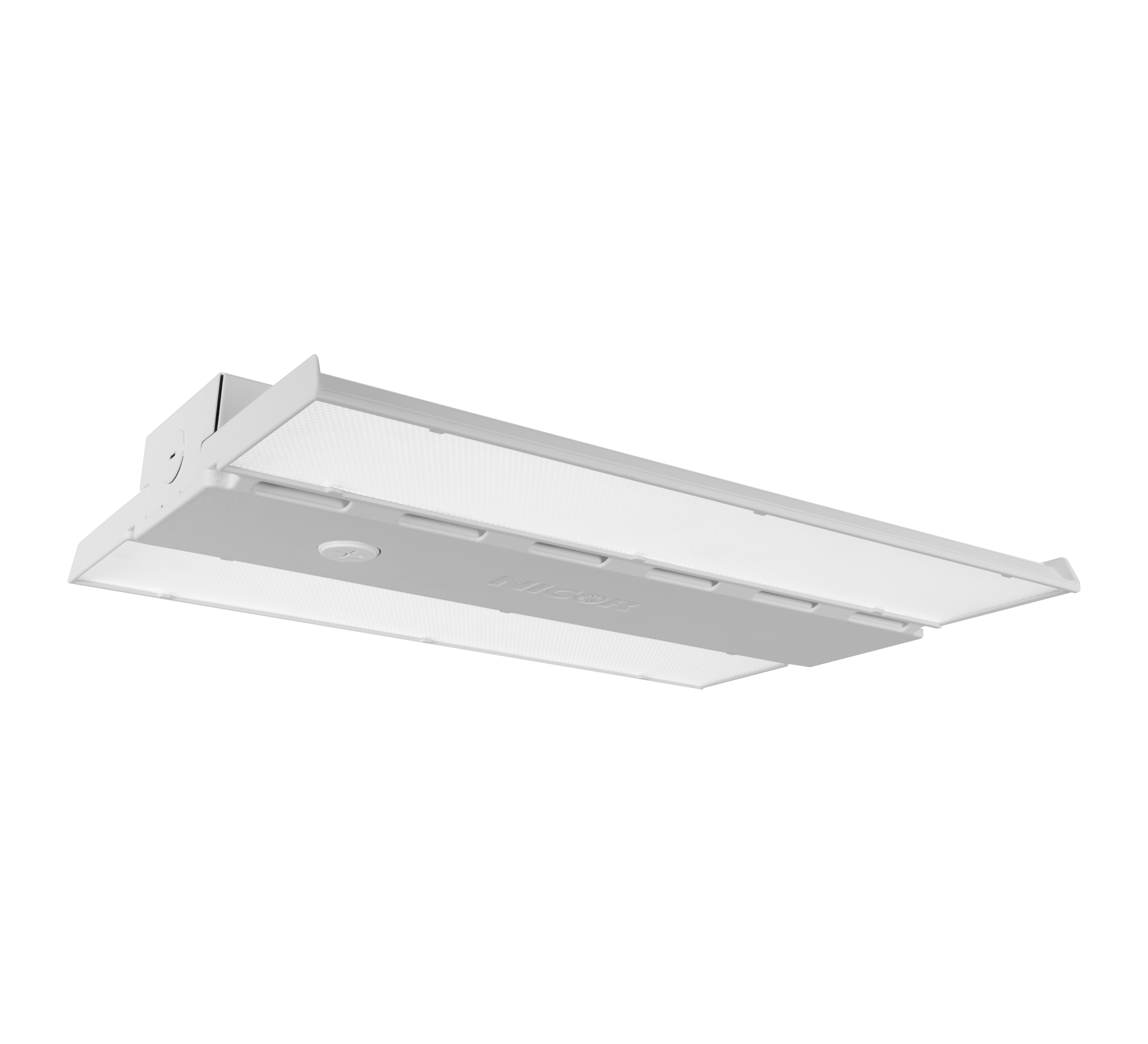

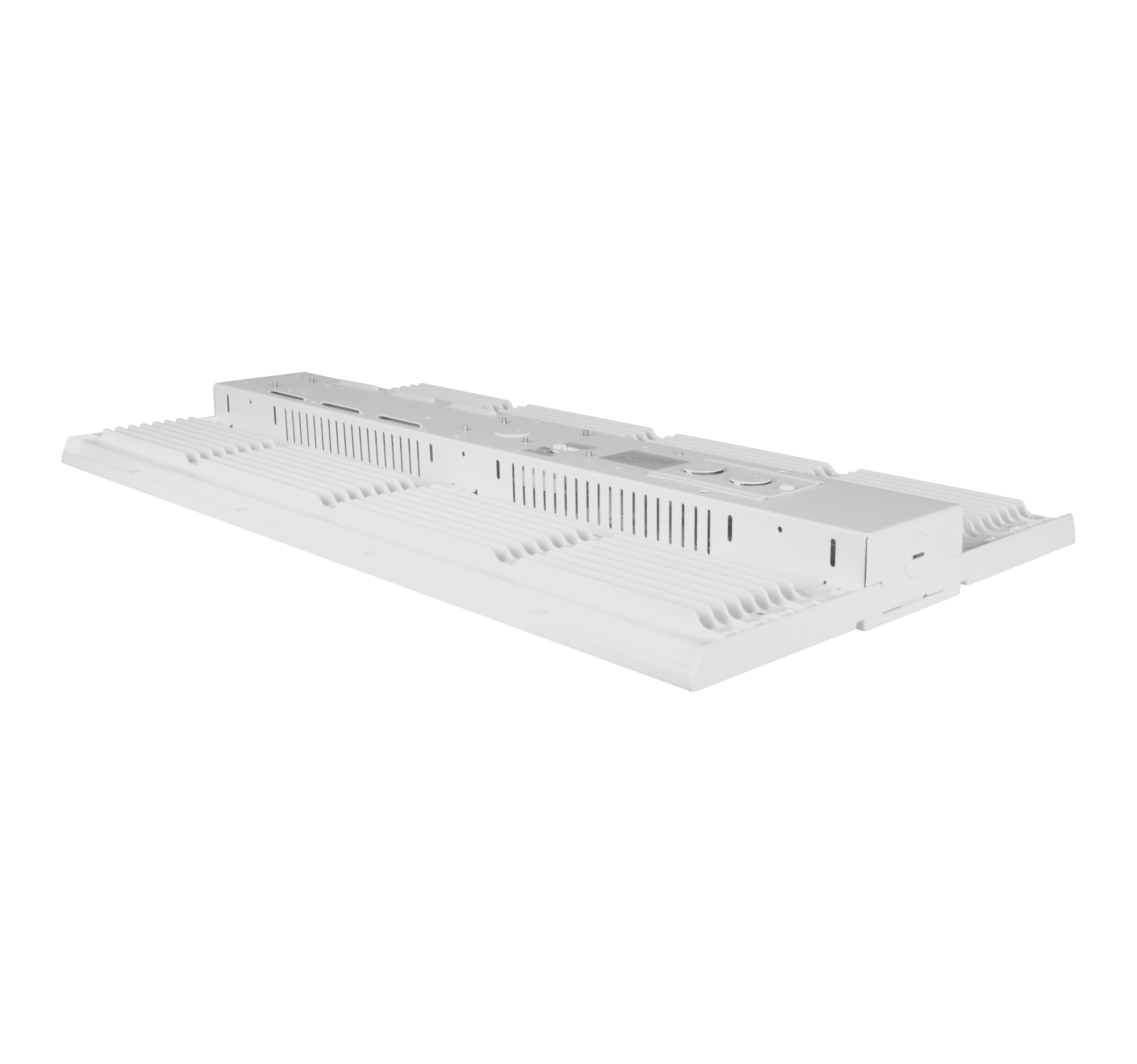

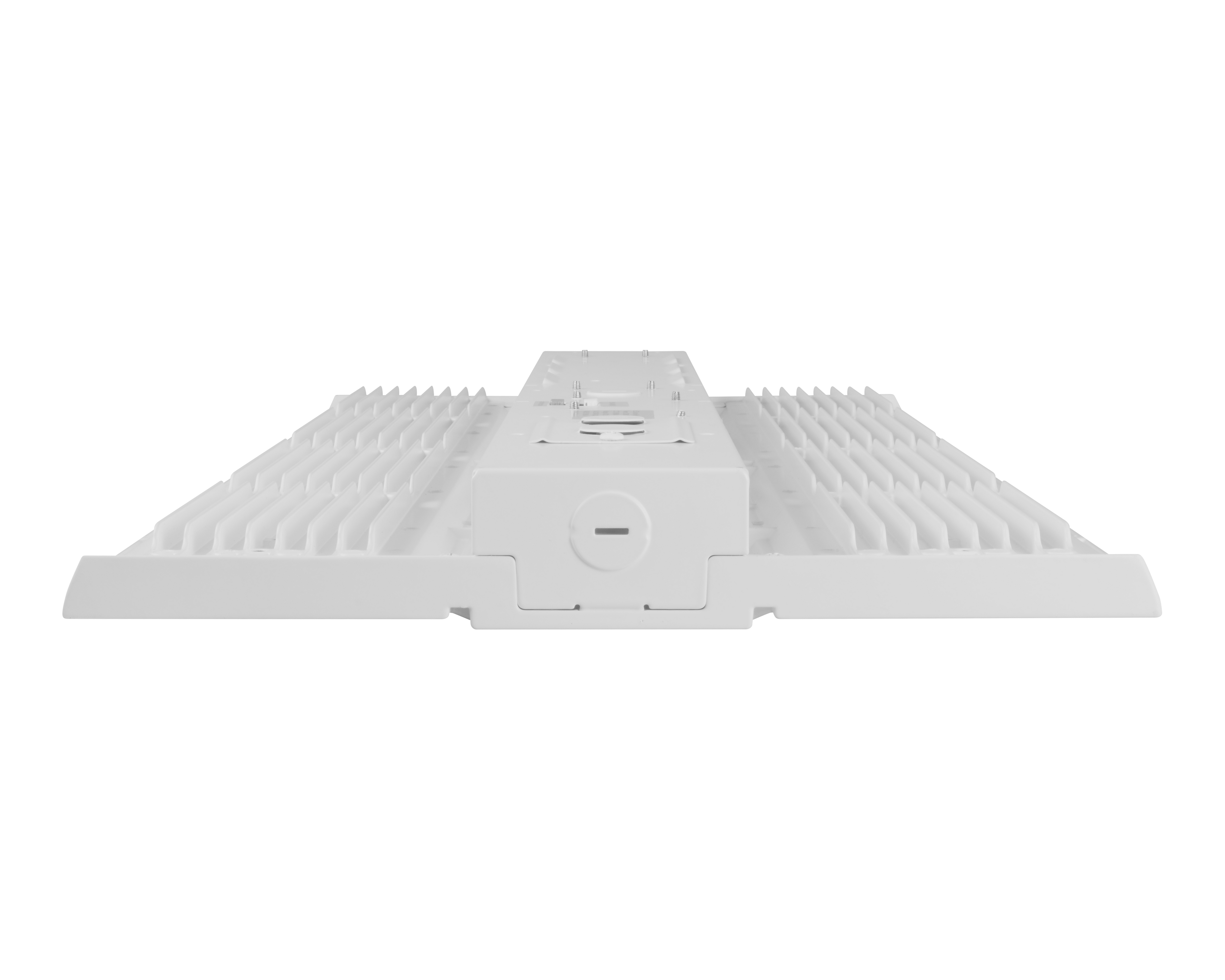

320W LED Linear High Bay
- Lumens
- Up to 45,350 lm Selectable
- CCT
- 4000K
- Voltage
- 120-277V
- Sensor
- Sensor-Ready
$139.99
Sale price
$139.99
Regular price
Qty
Downloads
The NICOR Lighting 320W LED Linear High Bay from the HML2 Series offers selectable wattage (up to 320W) with a fixed 4000K color temperature, delivering up to 45,350 lumens for high-efficiency commercial spaces. Suitable for damp locations, it features suspended mounting, 0-10V dimming, cULus and DLC v5.1 Premium listings, and a rugged aluminum housing for reliable performance. Sensor-ready design with optional BLE NLC controls enhances installation flexibility.
1x High-Bay
2x V-Hooks
2x Chains with "S" Hook
2x V-Hooks
2x Chains with "S" Hook
Selectable Lumens
31418 / 38242 / 45350 lm
Fixed CCT
4000K
120-277V
Input voltage
Sensor-Ready
Sensor
Certifications
Compatible Accessories
Specifications
Series
HML2
Wattage
220, 270, 320 (Selectable)
Max Wattage
320
CCT
4000K (Fixed)
Lumens
31418, 38242, 45350 (Selectable)
Max Lumens
45350
CRI
80
Voltage
120-277V
Beam Angle
90° x 90°
Light Distribution
Medium
Finish
White
Housing
Aluminum
Lens Type
Polycarbonate
Mount
Suspended Mounting
Dimmable
Dimming leads AVAILABLE for use in the field
Dimming Type
0-10V
Sensor
Sensor-Ready
Sensor Details
3.5MM Port for Plug-and-Play Controls
Environmental Rating
Damp Location
IK Rating
IK08
Operating Temp
-20°C to 55°C (-4°F to 131°F)
L70 Hours
60000
Safety Cert
cULus
DLC
DLC v5.1 Premium
FCC
FCC Part 15, Subpart B, Class A
RoHS
Yes
Fixture Height
2.21
Fixture Width
12.96
Fixture Length
23.13
Fixture Weight
8.27
Warranty
5-Year Limited Warranty
Shipping
Same or Next Day Shipping
