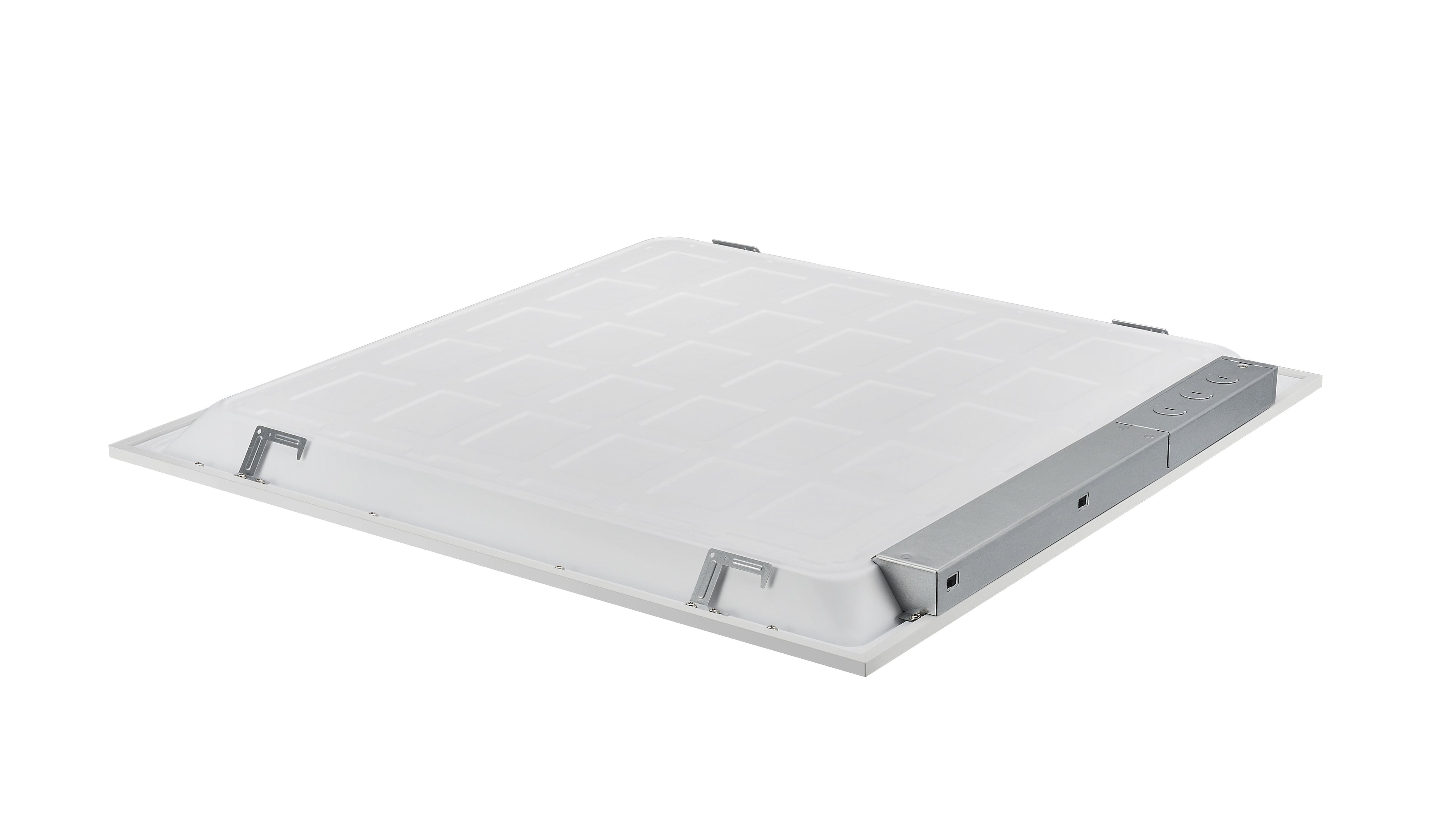

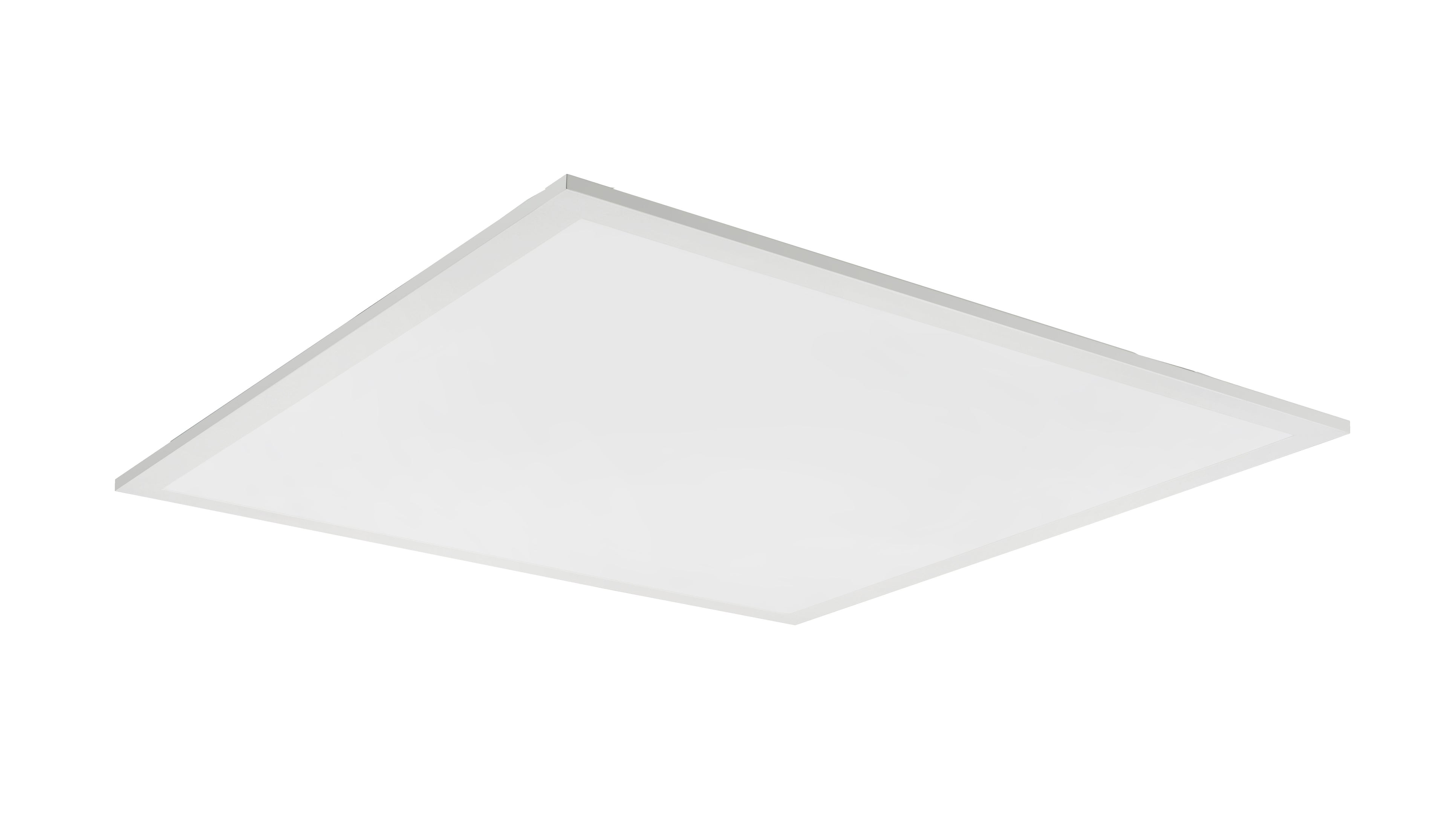

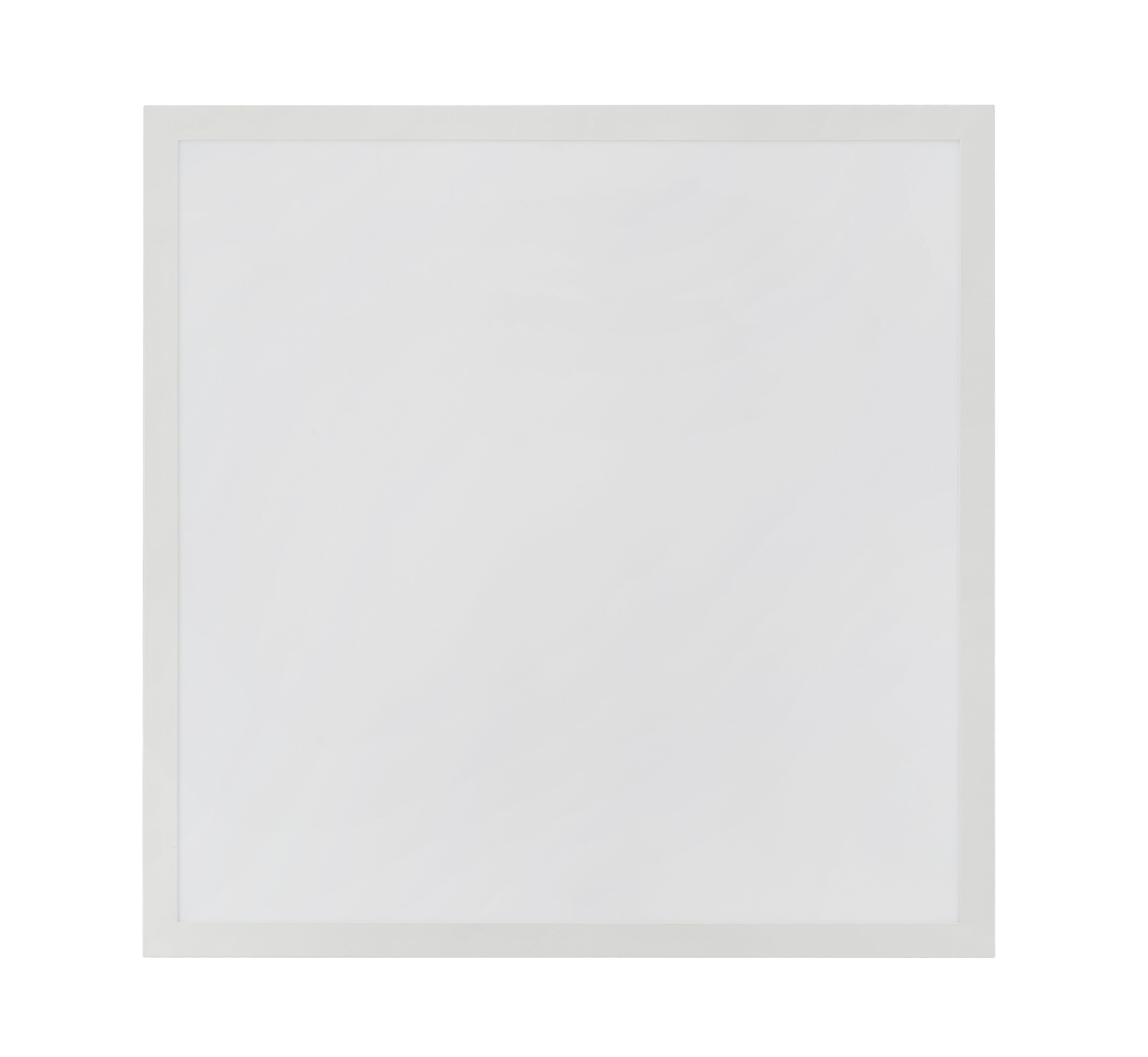

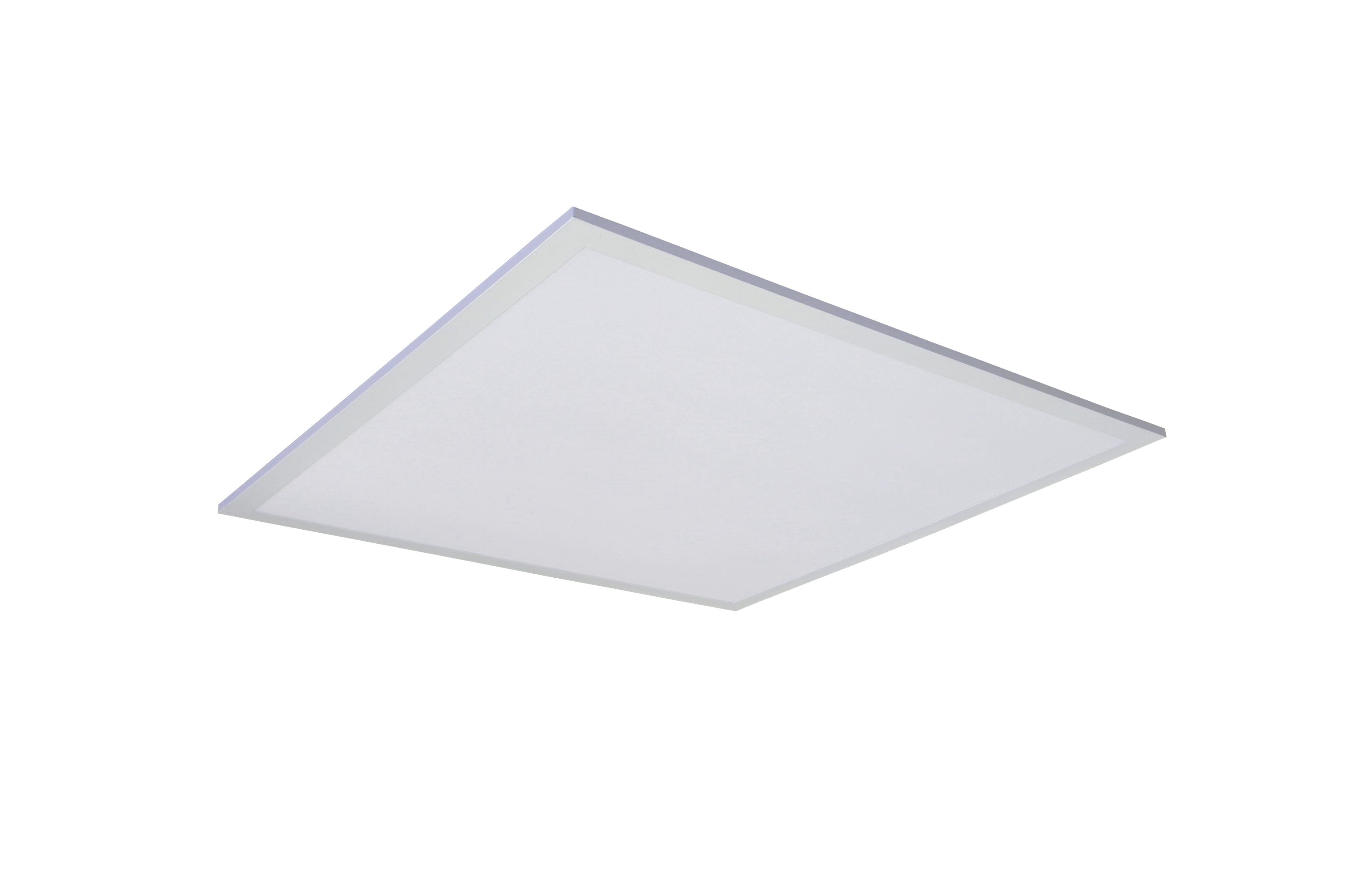

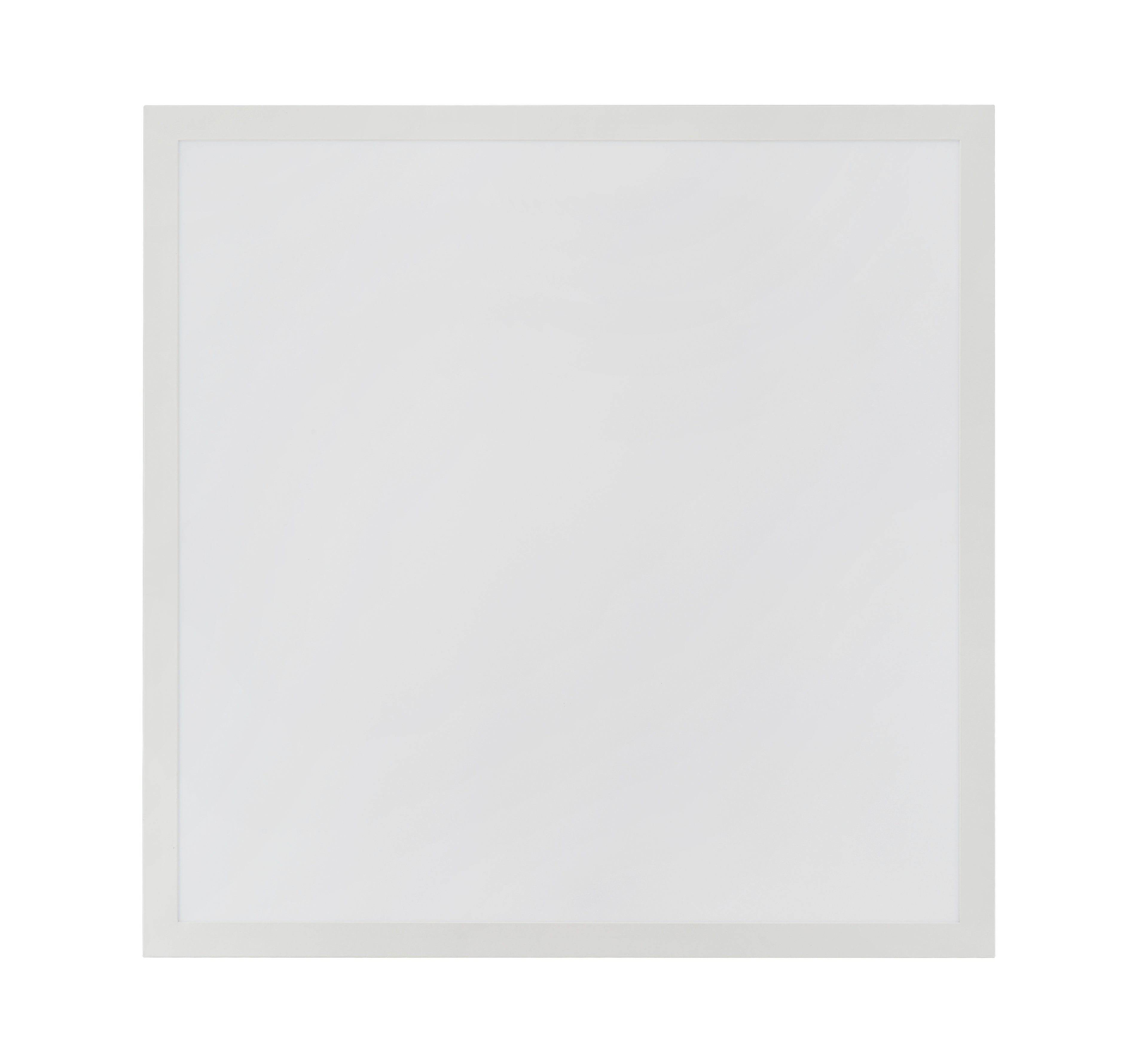

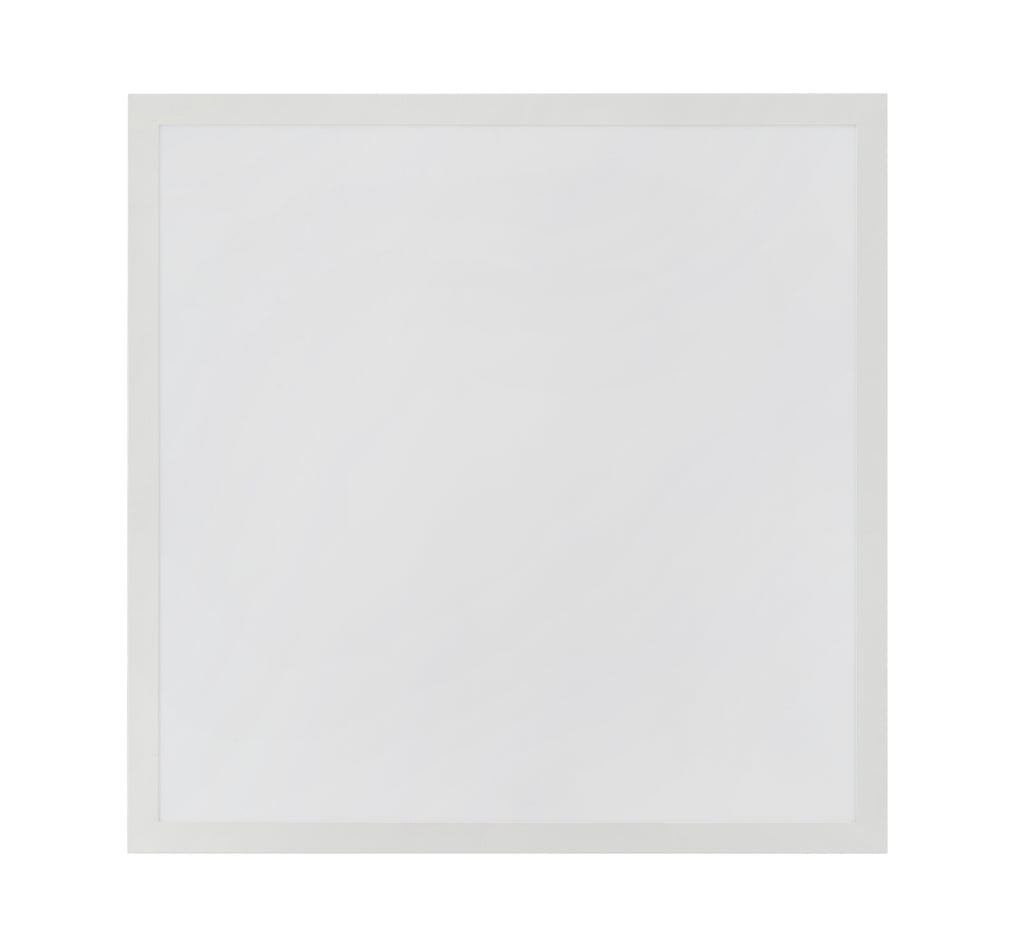

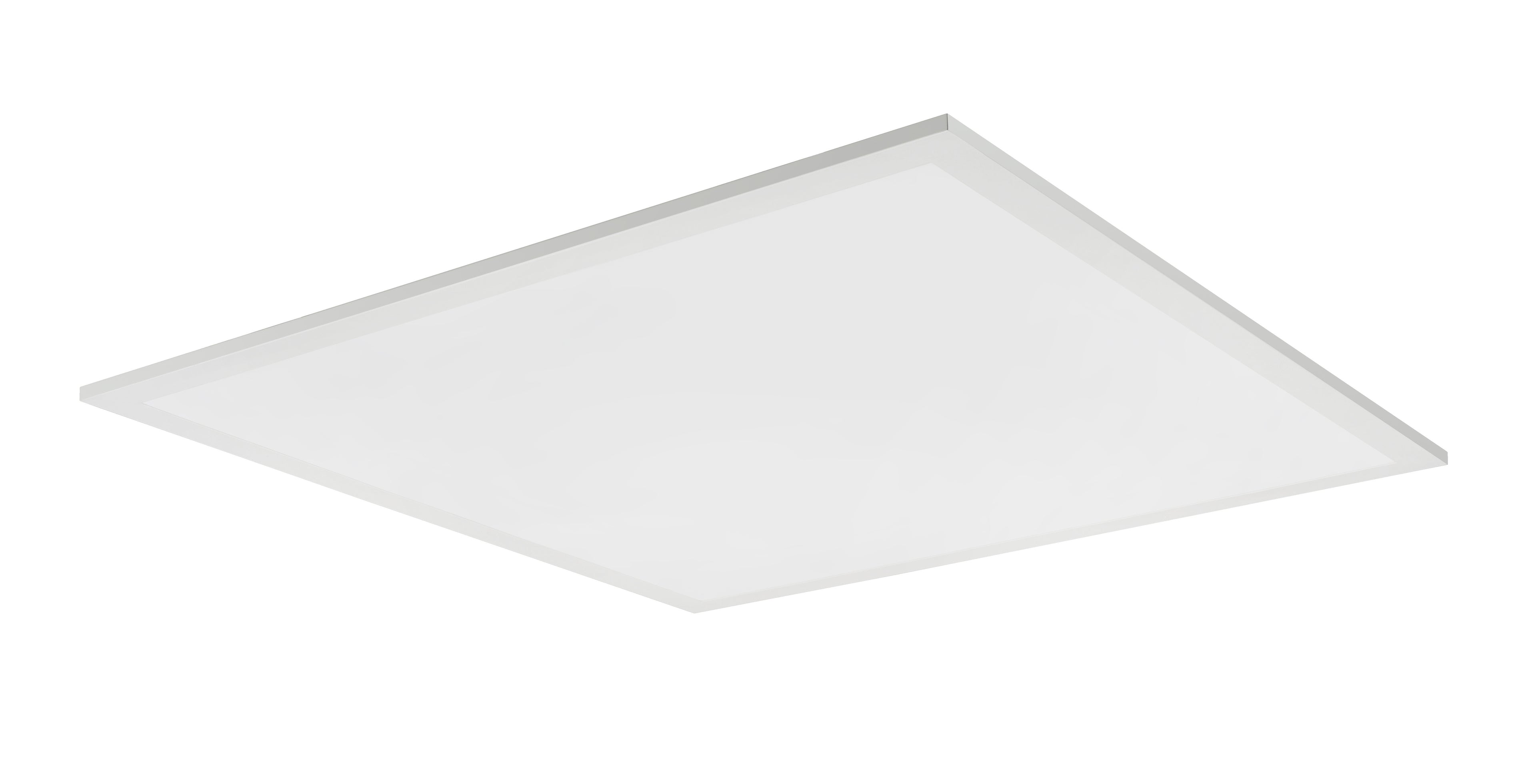

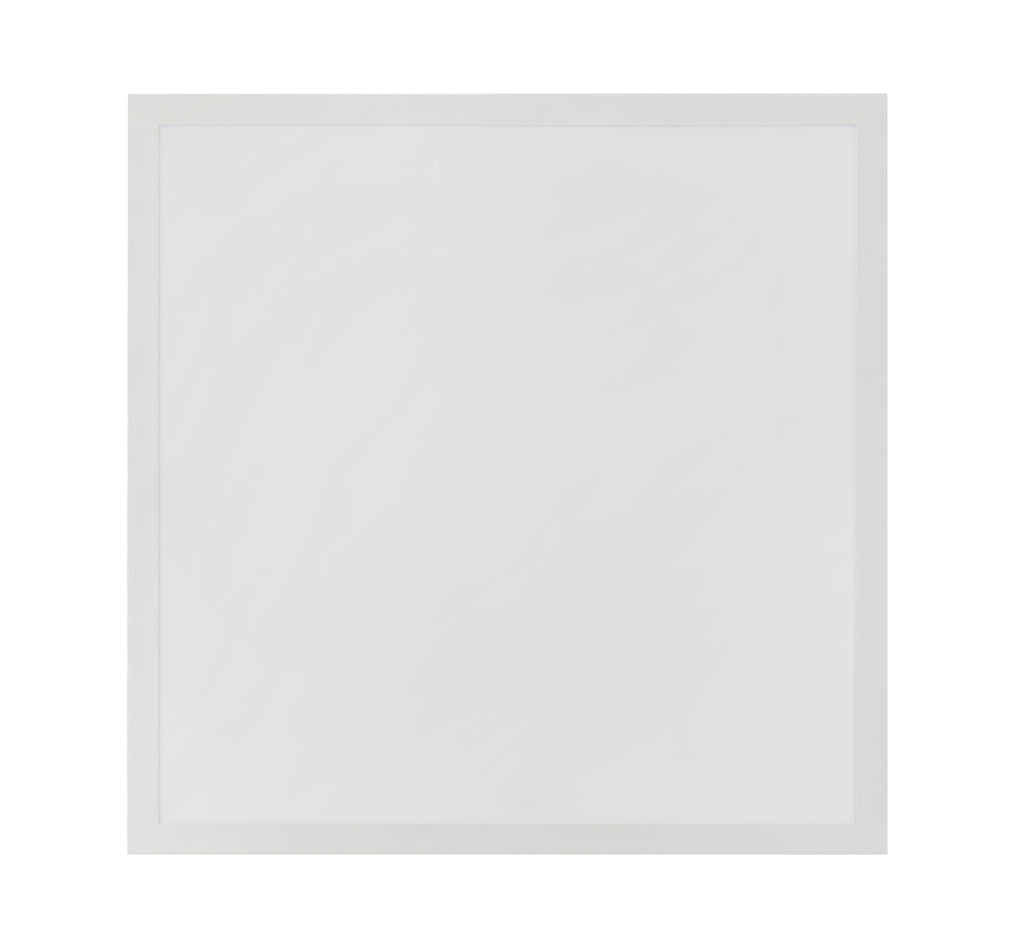

32W Selectable 2x2 LED Recessed Panel
20/28/33 / 5W
$134.99
Sale price
$134.99
Regular price
Skip to product information
SKU
FB2X2A40LWDULSCTWHEB5
32W Selectable 2x2 LED Recessed Panel
$134.99
Sale price
$134.99
Regular price
Retail Price
Contractor Price
(Log in to view contractor pricing)
Qty
Downloads
Designed for performance and flexibility, this LED panel features selectable color temperatures (3500K, 4000K, and 5000K) and adjustable lumen outputs from 2,600 to 4,000 lumens to suit a variety of commercial applications. Delivering smooth, flicker-free illumination with up to 144,000 hours of reliable performance, it combines energy efficiency, easy installation, universal voltage, and 0-10V dimming in a durable, DLC-approved design backed by a 5-year warranty.
Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets. For mounting in plaster or other hard ceiling, see Mounting Kits.
Standard earthquake clips provide secure installation in grid ceilings.
Selectable Wattage
20W / 28W / 32W
120-277V
Input voltage
DLC v5.1 Premium
DLC listed
cULus
Safety listed
Specifications
Series
FB1X4A
Wattage
20, 28, 32 (Selectable)
Max Wattage
32
CCT
3500K, 4000K, 5000K (Selectable)
Lumens
2700, 3600, 4000
Max Lumens
4000
CRI
80
Voltage
120-277V
Beam Angle
115
Finish
White
Housing
Steel
Lens Type
PMMA
Mount
Ceiling Mount, Suspended Mounting
Mounting Height
7' to 10'
Dimmable
Dimming leads AVAILABLE for use in the field
Dimming Type
0-10V
Environmental Rating
Damp Location
Operating Temp
-20°C to 40°C (-4°F to 104°F)
Surge Protection
1kV
Power Factor
>0.9 at full load
THD
<20% at full load
L70 Hours
144000
Safety Cert
cULus
DLC
DLC v5.1 Premium
FCC
FCC Part 15, Subpart B, Class B
Fixture Height
23.7
Fixture Width
1.5
Fixture Length
23.7
Fixture Weight
4.0
Warranty
5-Year Limited Warranty
Shipping
Ships in 3-5 Business Days
