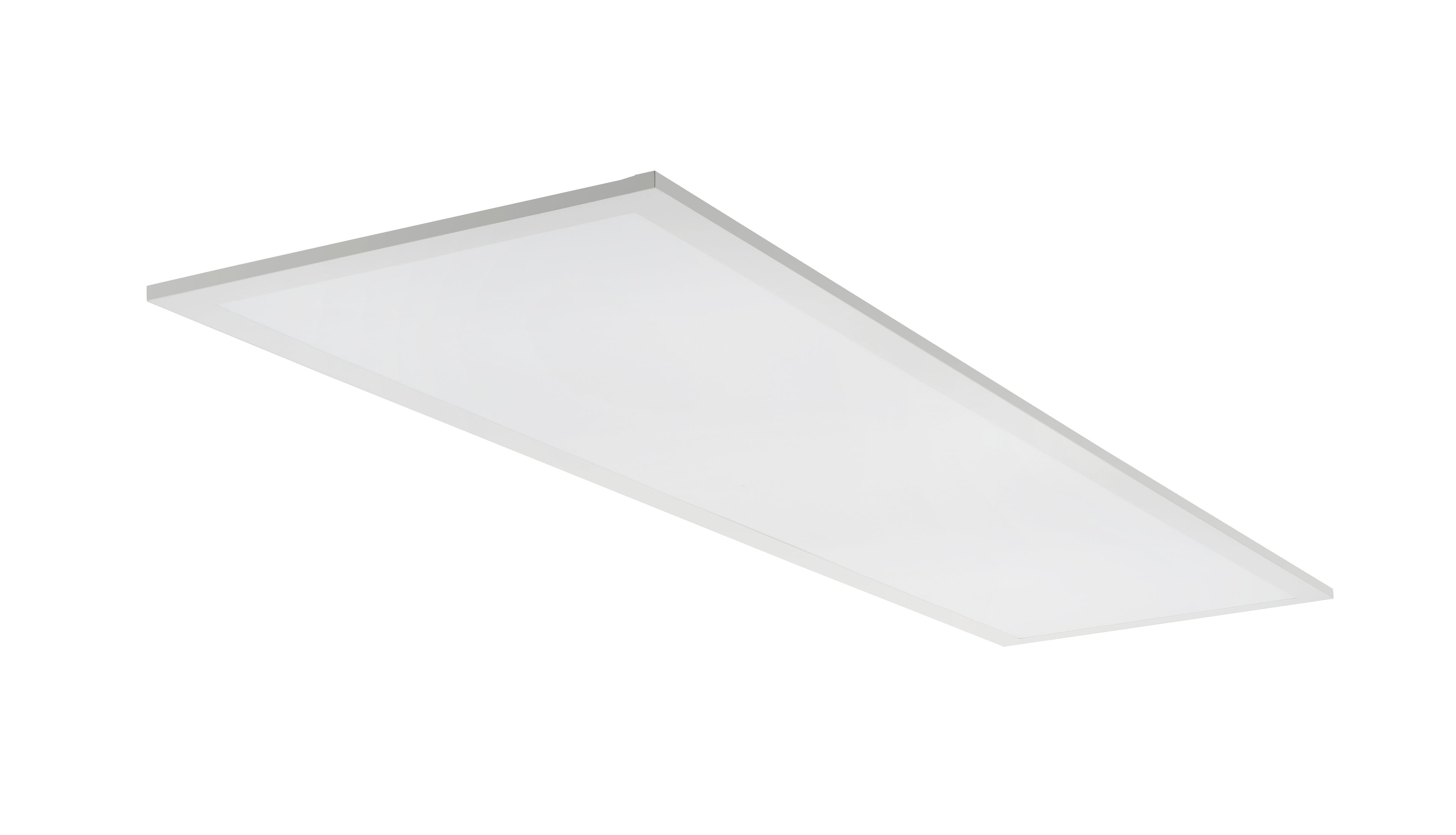

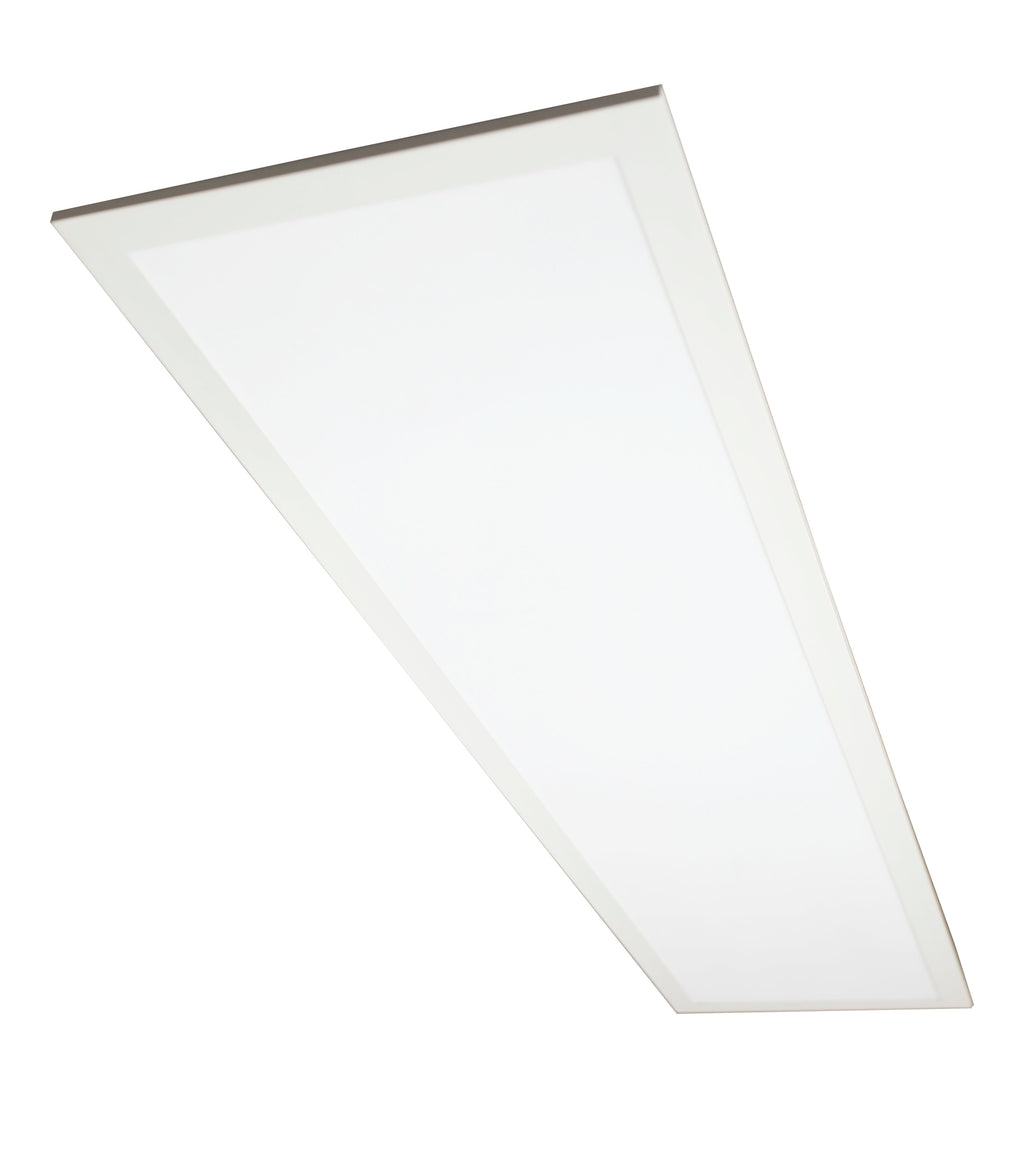

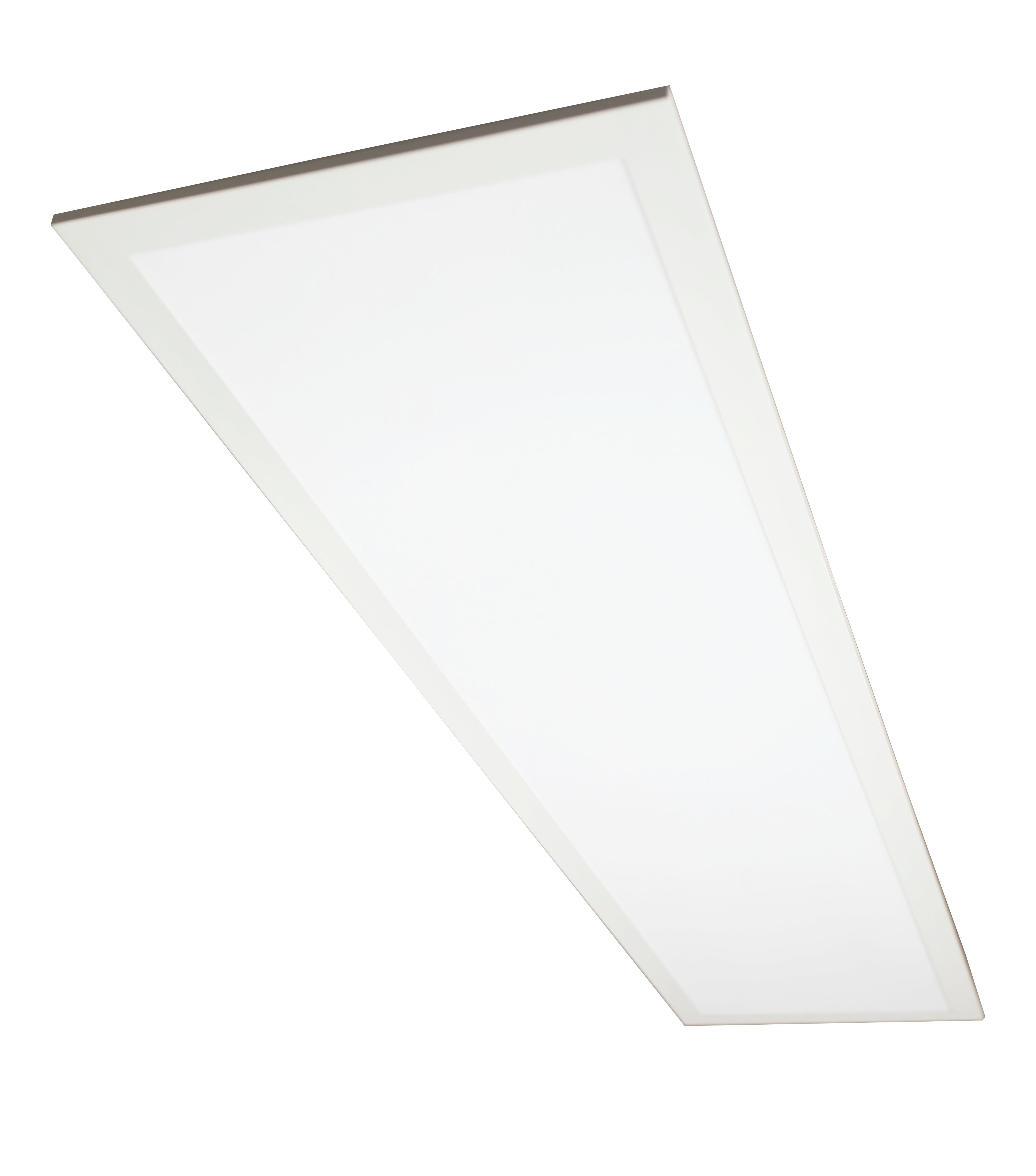

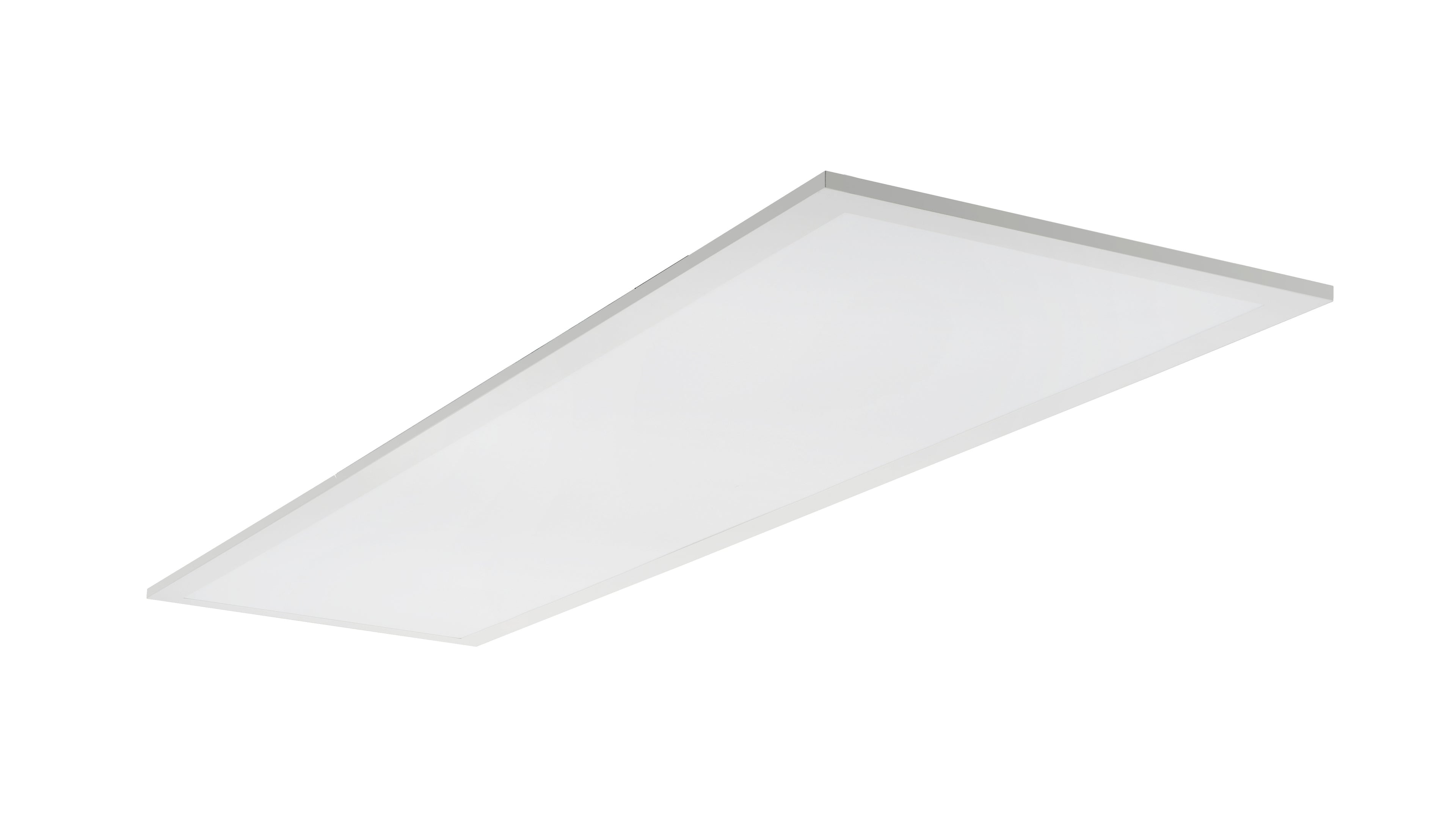

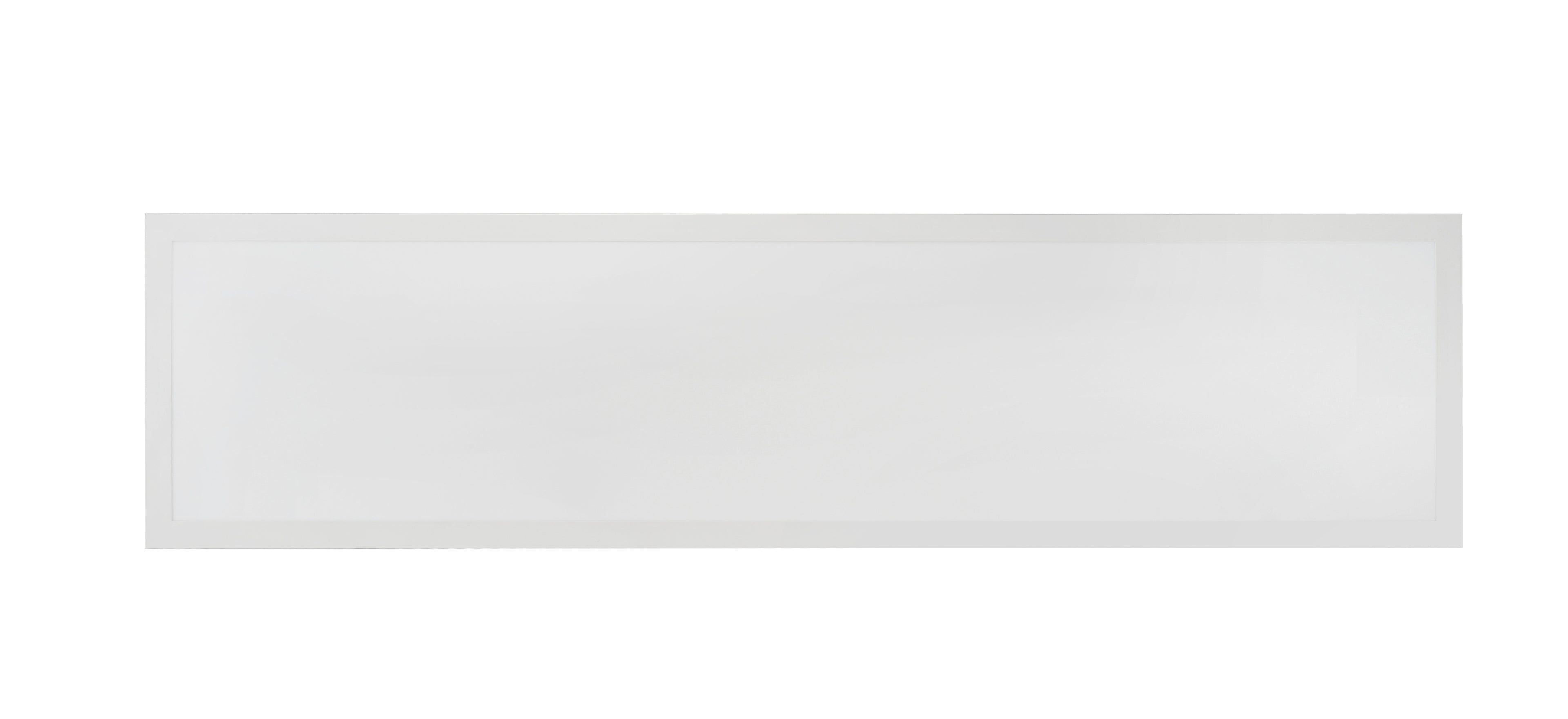

GradeONE 1X4 35W Selectable LED Flat Panel — 35K/40K/50K — Up To 4,000 Lumens — Optional Battery Backup — Dimmable
  • GradeONE 1X4 35W Selectable LED Flat Panel — 35K/40K/50K — Up To 4,000 Lumens — Optional Battery Backup — Dimmable
  • GradeONE 1X4 35W Selectable LED Flat Panel — 35K/40K/50K — Up To 4,000 Lumens — Optional Battery Backup — Dimmable, image 2
  • GradeONE 1X4 35W Selectable LED Flat Panel — 35K/40K/50K — Up To 4,000 Lumens — Optional Battery Backup — Dimmable, image 3
  • GradeONE 1X4 35W Selectable LED Flat Panel — 35K/40K/50K — Up To 4,000 Lumens — Optional Battery Backup — Dimmable, image 4
  • GradeONE 1X4 35W Selectable LED Flat Panel — 35K/40K/50K — Up To 4,000 Lumens — Optional Battery Backup — Dimmable, image 5
1X4 35W Selectable LED Flat Panel — 35K/40K/50K — Up To 4,000 Lumens — Optional Battery Backup — Dimmable
SKU
FB1X4A40LWDULSCTWH

1X4 35W Selectable LED Flat Panel — 35K/40K/50K — Up To 4,000 Lumens — Optional Battery Backup — Dimmable

Lumens
Up to 4,000 lm Selectable
CCT
3500K–5000K Selectable
Voltage
120-277V
Battery Backup
Optional
$44.99
$44.99
Ships in 3-5 Business Days
Battery Backup

Qty
Talk to an Expert 833-730-3259

Downloads

Spec Sheet Install Guide IES File
The GradeONE 35W Selectable 1x4 LED Flat Panel offers adjustable color temperatures (3500K, 4000K, 5000K) and up to 4,000 lumens, making it suitable for varied commercial lighting needs. This ceiling or suspended mount fixture supports 120-277V input, 0-10V dimming, and is rated for damp locations. Constructed with a steel housing and PMMA lens in white, it is cULus listed and includes a 5-year limited warranty.

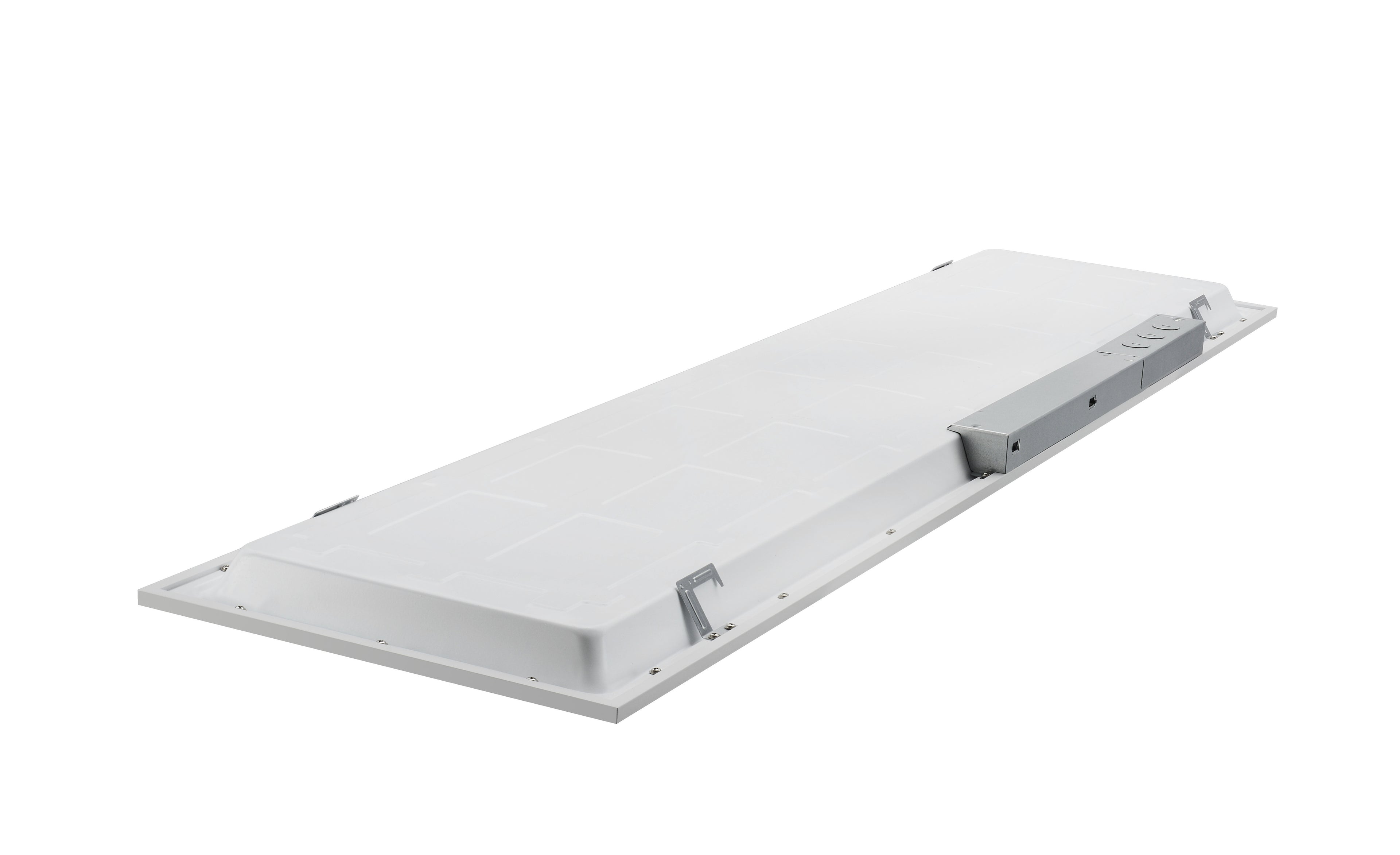

Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets. For mounting in plaster or other hard ceiling, see Mounting Kits.
Standard earthquake clips provide secure installation in grid ceilings.

Selectable Lumens

2600 / 3400 / 4000 lm

Selectable CCT

3500K / 4000K / 5000K

120-277V

Input voltage

Battery Backup

Optional

Certifications

  • cULus Listed
  • FCC
  • Damp Location
  • 120V–277V
  • 0–10V dimmable
  • CCT and wattage selectable
  • 80+ CRI
  • 5 year warranty

Specifications

Series
FB2x2A
Wattage
20, 28, 35 (Selectable)
Max Wattage
35
CCT
3500K, 4000K, 5000K (Selectable)
Lumens
2600, 3400, 4000 (Selectable)
Max Lumens
4000
CRI
80
Voltage
120-277V
Beam Angle
115
Finish
White
Housing
Steel
Lens Type
PMMA
Mount
Ceiling Mount, Suspended Mounting
Mounting Height
7' to 10'
Dimmable
Dimming leads AVAILABLE for use in the field
Dimming Type
0-10V
Environmental Rating
Damp Location
Operating Temp
-20°C to 40°C (-4°F to 104°F)
Surge Protection
1kV
Power Factor
>0.9 at full load
THD
<20% at full load
L70 Hours
144000
Safety Cert
cULus
FCC
FCC Part 15, Subpart B, Class B
Fixture Height
1.5
Fixture Width
11.8
Fixture Length
47.7
Fixture Weight
6.0
Warranty
5-Year Limited Warranty
Shipping
Ships in 3-5 Business Days
