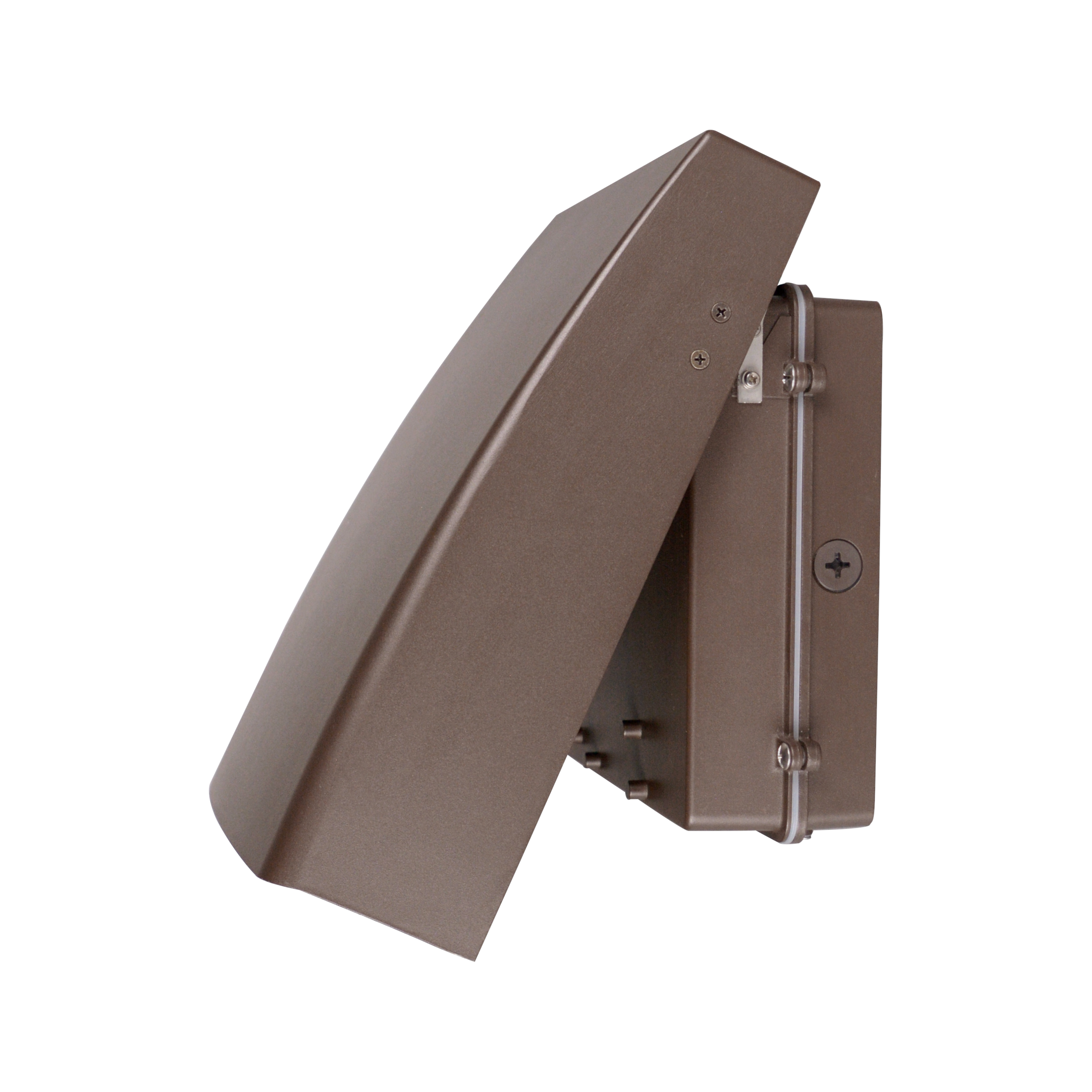

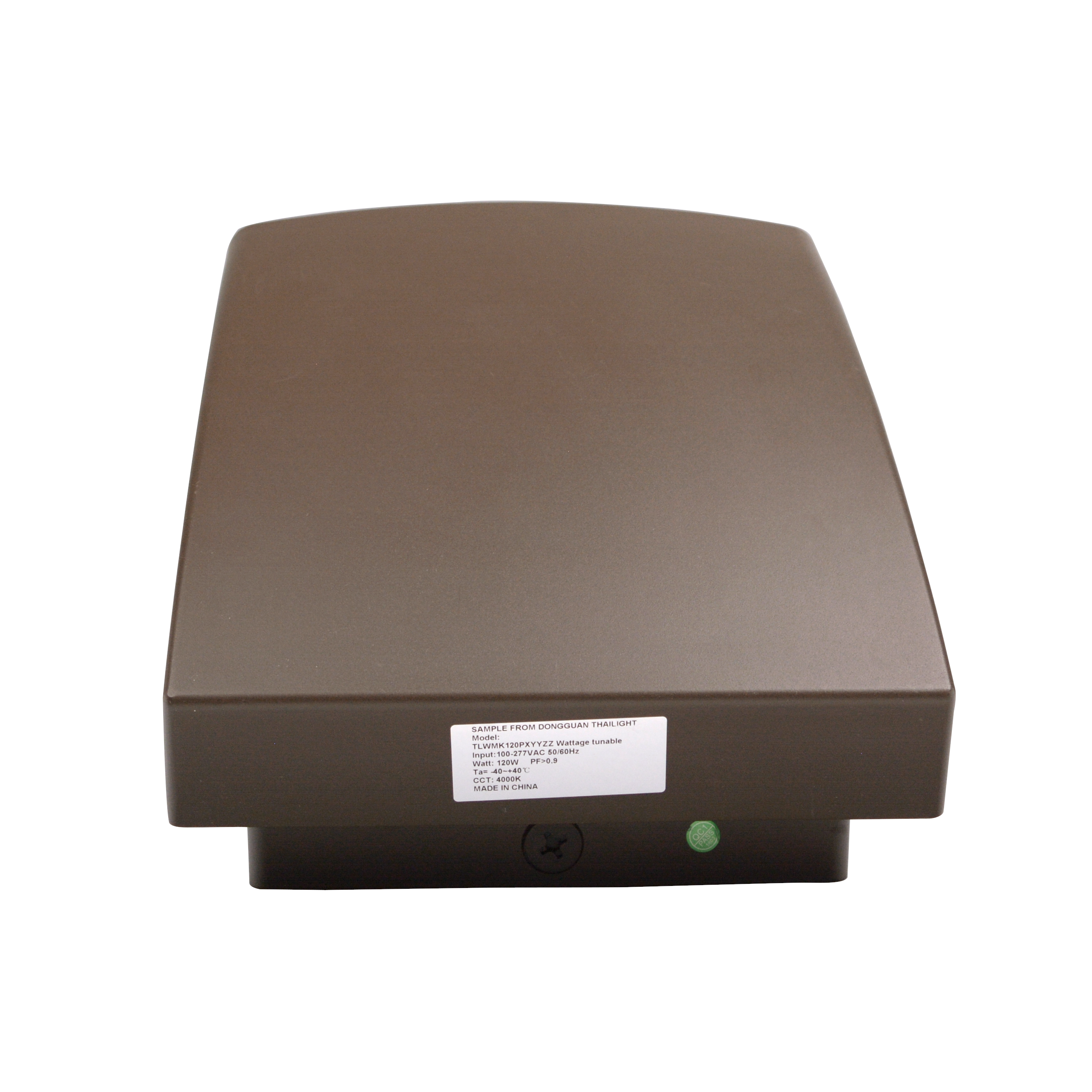

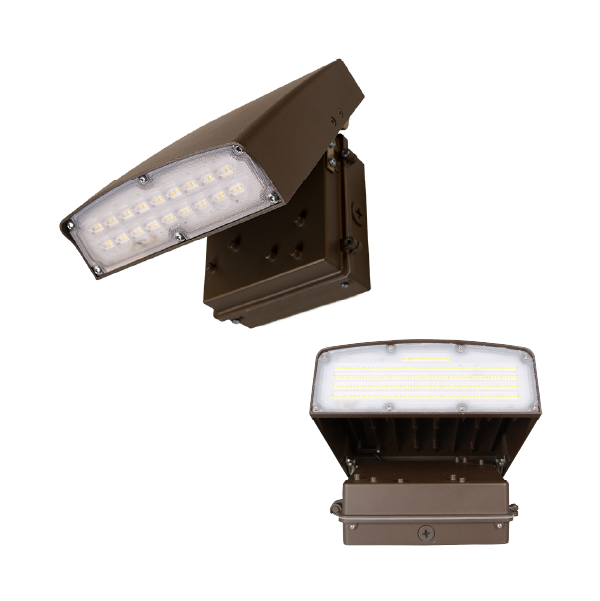

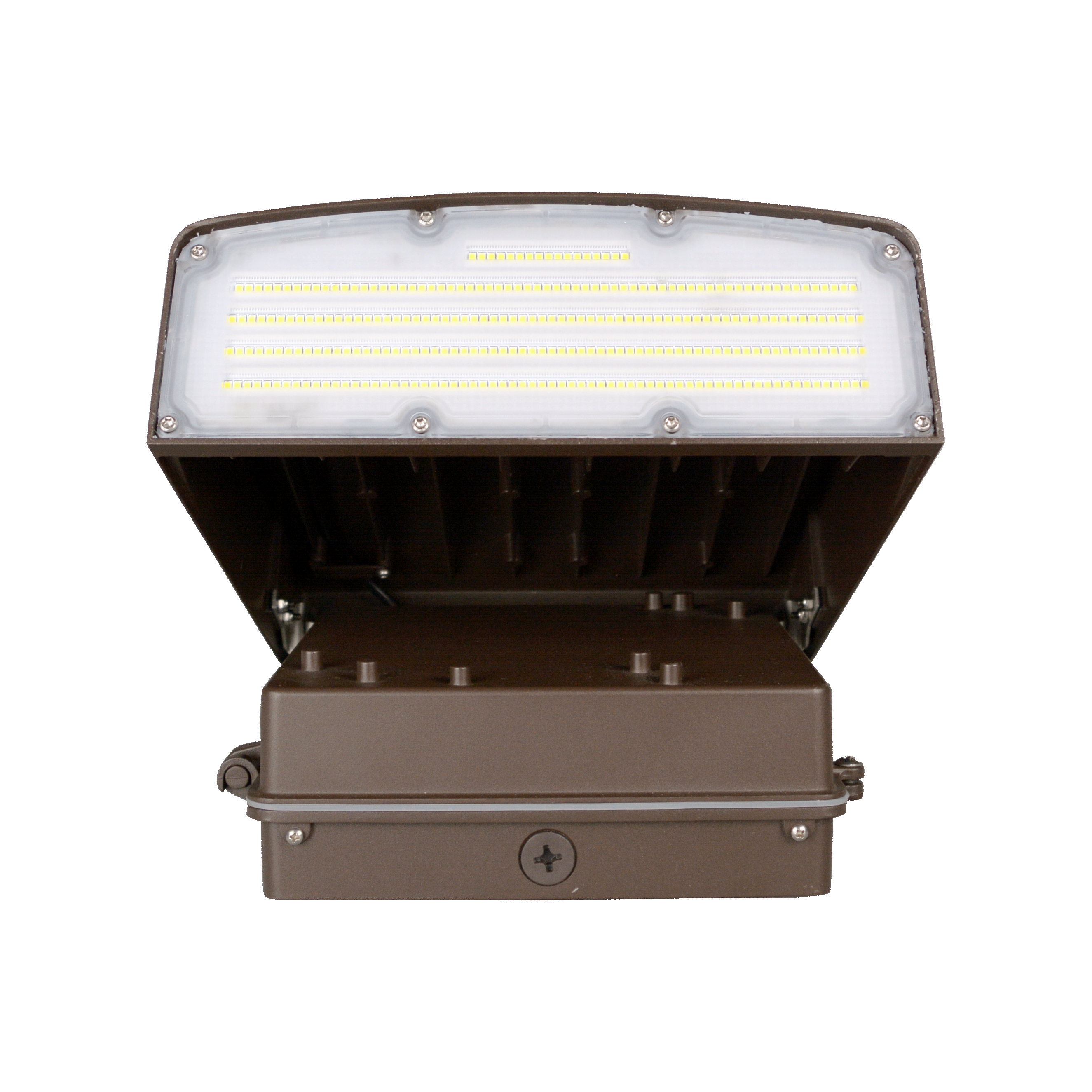

45W LED Wall Mount Fixture
$109.99
Sale price
$109.99
Regular price
Skip to product information
Same or Next Day Shipping
SKU
OSA3050MV50BZ
45W LED Wall Mount Fixture
- Lumens
- 6,191 lm
- CCT
- 5000K
- Voltage
- 120-277V
$109.99
Sale price
$109.99
Regular price
Qty
Downloads
Die-cast aluminum housing
(4) 1/2” knockouts for conduit feeder or sensors
Toolless separable hinged backplate for easy installation and maintenance
Adjustable range of 0° to 90°
UV- and fire-resistant lens
(4) 1/2” knockouts for conduit feeder or sensors
Toolless separable hinged backplate for easy installation and maintenance
Adjustable range of 0° to 90°
UV- and fire-resistant lens
3x Wire Nuts
Fixed Lumens
6191 lm
Fixed CCT
5000K
120-277V
Input voltage
Certifications
Specifications
Series
OSA3
Wattage
45 (Fixed)
Max Wattage
45
CCT
5000K (Fixed)
Lumens
6191 (Fixed)
Max Lumens
6191
CRI
70
Voltage
120-277V
Beam Angle
112.7°
Finish
Bronze
Housing
Die-Cast Aluminum
Lens Type
PMMA
Mount
Wall Mount
Dimmable
Dimming leads AVAILABLE for use in the field
Dimming Type
0-10V
Environmental Rating
Wet Location
IP Rating
IP65
Operating Temp
-40°C to 40°C(-40°F to 104°F)
Power Factor
>0.9 at full load
THD
<20% at full load
L70 Hours
54000
Safety Cert
cULus
DLC
DLC v5.1 Premium
FCC
FCC Part 15, Subpart B, Class B
Fixture Height
4.5
Fixture Width
7.6
Fixture Length
11.0
Fixture Weight
18.15
Warranty
5-Year Limited Warranty
Shipping
Same or Next Day Shipping
