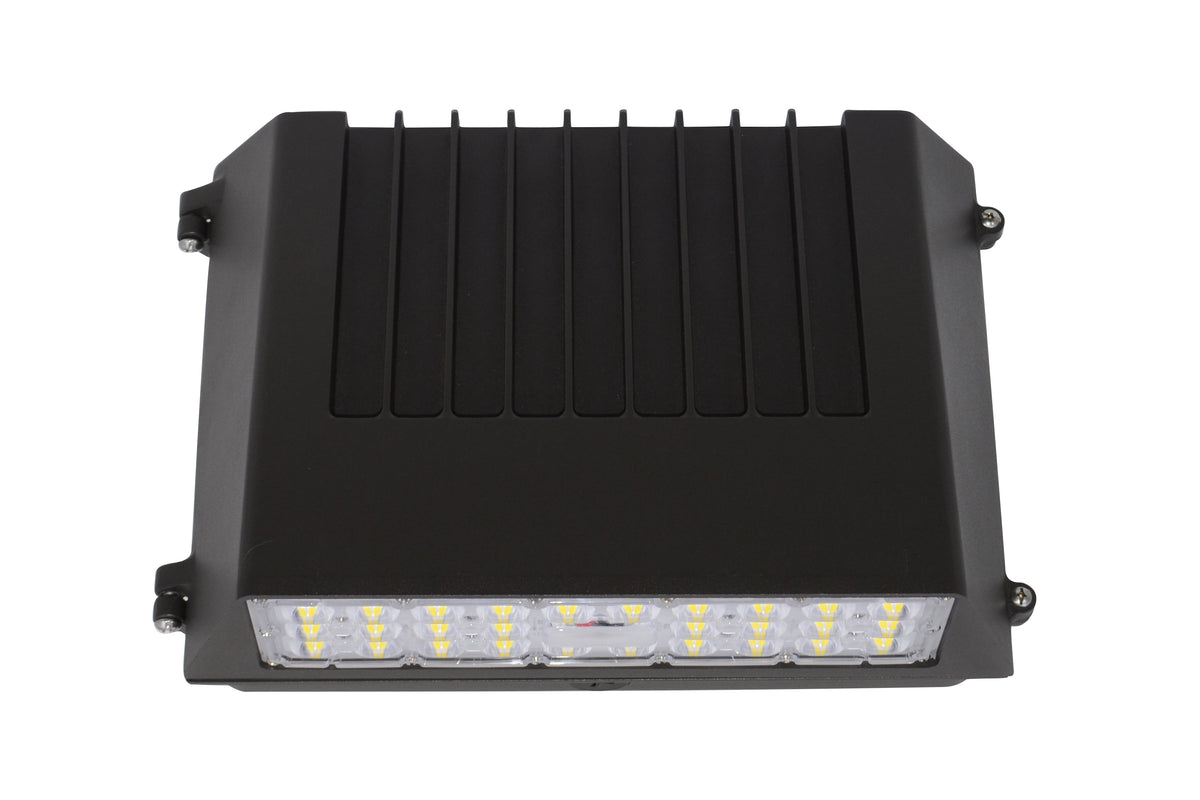

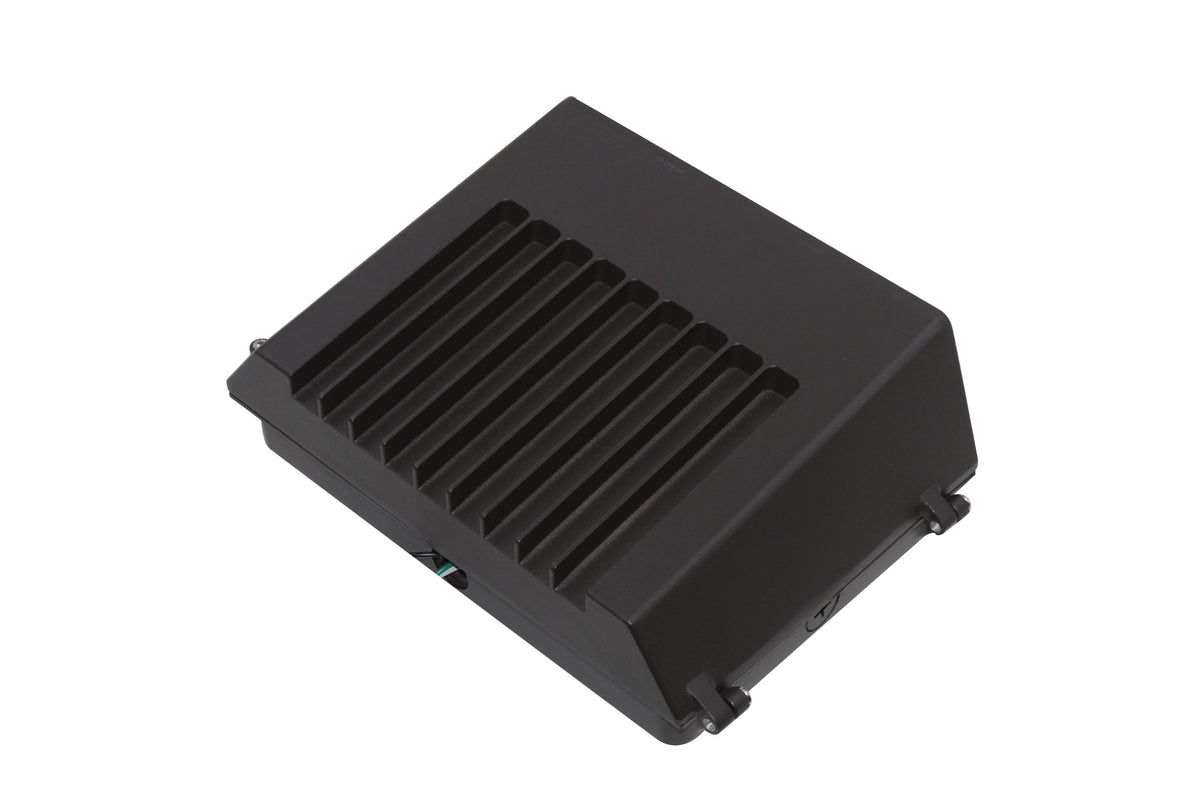

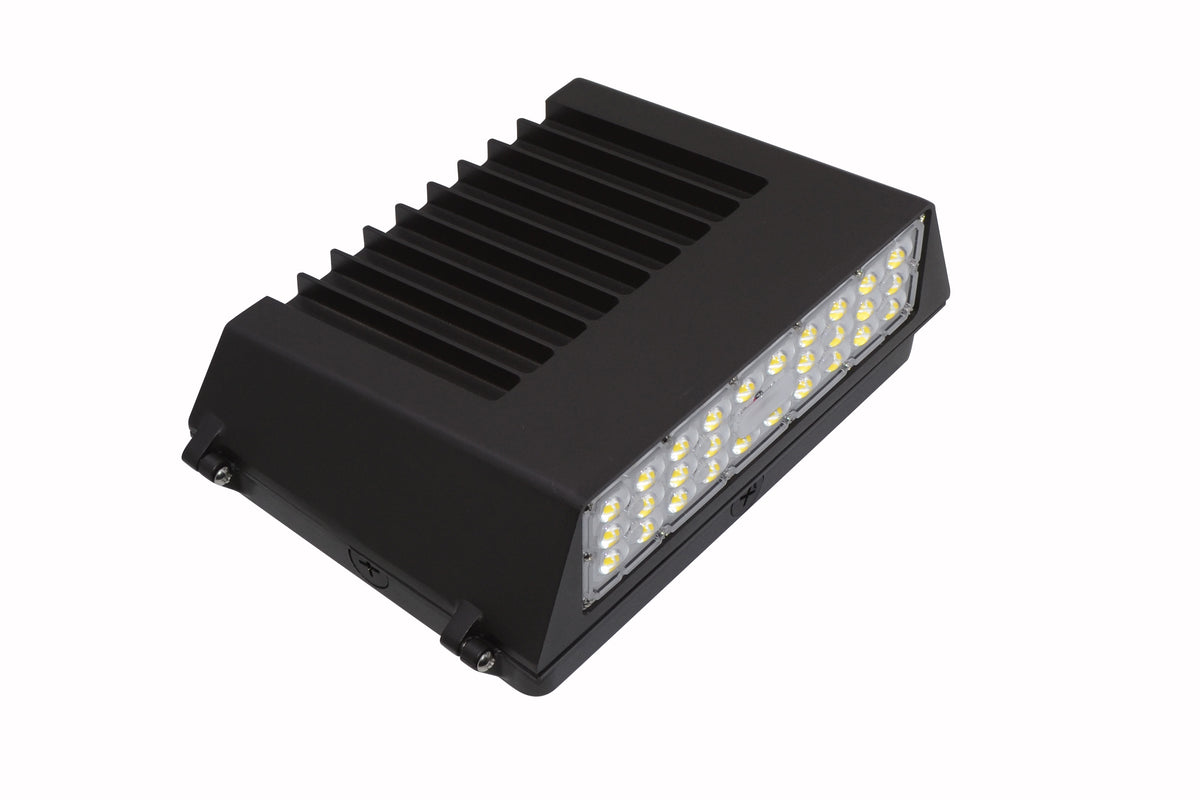

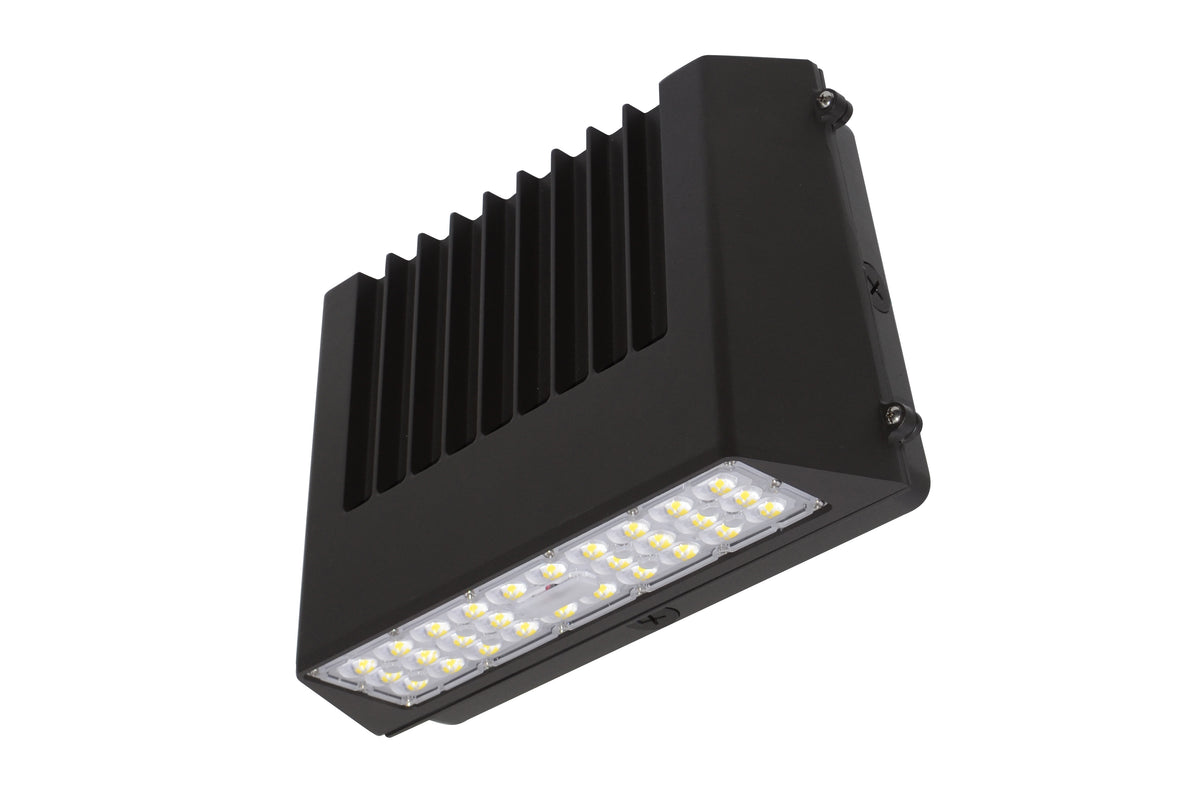

55W Selectable LED Cutoff Wall Pack
$0.00
Sale price
$0.00
Regular price
Retail Price
Contractor Price
(Log in to view contractor pricing)
Qty
Downloads
A durable, energy-efficient LED cutoff wall pack designed for commercial and exterior lighting applications. It features a rugged die-cast aluminum housing, high-output LED technology, and Type IV distribution for effective area and perimeter illumination. Available in multiple wattages and 3000K, 4000K, or 5000K color temperatures, it provides reliable, low-maintenance performance for building exteriors, walkways, and security lighting.
Selectable Wattage
25| 45| 55W
120-277V
Input voltage
UL
Safety listed
Certifications
Specifications
Series
WPCB
Wattage
25| 45| 55 (Selectable)
Max Wattage
55
CCT
3000K|4000K|5000 (Selectable)
Lumens
6896| 7404| 7266 (Selectable)
Max Lumens
7266
CRI
70
Voltage
120-277V
Light Distribution
Type IV
Finish
Bronze
Housing
Die-Cast Aluminum
Lens Type
Polycarbonate
Mount
Wall Mount
Mounting Height
15"
Dimmable
Dimming leads NOT available for use in the field
Dimming Type
0-10V
Sensor
Integrated Photocell
Environmental Rating
Wet Location
IP Rating
IP65
Operating Temp
-40°C to 40°C (-40°F to 104°F)
Surge Protection
4kV
Power Factor
>0.9 at full load
THD
<20% at full load
L70 Hours
50000
Safety Cert
UL
FCC
FCC Part 15, Subpart B, Class B
RoHS
Yes
Fixture Height
5.91
Fixture Width
9.45
Fixture Length
14.17
Fixture Weight
6.55
Warranty
5-Year Limited Warranty
