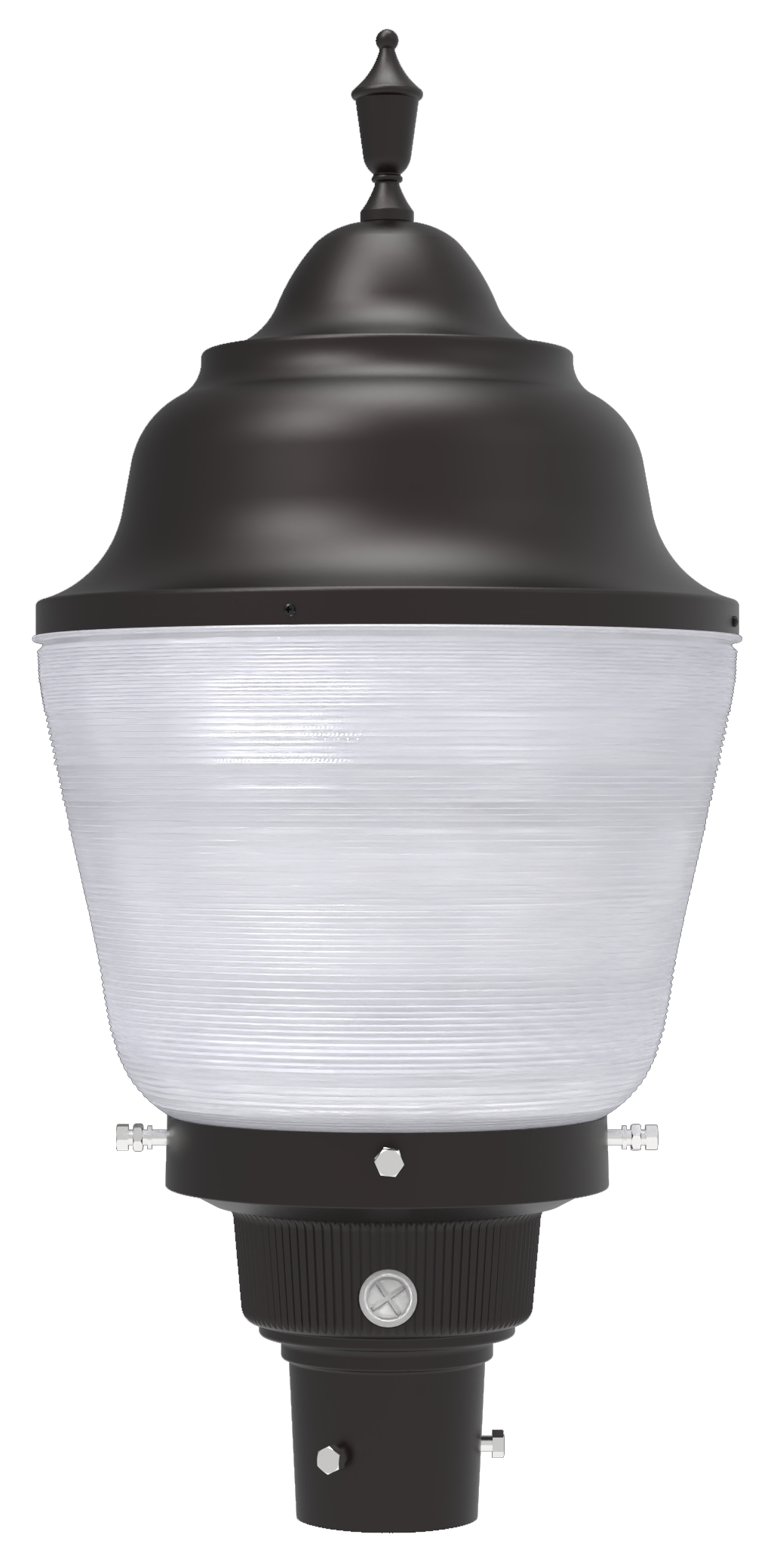

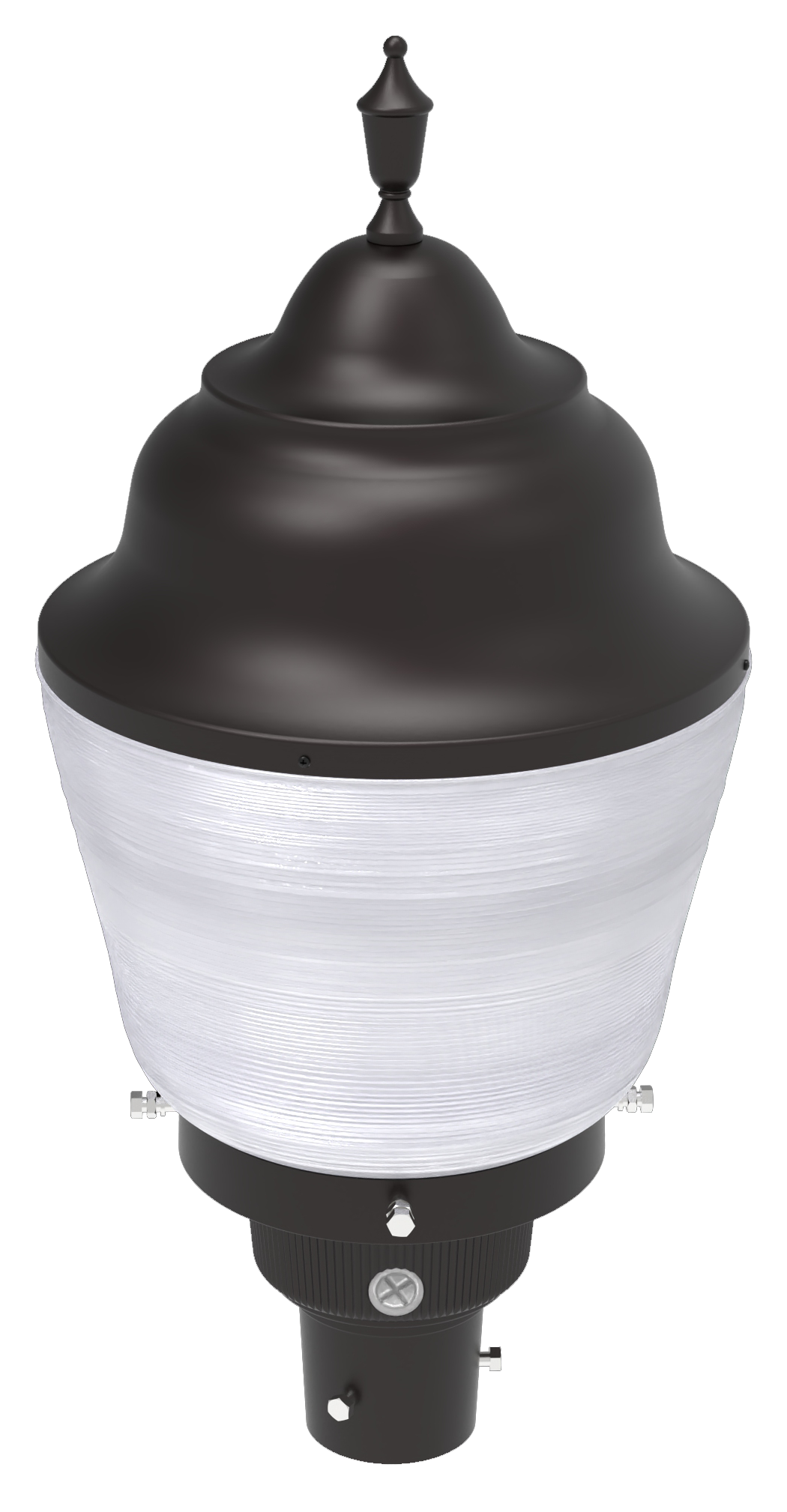

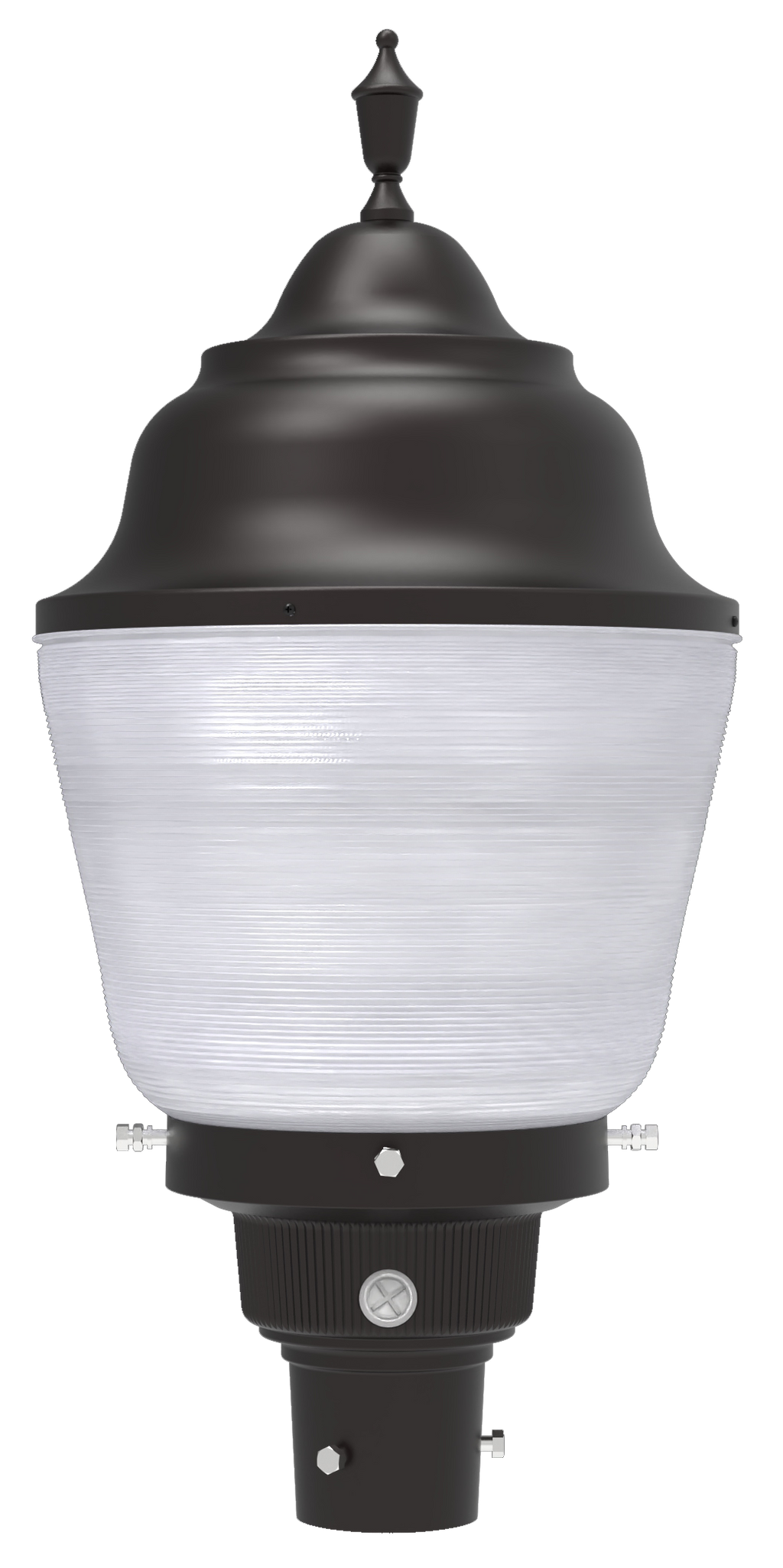

70W Selectable LED Acorn Post-Top — Type V — Black Cap
$449.99
Sale price
$449.99
Regular price
Skip to product information
Ships in 3-5 Business Days
SKU
PTAAS7LT5SCTBKPC
70W Selectable LED Acorn Post-Top — Type V — Black Cap
- Lumens
- Up to 6,840 lm Selectable
- CCT
- 3000K–5000K Selectable
- Voltage
- 120-277V
- Sensor
- Integrated Photocell
$449.99
Sale price
$449.99
Regular price
Qty
Downloads
The GradeONE 70W Selectable LED Acorn Post-Top (PTA Series) delivers up to 6,840 lumens with selectable wattage and color temperature (3000K, 4000K, 5000K), supporting 120-277V installations. Designed for outdoor post-top applications, it features a Type V distribution, durable die-cast aluminum housing with black finish, wet location rating, 0-10V dimming, and cULus certification. Side-access controls simplify onsite configuration.
Side access to the FAO controller allows for the end-user to easily choose from different wattages and CCTs. Optional Photocontrol.
Selectable Lumens
2960 / 4930 / 6840 lm
Selectable CCT
3000K / 4000K / 5000K
120-277V
Input voltage
Integrated Photocell
Sensor
Certifications
Specifications
Series
PTA
Wattage
30, 50, 70 (Selectable)
Max Wattage
70
CCT
3000K, 4000K, 5000K (Selectable)
Lumens
2960, 4930, 6840 (Selectable)
Max Lumens
6840
CRI
80
Voltage
120-277V
Light Distribution
Type V
Finish
Black
Housing
Die-Cast Aluminum
Lens Type
Acrylic
Mounting Height
10' to 12'
Dimmable
Dimming leads AVAILABLE for use in the field
Dimming Type
0-10V
Sensor
Integrated Photocell
Environmental Rating
Wet Location
IK Rating
IK08
Operating Temp
-40˚C to 40˚C (-40˚F to 104˚F)
Surge Protection
6kV
Power Factor
>0.9 at full load
THD
<20% at full load
L70 Hours
50000
Safety Cert
cULus
FCC
FCC Part 15, Subpart B, Class A
RoHS
Yes
Fixture Height
30.4
Fixture Diameter
14.7
Fixture Weight
12.2
Warranty
5-Year Limited Warranty
Shipping
Ships in 3-5 Business Days
