389W Selectable LED Linear High Bay — Wide, 120-277V
Hot Deal
SKU
HBLA60LMDULSCTWH

389W Selectable LED Linear High Bay — Wide, 120-277V

Lumens
Up to 60,000 lm Selectable
CCT
4000K / 5000K Selectable
Voltage
120-277V
$199.99
$199.99
Retail Price
Save up to 25% with Trade Pricing
Ships in 1-3 Business Days
Battery Backup

Qty
Talk to an Expert 833-730-3259

Downloads

Spec Sheet Install Guide IES File
Adjustable lumen output and color temperature (CCT)
Four selectable lumen packages: 12,000, 40,000, 50,000, and 60,000 lumens
Emergency driver option available
Sensor-ready for enhanced control and energy savings (sensor and remote sold separately)
Chain-mount kits (includes v-hooks , 1-meter long chain) are standard - come with the fixture
• Optional surface mounting kit provides attachment to solid surfaces*.
• Optional pendant mounting kit provides pendant attachment to 1/2” rigid
conduit*.
• Optional cable mount kit provides luminaire suspension."
Chain-mount kits (includes v-hooks , 1-meter long chain) are standard.

Key Features

  • cULus Listed
  • FCC
  • Damp Location
  • 120V–277V
  • 0–10V dimmable
  • CCT and wattage selectable
  • 80+ CRI
  • 5 year warranty

Compatible Accessories

In Stock

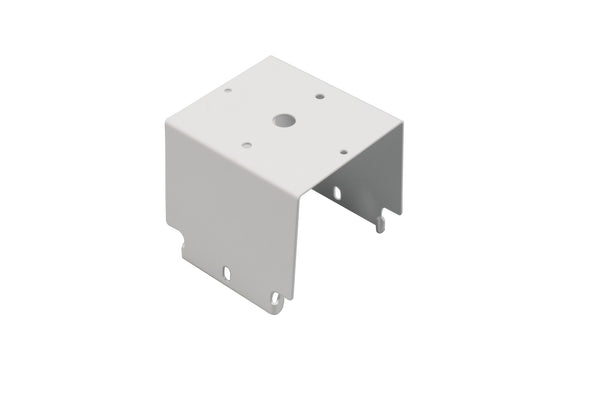

GradeONE Surface Mount Kit for Fhbsr- all Models*

Surface Mount Kit for Fhbsr- all Models*

HBSR-SMK
Explore Product

Specifications

Series
HBLA
Wattage
225, 300, 389 (Selectable)
Max Wattage
389
CCT
4000K, 5000K (Selectable)
Lumens
36000, 48000, 60000 (Selectable)
Max Lumens
60000
CRI
80
Voltage
120-277V
Finish
White
Housing
Die-Cast Aluminum
Lens Type
Polycarbonate
Mount
Suspended Mounting, Ceiling Mount, Pendant Mount
Mounting Height
36' to 60'
Dimmable
Dimming leads AVAILABLE for use in the field
Dimming Type
0-10V
Environmental Rating
Damp Location
Operating Temp
-40°C to 50°C (-40°F to 122 °F)
Surge Protection
6kV
Power Factor
> 0.9 at full load
THD
<20% at full load
L70 Hours
135000
Safety Cert
cULus
FCC
FCC Part 15, Subpart B, Class A
Fixture Height
2.6
Fixture Width
11.0
Fixture Length
30.7
Fixture Weight
9.25
Warranty
5-Year Limited Warranty
Shipping
Ships in 1-3 Business Days
