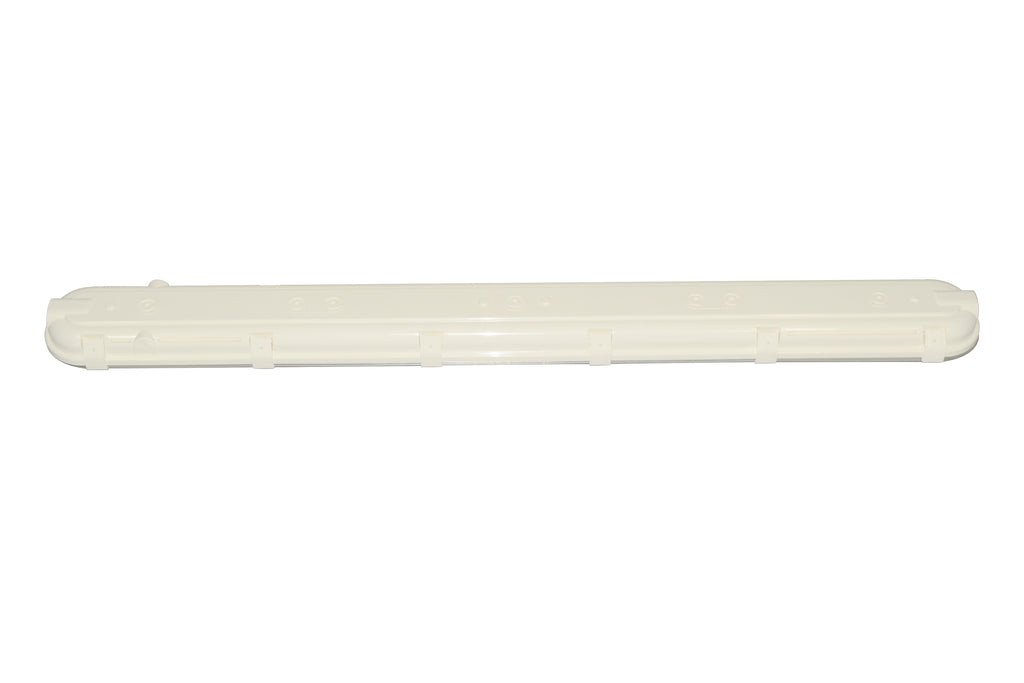

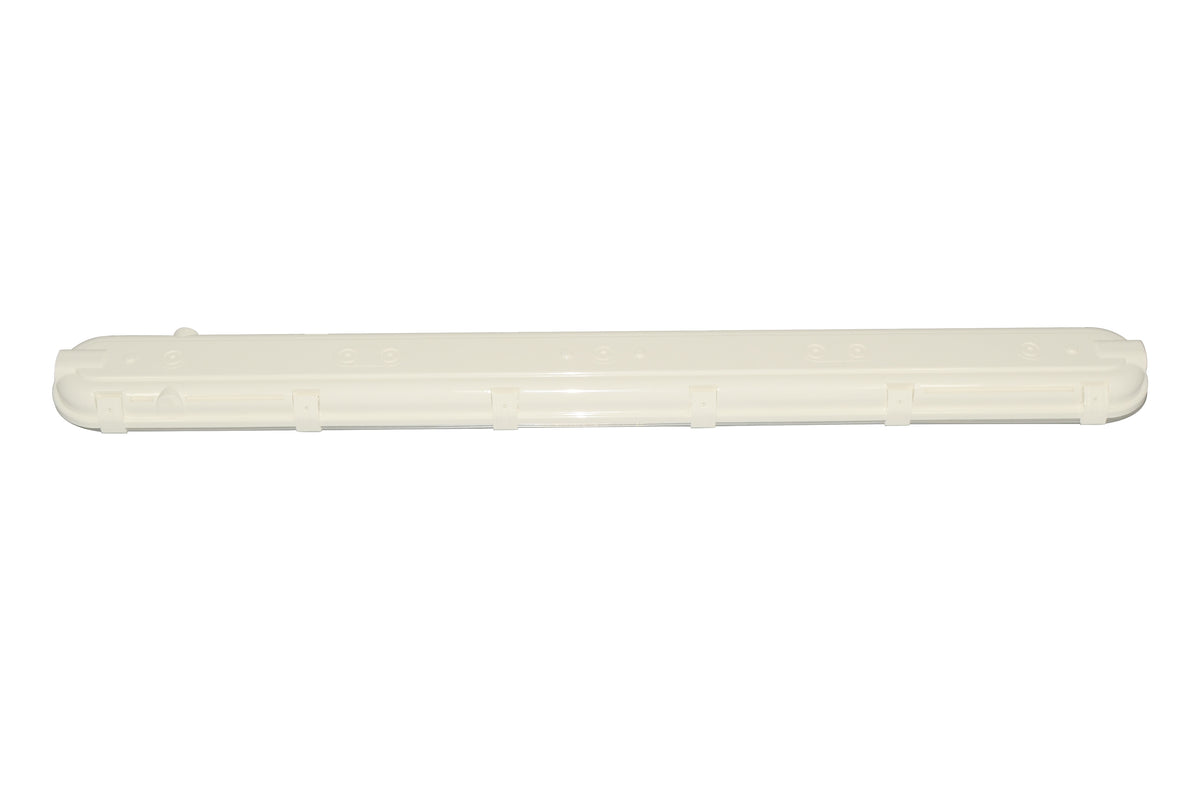

A GradeONE 23W LED Vapor Tight Linear ceiling light fixture, featuring a white, elongated design with a rounded frosted cover, displayed against a plain white background.

4' 58W Selectable LED Linear Vapor Tight — 30K/40K/50K — Up To 9,100 Lumens — Motion Sensor — Optional Battery Backup

No / No
$89.99
$89.99
Home
4' 58W Selectable LED Linear Vapor Tight — 30K/40K/50K — Up To 9,100 Lumens — Motion Sensor — Optional Battery Backup
Skip to product information
A GradeONE 23W LED Vapor Tight Linear ceiling light fixture, featuring a white, elongated design with a rounded frosted cover, displayed against a plain white background.
  • A GradeONE 23W LED Vapor Tight Linear ceiling light fixture, featuring a white, elongated design with a rounded frosted cover, displayed against a plain white background.
  • A GradeONE 34W Selectable LED Vapor Tight Linear light fixture with a white, rectangular design and a plastic cover, suitable for ceiling or wall mounting, is shown on a plain white background.
  • The GradeONE 23W LED Vapor Tight Linear, a long, white, rectangular plastic light fixture cover, is shown against a plain white background.
4' 58W Selectable LED Linear Vapor Tight — 30K/40K/50K — Up To 9,100 Lumens — Motion Sensor — Optional Battery Backup
SKU
LVT4AS89LULSCTWH

4' 58W Selectable LED Linear Vapor Tight — 30K/40K/50K — Up To 9,100 Lumens — Motion Sensor — Optional Battery Backup

Lumens
Up to 9,100 lm Selectable
CCT
3000K–5000K Selectable
Voltage
120-277V
IP Rating
IP66
$89.99
$89.99
Ships in 1-3 Business Days
Motion Sensor
Battery Backup

Qty
Talk to an Expert 833-730-3259

Downloads

Spec Sheet Install Guide IES File
The GradeONE 58W Selectable LED Linear Vapor Tight is engineered for electrical contractors seeking reliable and efficient lighting solutions for challenging environments. Categorized under Vapor Tight Lights, this fixture offers a selectable wattage up to 58W and delivers a powerful 9,166 lumens with selectable color temperatures of 3000K, 4000K, and 5000K. Featuring a durable white finish and a frosted polycarbonate lens, this fixture ensures efficient and diffuse illumination, ideal for wet locations.

The cULus safety certification and 5-year limited warranty provide added peace of mind, while the 4kV surge protection safeguards the luminaire against power fluctuations. Installation is made easy with continuous poured gaskets and 6-8 acetal plastic latches, ensuring a tight waterproof seal. Additional features include straps that prevent the light engine from falling, quick-release screws for fast setup, and optional accessories like an emergency driver and an internally mounted occupancy sensor. Choose GradeONE’s LED Linear Vapor Tight for a versatile, robust, and energy-efficient lighting option perfect for demanding job sites.
Surface

Selectable Lumens

4700 / 7100 / 9100 lm

Selectable CCT

3000K / 4000K / 5000K

120-277V

Input voltage

IP66

IP rating

Certifications

  • cULus Listed
  • FCC
  • RoHS Compliant
  • Wet Location
  • IP66
  • 120V–277V
  • CCT and wattage selectable
  • 5 year warranty

Specifications

Series
LVT4A
Wattage
30, 45, 58 (Selectable)
Max Wattage
58
CCT
3000K, 4000K, 5000K (Selectable)
Lumens
4700, 7100, 9100 (Selectable)
Max Lumens
9100
CRI
70
Voltage
120-277V
Finish
White
Housing
Polycarbonate
Lens Type
Frosted Polycarbonate
Mount
Surface Mount
Dimmable
Dimming leads NOT available for use in the field
Sensor
Integrated Motion Sensor
Environmental Rating
Wet Location
IP Rating
IP66
Operating Temp
-40°C to 40°C (-40°F to 104°F)
Surge Protection
4kV
Power Factor
>0.9 at full load
THD
<20% at full load
L70 Hours
50000
Safety Cert
cULus
FCC
FCC Part 15, Subpart B, Class A
RoHS
Yes
Fixture Height
3.14
Fixture Width
4.92
Fixture Length
47.24
Fixture Weight
6.72
Warranty
5-Year Limited Warranty
Shipping
Ships in 1-3 Business Days
